HBL520P9W - Hubbell 20A 120-208V 4-Pole 5-Wire Watertight IEC Pin and Sleeve Plug

HBL520P9W

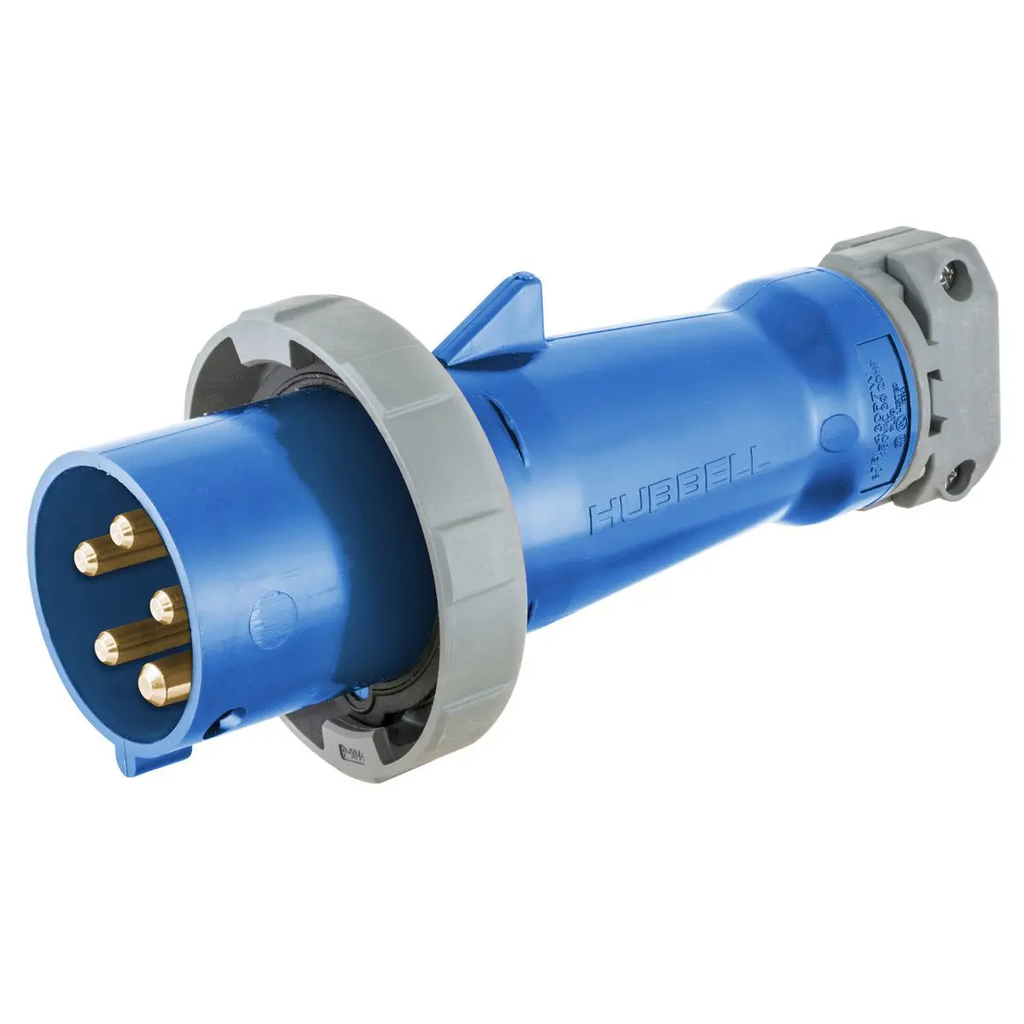

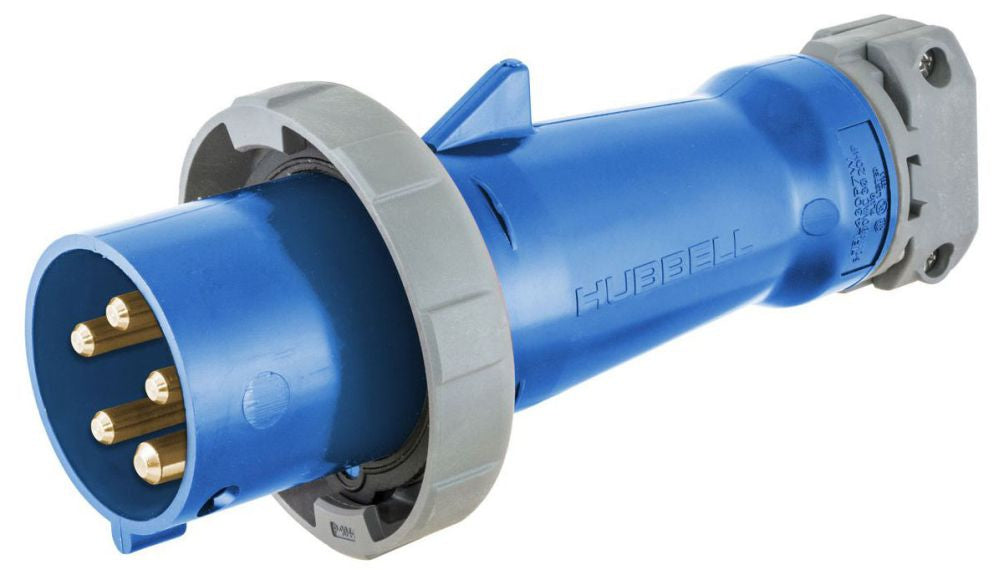

HBL520P9W is a Hubbell 20 Amp, 120-208 Volt, 4-Pole, 5-Wire watertight IEC pin and sleeve plug designed for heavy-duty industrial applications.This male plug features a rugged blue nylon housing with brass contacts, providing high resistance to electrical tracking and impact. It is rated for 3-phase 120/208V AC, supports wire sizes from 14 AWG to 10 AWG, and includes a heavy-duty external cord grip for superior strain relief. The device is UL Listed, CSA Certified, and meets NEC 430.109(F) requirements as an approved disconnecting means. It is non-NEMA rated and suitable for demanding North American markets.

Key Specifications
• Amperage: 20A
• Voltage: 120-208V AC, 3-Phase Wye
• Poles: 4
• Wires: 5
• Mounting Type: Cord Mounted
• Housing Material: Blue Nylon
• Contacts: Brass
• Watertight: Yes
• Certifications: UL Listed, CSA Certified
• Wire Size: #14 AWG to #10 AWG
• Industry Standard: IEC 60309
• Color: Blue

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL520P9W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Family : HBL
• Voltage : 120/208Y

Product Data

• UPC : 783585405353
• GTIN : 00783585405353
• Dimensions : 3.5 in Dia x 7.65 in L
• Weight : 5.19
