Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL520C7W

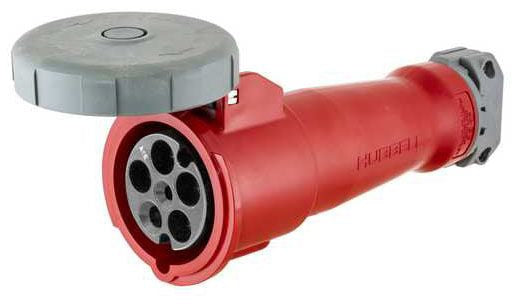

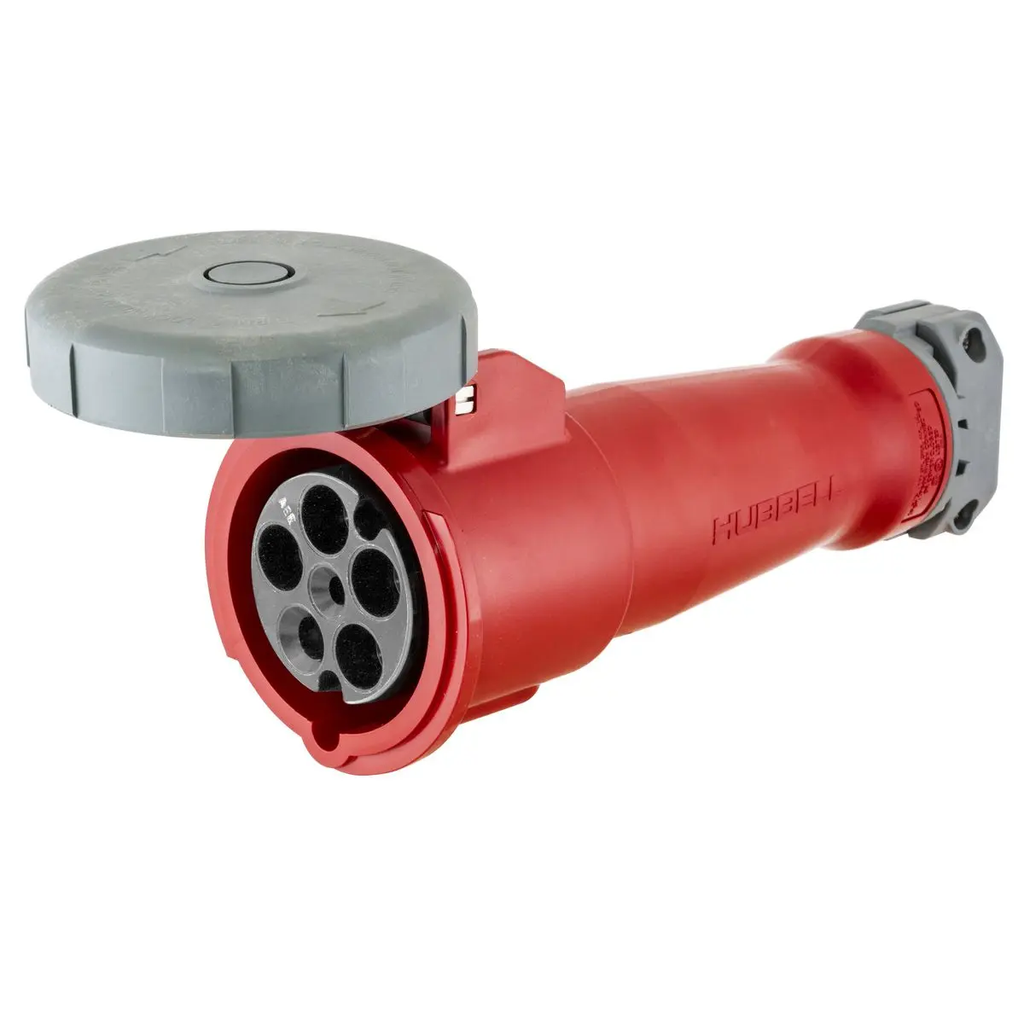

HBL520C7W is a heavy-duty watertight pin and sleeve connector designed for 20A 3-Phase Wye 277/480V AC applications, featuring a 4-pole, 5-wire grounding system for reliable industrial power connections. This connector is built with a red nylon housing and brass contacts, offering robust performance in demanding environments. It is certified for current interrupting at full rated current and features a dielectric voltage rating of 3000V AC. The polarized design ensures safe and secure mating, making it ideal for industrial and commercial installations.
- Part Number: HBL520C7W
- Manufacturer: Hubbell
- Amperage: 20A
- Voltage: 3-Phase Wye 277/480V AC
- Poles: 4
- Wires: 5
- Mounting Type: Pin and Sleeve
- Interrupt Rating: Full rated current
- Series/Frame: HBL Heavy Duty
- Dielectric Voltage: 3000V AC
- Certifications: UL Listed, CSA Certified
- Operating Temperature: -40°C to 75°C
Specifications
- Part Number: HBL520C7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 277/480Y
Product Data
- UPC : 783585405308
- GTIN : 00783585405308
- Dimensions : 8.54 in L x 3.94 in W
- Weight : 0.5
