Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
HBL5100R9W

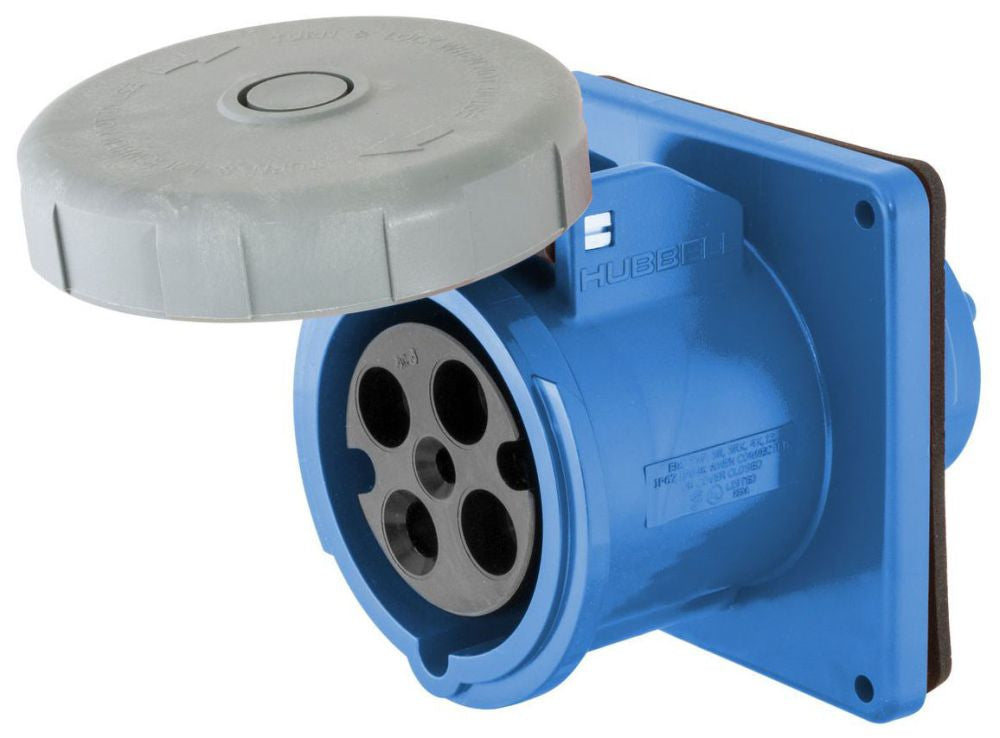

HBL5100R9W is a Hubbell industrial-grade, watertight IEC pin and sleeve receptacle designed for high-ampacity, three-phase power distribution in demanding environments.
This heavy-duty receptacle features a rugged, non-metallic housing, self-closing gasketed cover, and color-coded design for easy identification. It is certified for current interrupting at full rated current, offers superior moisture and environmental resistance, and is suitable for applications requiring reliable, watertight connections. The device is mechanically interlocked, includes pressure terminal screws for secure wiring, and is rated for continuous operation in harsh conditions.
-
Key Specifications
- Amperage: 100A
- Voltage: 3-Phase Y 120/208V AC
- Poles: 4-Pole
- Mounting Type: Screw mount, single flanged
- Interrupt Rating: Certified for current interrupting at full rated current
- Series/Frame: HBL Heavy Duty
- Trip Unit: Not applicable (receptacle only)
- Certifications: UL1682 listed, IP67, IEC 60309-1, RoHS compliant
- Wire Size: #3 AWG to #1/0 AWG
- Number of Wires: 5-Wire (including ground)
- Housing Material: Zytel 101 Nylon
- Operating Temperature: -40°C to 75°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL5100R9W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 120/208Y
Product Data
- UPC : 783585405124
- GTIN : 00783585405124
- Dimensions : 5-1/2 in L x 5-1/2 in W
- Weight : 0.5
