Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL5100R7W

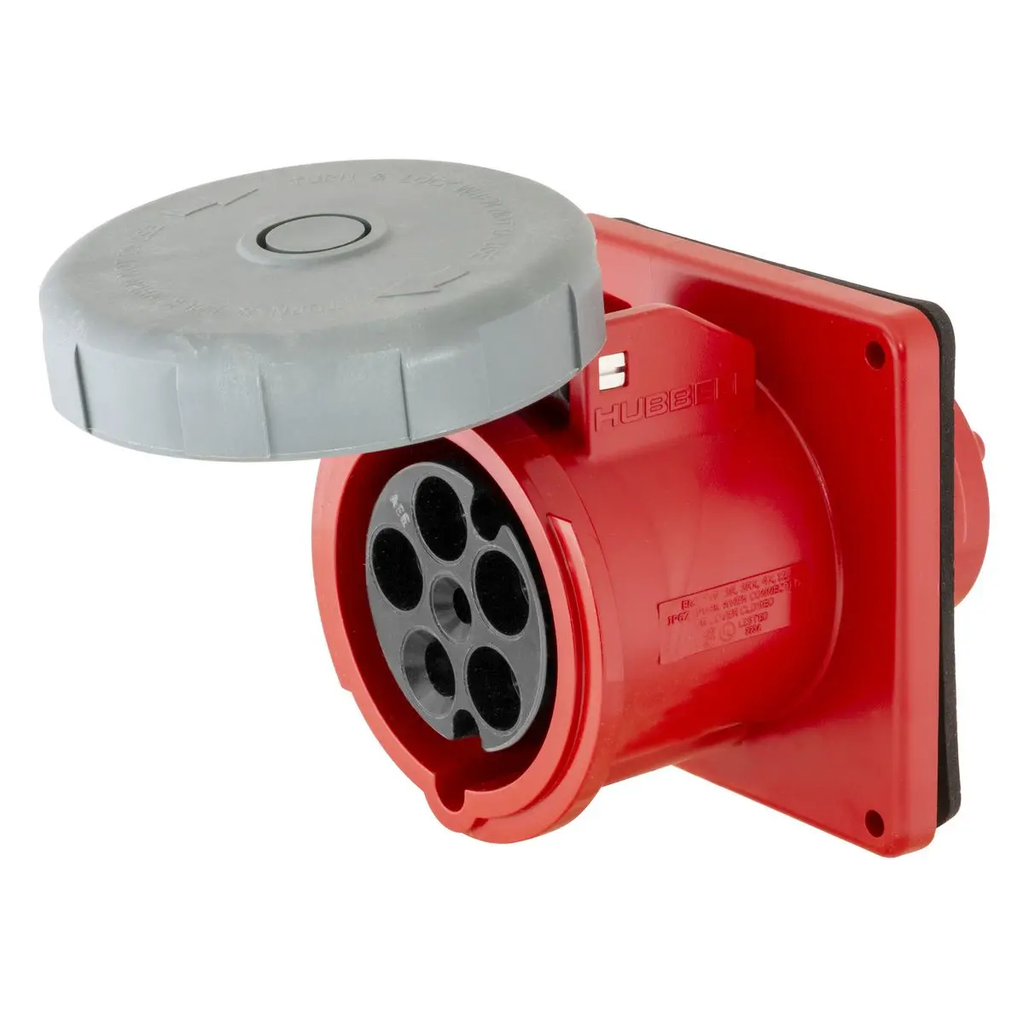

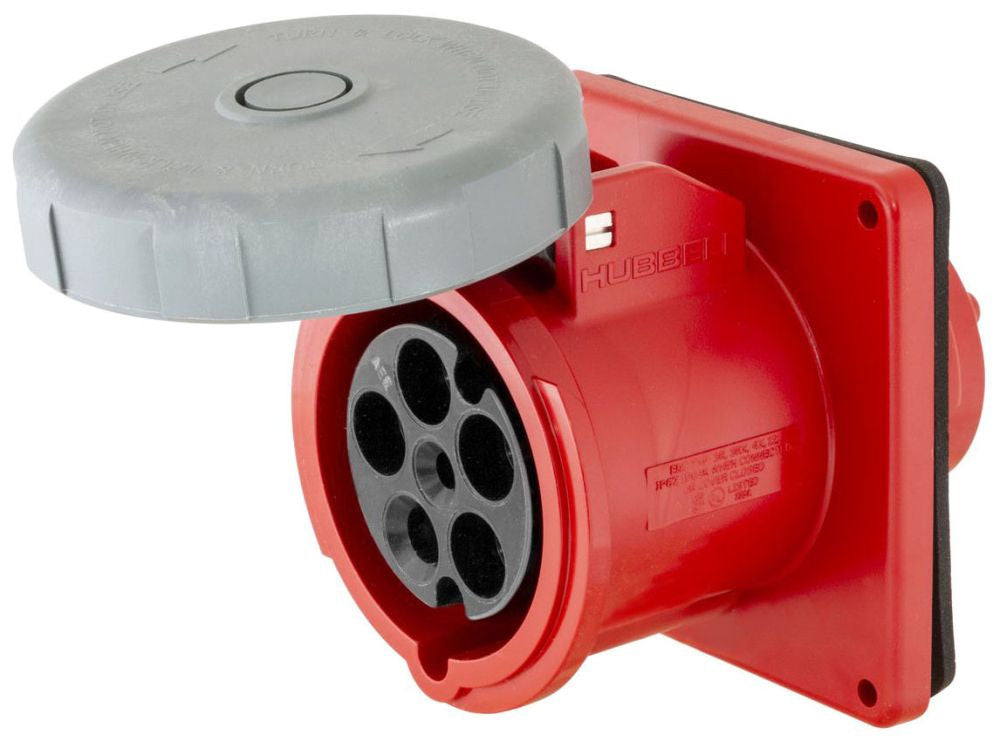

HBL5100R7W is a Hubbell 100 Amp, 277/480 Volt, 4-Pole 5-Wire watertight IEC pin and sleeve receptacle designed for heavy duty industrial applications.This industrial grade female receptacle features a red thermoplastic housing with brass contacts, providing a durable and reliable connection for 3-phase Wye 277/480V AC power distribution. It includes a single flanged mounting style with screw terminals and is rated for 100 amps continuous current. The device is UL listed and CSA certified, with an IP67 watertight enclosure suitable for harsh environments. It supports a 30 horsepower rating and withstands dielectric voltage up to 3000V AC.
- Key Specifications
- Amperage: 100A
- Voltage: 277/480V AC, 3-Phase Wye
- Poles: 4
- Wires: 5
- Mounting Type: Single Flanged, Screw Mount
- Housing Material: Red Thermoplastic
- Contacts: Brass
- Interrupt Rating: Certified for full rated current interrupting
- Enclosure: Watertight, IP67
- Horsepower Rating: 30 hp
- Certifications: UL Listed, CSA Certified
- Dielectric Withstand Voltage: 3000V AC
Specifications
- Part Number: HBL5100R7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 277/480Y
Product Data
- UPC : 783585405117
- GTIN : 00783585405117
- Dimensions : 5-1/2 in L x 5-1/2 in W
- Weight : 5.19
