2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL5100P9W

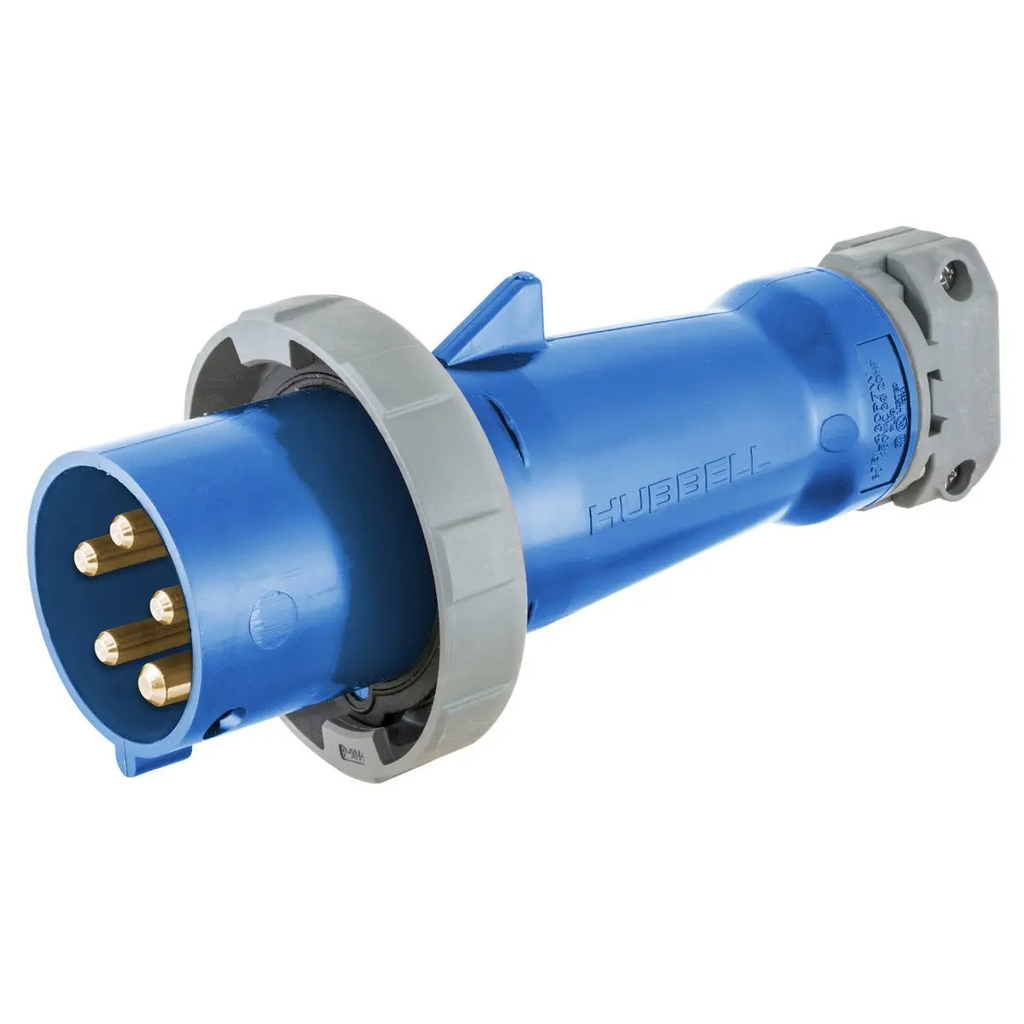

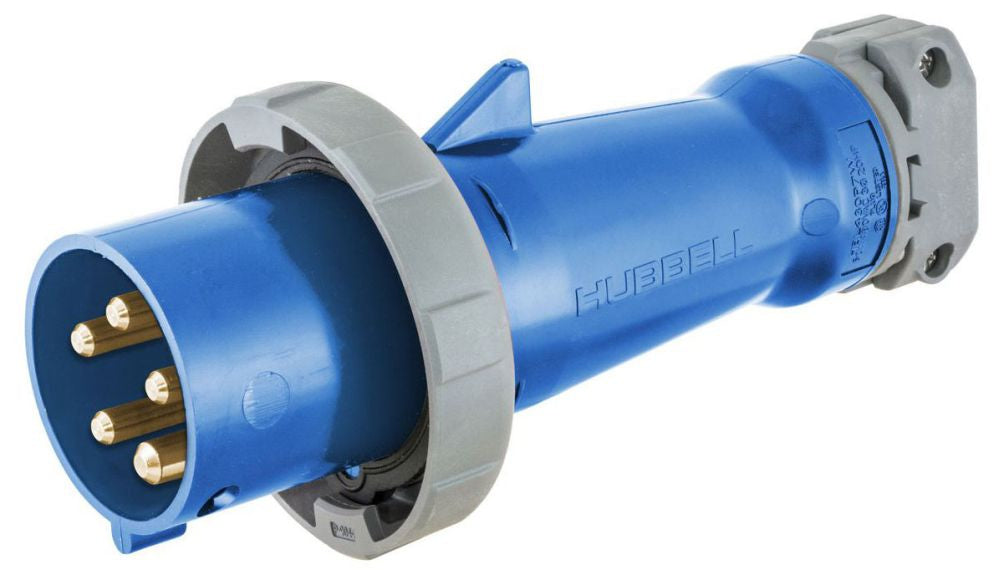

HBL5100P9W is a heavy-duty, watertight 4-pole, 5-wire pin and sleeve plug rated for 100 amps and 120/208 volts, designed for demanding industrial applications.This Hubbell IEC 60309 standard service plug features a rugged one-piece composite housing with thermoset polyester contact carrier for high resistance to electrical tracking and heat. It includes solid one-piece brass pins for reliable electrical contact, a gasketed sealing ring for watertight protection, and heavy-duty external cord grips for superior strain relief. The plug is suitable for three-phase Y 120/208 VAC systems and meets NEC 430.109(F) requirements as an approved disconnecting means.
- Amperage: 100 A
- Voltage: 120/208 VAC, 3-Phase Y
- Poles: 4
- Wires: 5
- Material: Composite housing with brass contacts
- Type: Watertight pin and sleeve plug
- Cord Mounted with heavy-duty external cord grips
- Industry Standard: IEC 60309, NEC 430.109(F)
- Color: Blue
- Wire Size Range: #3 AWG to #1/0 AWG
- Phase: Three Phase
- UPC: 783585405094
Specifications
- Part Number: HBL5100P9W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 120/208Y
Product Data
- UPC : 783585405094
- GTIN : 00783585405094
- Dimensions : 4.92 in Dia x 12.63 in L
- Weight : 0.4
