HBL5100P7W - Hubbell 100A 277/480V 4-Pole 5-Wire Watertight Pin and Sleeve Plug

HBL5100P7W

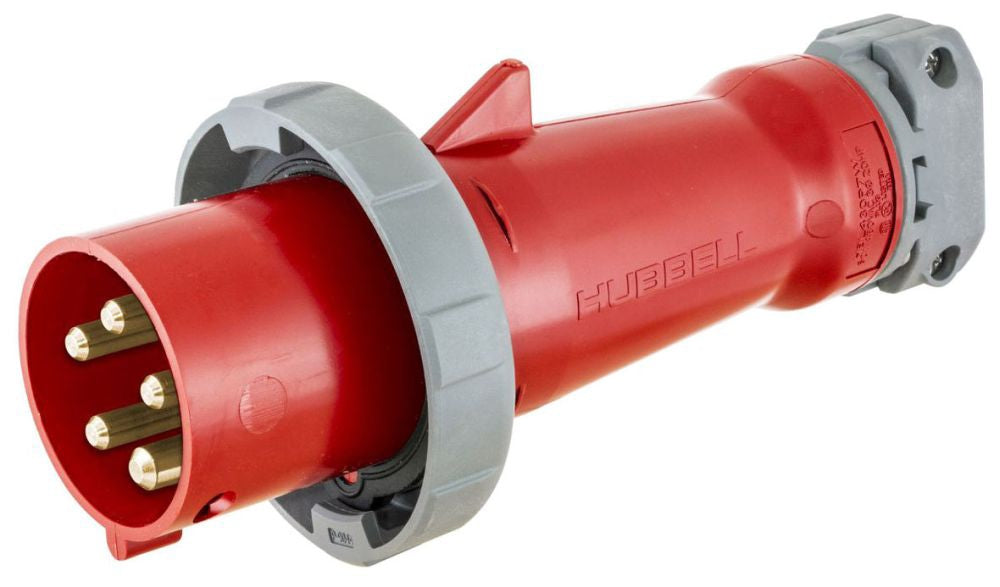

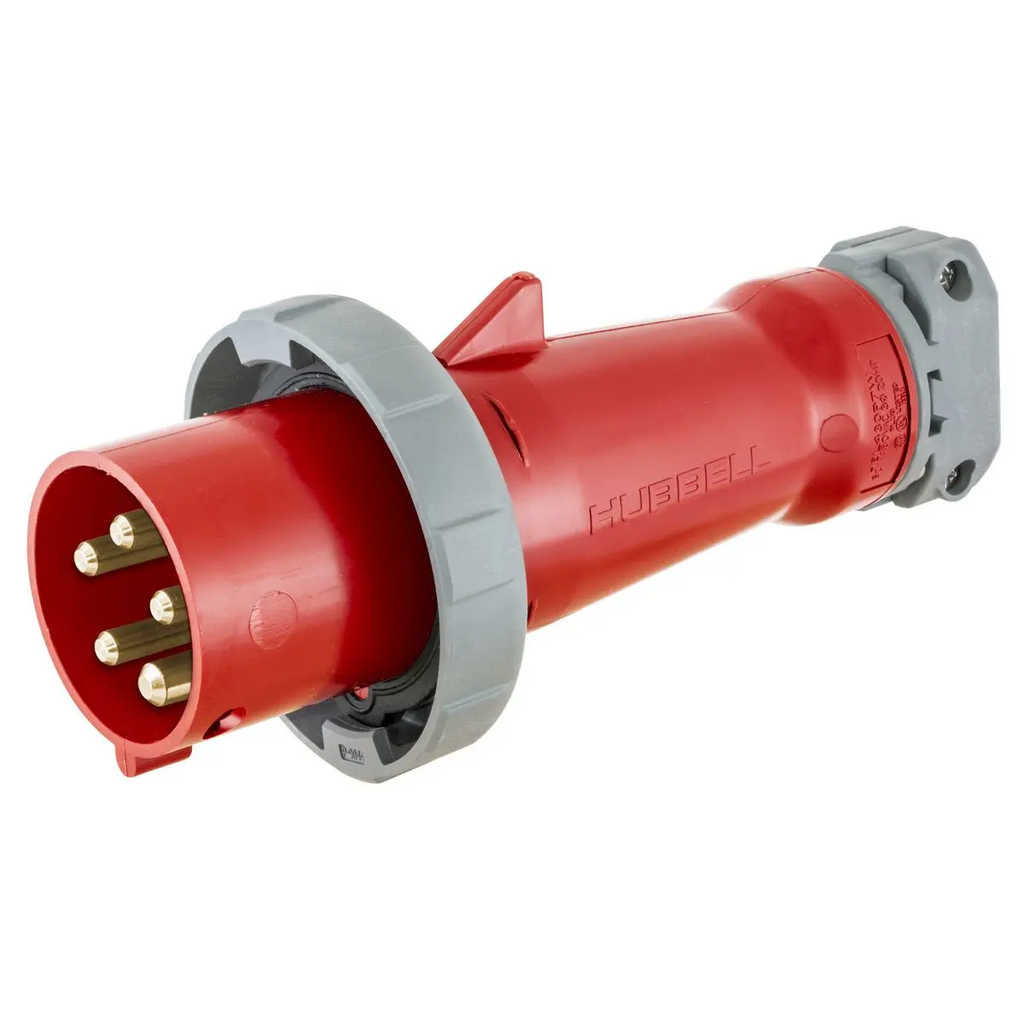

HBL5100P7W is a Hubbell 100 Amp, 277/480 Volt, 4-Pole, 5-Wire watertight pin and sleeve male plug designed for heavy-duty industrial power connections.HBL5100P7W features a rugged red Zytel ST801 nylon housing with brass contacts, providing excellent durability and corrosion resistance. It is UL Listed and CSA Certified, suitable for three-phase 277/480V AC systems with a 100 Amp rating. This cord-mounted plug includes a gasketed sealing ring for watertight protection and meets IEC 60309 standards for industrial-grade applications. The device supports wire sizes from #3 AWG to #1/0 AWG and offers superior strain relief with a heavy-duty external cord grip.

Key Specifications
• Amperage: 100A
• Voltage: 277/480V AC, 3-Phase
• Poles: 4
• Wires: 5
• Housing Material: Red Zytel ST801 Nylon
• Contacts: Brass
• Mounting Type: Cord Mounted
• Watertight with gasketed sealing ring
• Certifications: UL Listed, CSA Certified
• Industry Standard: IEC 60309, Non-NEMA
• Wire Size Range: #3 AWG to #1/0 AWG
• Color: Red

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL5100P7W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 277/480Y

Product Data

• UPC : 783585405087
• GTIN : 00783585405087
• Dimensions : 4.92 in Dia x 12.63 in L
• Weight : 5.19
