Product Info
- Manufacturer:Hubbell
Description
HBL47CM20C

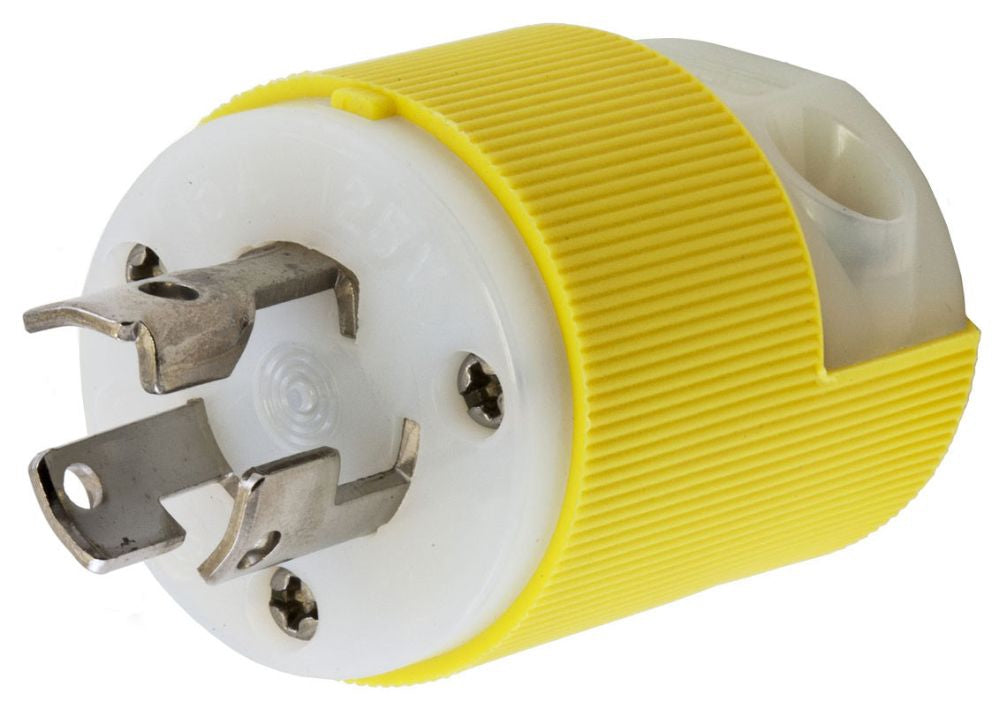

HBL47CM20C is a Hubbell 15 Amp, 125 Volt, 2-Pole 3-Wire NEMA L5-15P locking plug designed for reliable and corrosion-resistant power connections.This marine-grade Insulgrip® plug features a ribbed nylon housing for durability and corrosion resistance, with a roomy wiring chamber for easy installation. It is cord-mounted with pressure terminal screws and supports a cable range of 0.230 to 0.720 inches. Rated for single-phase use, it withstands dielectric strength of 2,000 volts minimum and operates in temperatures from -40°C to 75°C continuous. The plug is UL 94/498 and CSA C22.2 approved, making it suitable for indoor dry environments unless otherwise protected.
- Key Specifications
- Amperage: 15 A
- Voltage: 125 V
- Poles: 2
- Wires: 3 (including ground)
- Configuration: NEMA L5-15P
- Material: Corrosion resistant nylon
- Mounting Type: Cord mounted
- Cable Range: 0.230" to 0.720" diameter
- Connectivity: Pressure terminal screws
- Dielectric Strength: Withstands 2,000 V minimum
- Operating Temperature: -40°C to 75°C continuous
- Certifications: UL 94/498, CSA C22.2
Specifications
- Part Number: HBL47CM20C
- Manufacturer : Hubbell
- Brand : Hubbell
Product Data
- UPC : 783585160504
- GTIN : 00783585160504
- Weight : 5.19
