Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock device
Description
HBL4792

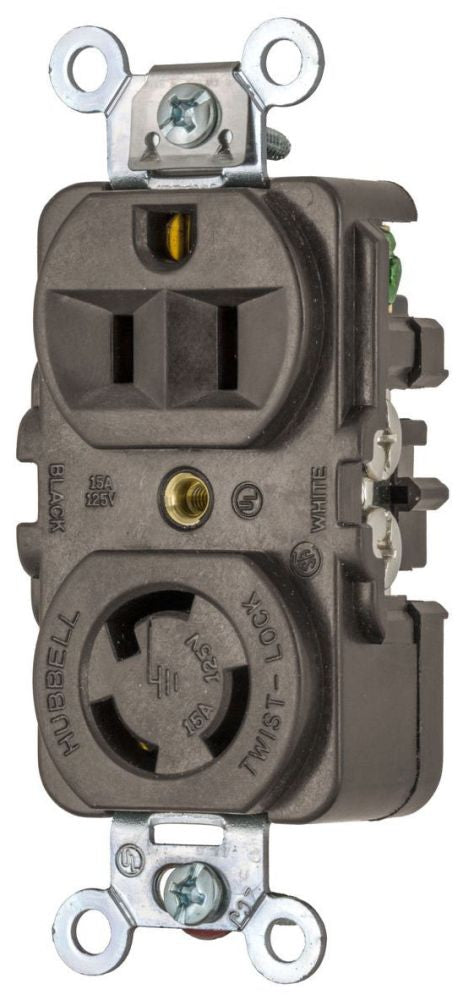

HBL4792 is a Hubbell twist-lock industrial combination face duplex receptacle rated for 15 amps and 125 volts with 2 poles and 3-wire grounding, designed for secure and heavy-duty electrical connections.This device features a reinforced thermoplastic polyester face and base, back and side wired screw terminals accommodating #14 to #10 AWG copper conductors, and is UL listed to UL498 and CSA certified. It withstands a dielectric voltage of 2,000V minimum and operates reliably in temperatures from -40°C to 75°C continuous without impact. The receptacle includes NEMA 5-15R and L5-15R configurations, suitable for single-phase applications requiring a locking mechanism for safety and durability.
- Key Specifications
- Amperage: 15 A
- Voltage: 125 V
- Poles: 2-Pole
- Wiring: 3-Wire Grounding
- Mounting Type: Screw Mount
- Terminal Accommodation: #14 to #10 AWG copper stranded or solid
- Dielectric Strength: 2,000V minimum
- Material: Reinforced thermoplastic polyester face and base
- Standards: UL Listed UL498, CSA Certified C22.2 No. 42
- Operating Temperature: -40°C to 75°C continuous
- NEMA Configuration: 5-15R and L5-15R
- Phase: Single Phase
- Part Number: HBL4792
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock device
- Voltage : 125 125
- UPC : 783585236995
- GTIN : 00783585236995
- Dimensions : 1-11/16 in W x 1-3/16 in D 3.28 x 1.5 x 0.88 in
- Weight : 0.3
Additional Information
NEMA locking configuration
