Product Info
- Manufacturer:Hubbell
Description
HBL4760

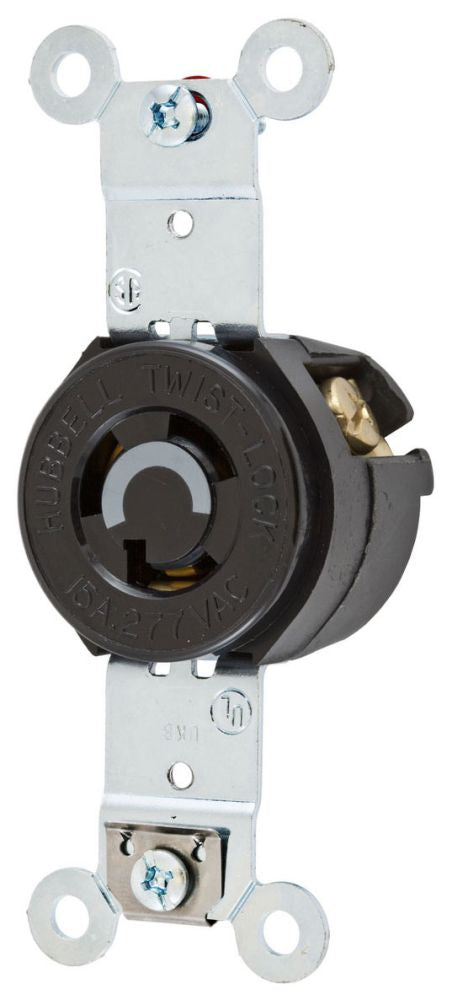

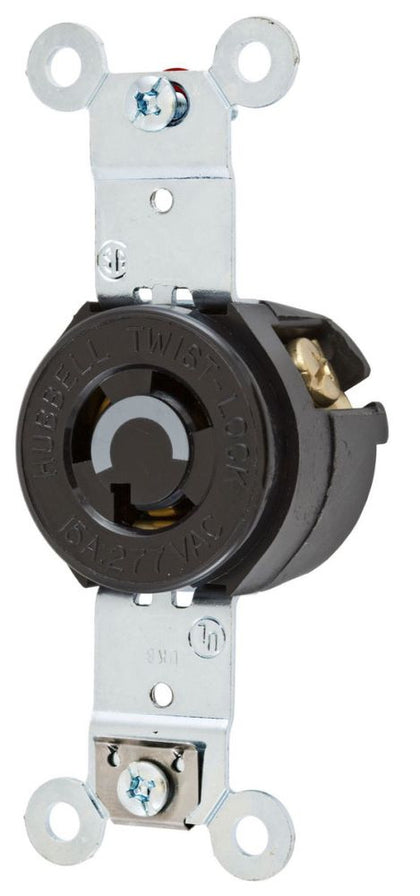

HBL4760 is a Hubbell Twist-Lock single flush receptacle rated for 15 amps and 277 volts AC with a 2-pole, 3-wire grounding configuration.
This industrial-grade receptacle features a NEMA L7-15R configuration with screw terminals for secure wiring. It is constructed from reinforced thermoplastic polyester for durability and is designed for heavy-duty use with a maximum continuous operating temperature of 75°C and a minimum of -40°C without impact. The device is UL 498 listed and meets UL 94 HB flammability rating standards. It accommodates #18 to #10 AWG solid or stranded copper wire and is certified for current interrupting at full rated current. The receptacle is black in color and sized at 3.28 inches length, 1.53 inches width, and 1.27 inches height.
- Key Specifications
- Amperage: 15 A
- Voltage: 277 VAC
- Poles: 2-Pole
- Wiring: 3-Wire Grounding
- Configuration: NEMA L7-15R
- Mounting Type: Flush Mount
- Terminal Type: Screw Terminal
- Material: Reinforced Thermoplastic Polyester
- Operating Temperature: -40°C to 75°C continuous
- UL Listings: UL 498, UL 94 HB Flammability
- Wire Range: #18 to #10 AWG Copper
- Interrupt Rating: Certified for current interrupting at full rated current
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL4760
- Manufacturer : Hubbell
- Brand : Hubbell
Product Data
- UPC : 78358523687
- GTIN : 00783585236872
- Weight : 5.19
