Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL4729C

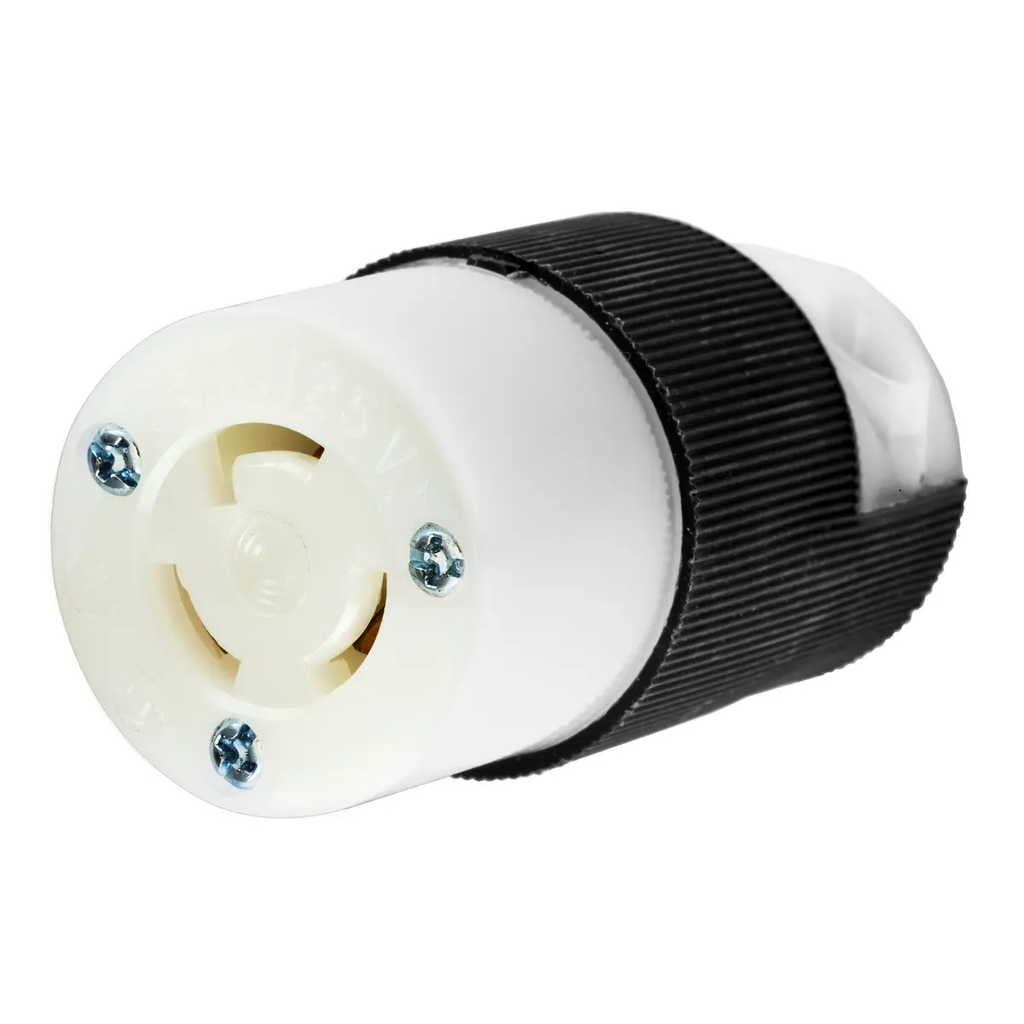

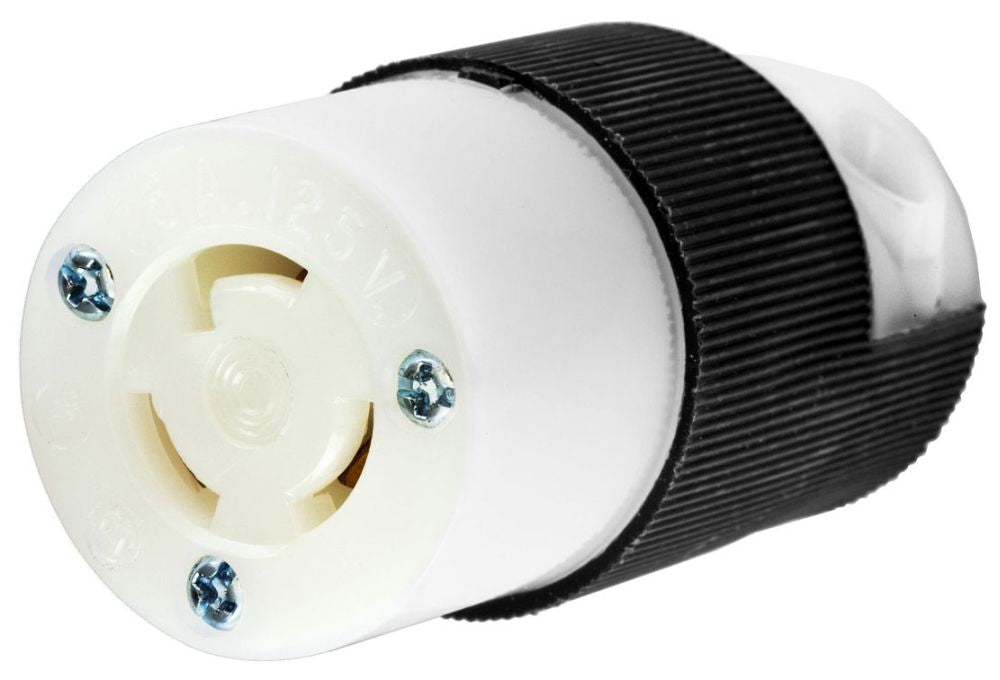

HBL4729C is a Hubbell Twist-Lock Insulgrip female connector body designed for heavy-duty industrial applications.
This cord-mounted connector features a 2-pole, 3-wire grounding configuration, NEMA L5-15R rating, and is constructed from durable nylon for reliable performance in demanding environments. It is certified for current interrupting at full rated current and meets key industry standards for safety and durability.
-
Key Specifications
- Amperage: 15 A
- Voltage: 125 V
- Poles: 2
- Mounting Type: Cord mounted
- Interrupt Rating: Certified for current interrupting at full rated current
- Series/Frame: Twist-Lock Insulgrip
- Trip Unit: Not applicable (connector only)
- Certifications: UL 498, NEMA WD-1, WD-5, RoHS compliant
- Wire Size: #18 AWG to #10 AWG stranded copper
- Cord Range: 0.230"–0.720" (5.8–18.3 mm)
- Operating Temperature: -40°C to 75°C (without impact)
- Dielectric Strength: Withstands 2,000V minimum
- Material: Nylon housing, polycarbonate terminal retainer
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL4729C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585171357
- GTIN : 00783585171357
- Dimensions : 1.53 x 1.53 x 2.78 in 2.78 in L x 1.53 in W
- Weight : 0.5
