Product Info
- Manufacturer:Hubbell
Description
HBL4710

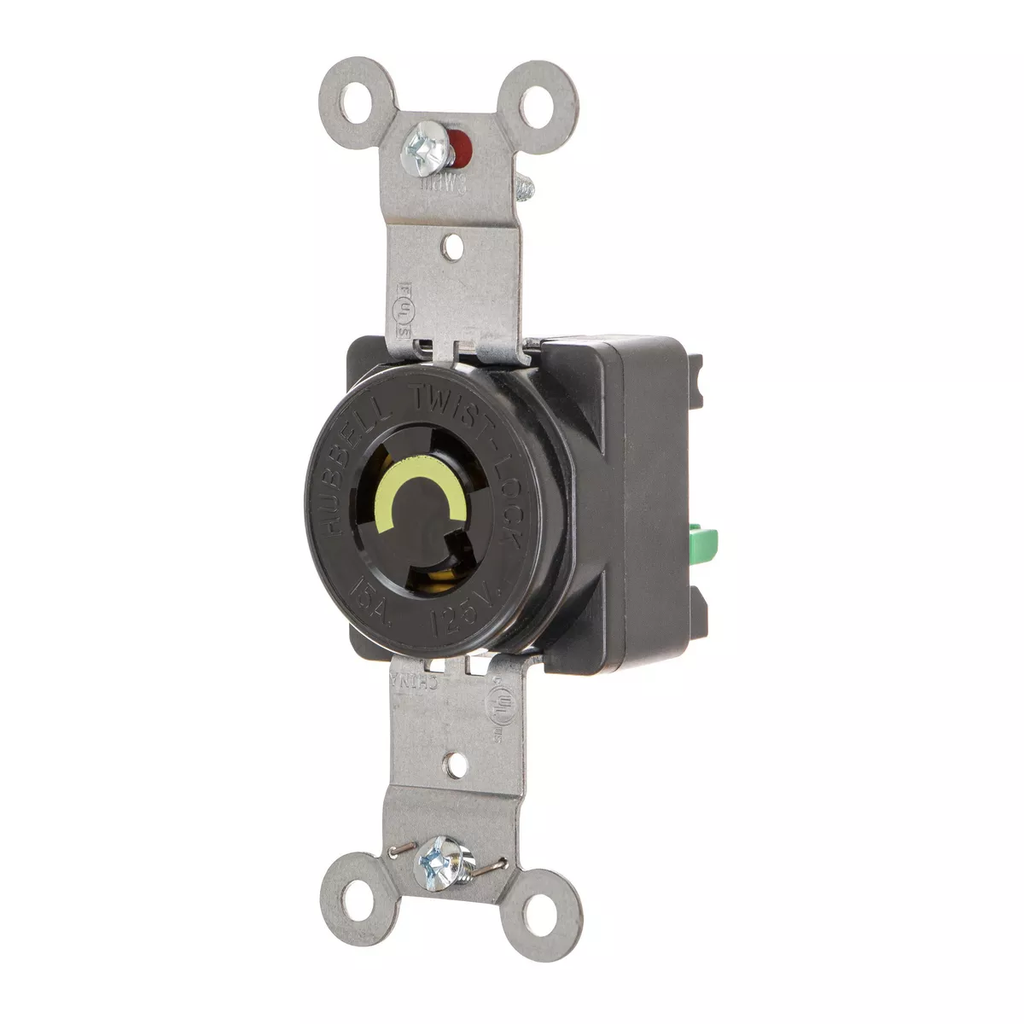

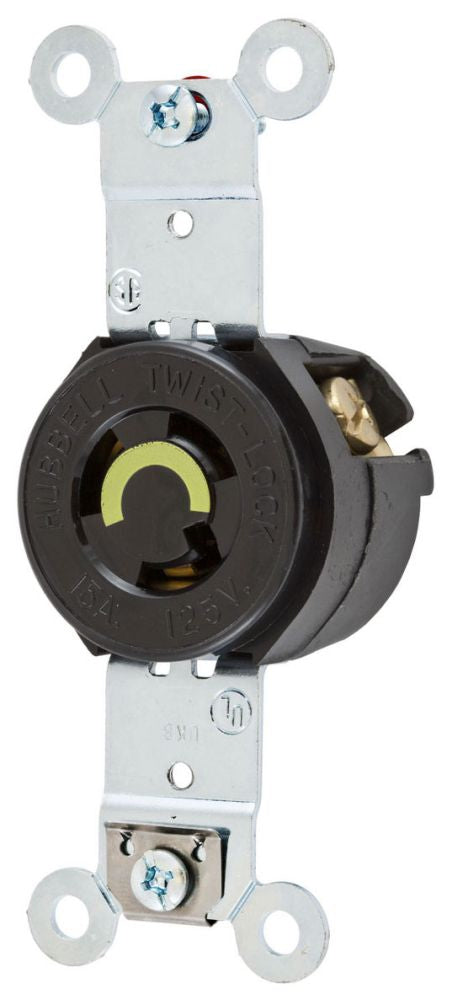

HBL4710 is a Hubbell 15A 125V 2-pole 3-wire grounding twist-lock flush receptacle designed for industrial applications.This receptacle features a reinforced thermoplastic nylon construction with single-piece all brass contacts and a brass mounting strap with stainless steel grounding clip. It supports screw terminal wiring with back and side wiring options. Rated for 15 amps and 125 volts AC, it meets NEMA L5-15R configuration standards and withstands a dielectric strength of 2,000 volts minimum. The device is suitable for indoor dry environments and operates in temperatures from -40°C to 75°C continuous.
- Key Specifications
- Amperage: 15 A
- Voltage: 125 V AC
- Number of Poles: 2
- Number of Wires: 3 (Grounding)
- Mounting Type: Screw Mount, Flush
- NEMA Configuration: L5-15R
- Material: Reinforced Nylon
- Dielectric Strength: 2,000 V minimum
- Operating Temperature: -40°C to 75°C continuous
- Terminal Type: Screw Terminal, Back and Side Wired
- Certifications: UL 498, CSA C22.2
- Part Number: HBL4710
- Manufacturer : Hubbell
- Brand : Hubbell
- UPC : 783585236728
- GTIN : 00783585236728
- Weight : 0.3
