Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL4700

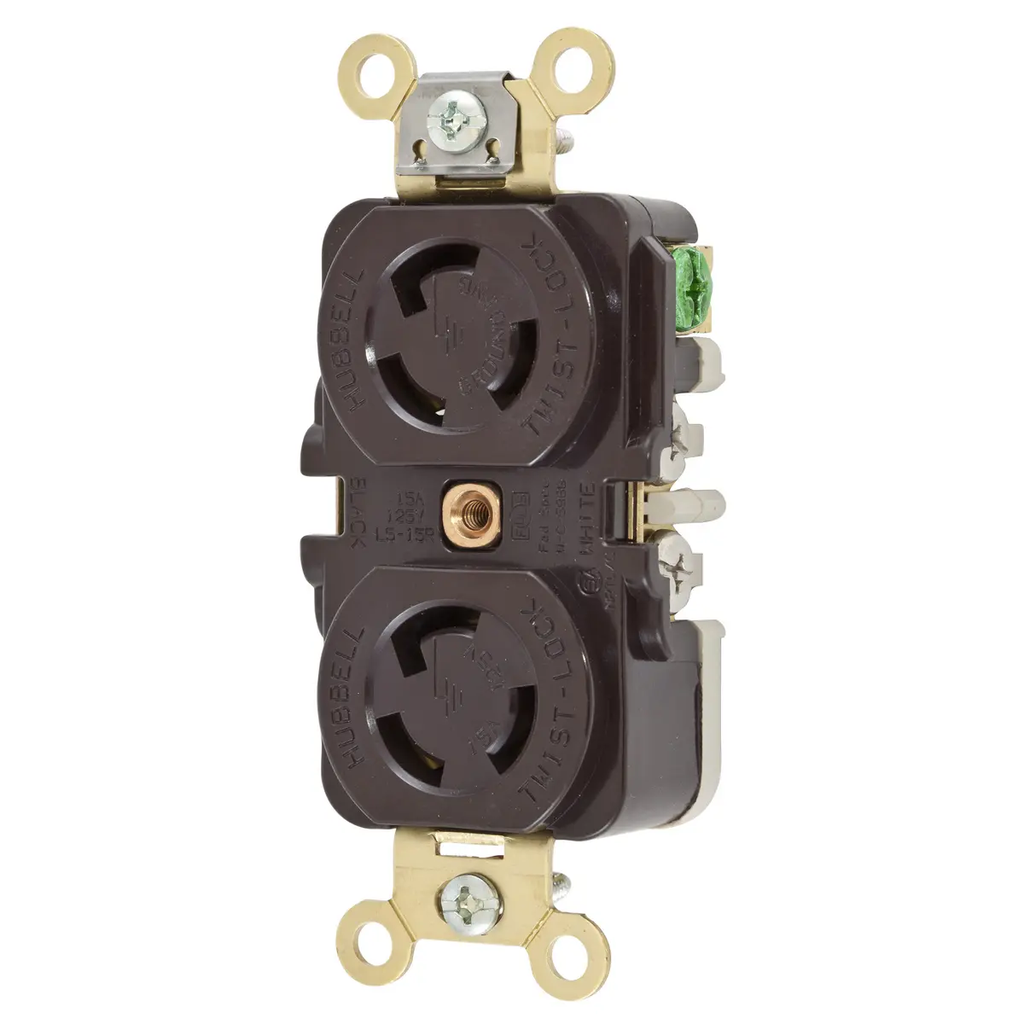

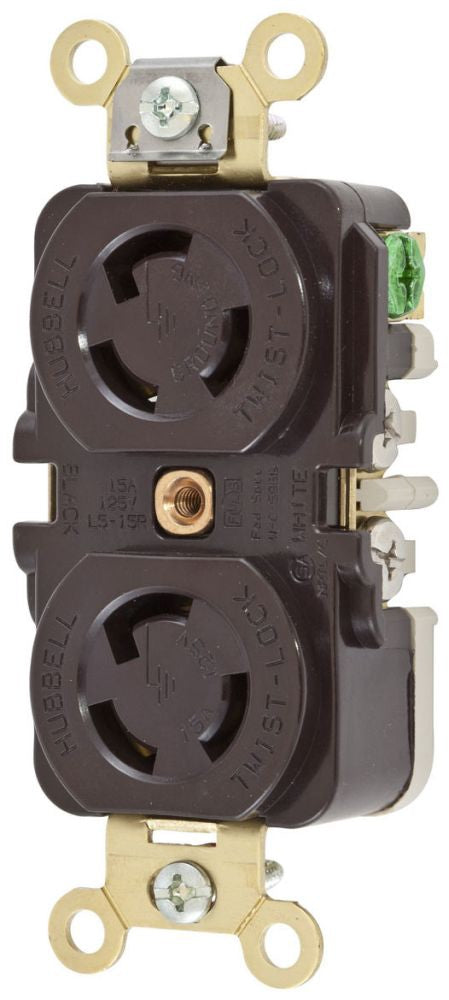

HBL4700 is a heavy-duty industrial duplex receptacle designed for secure, reliable power connections in demanding environments.This Hubbell Twist-Lock receptacle features a thermoplastic body, brass contacts, and screw terminal mounting for easy installation. It is rated for 15A, 125V, 2-pole, 3-wire grounding, and is certified for current interrupting at full rated current. The L5-15R configuration ensures compatibility with standard locking plugs, while the reinforced construction provides durability and long-term performance.
- Part Number: HBL4700
- Manufacturer: Hubbell
- Amperage Rating: 15 A
- Voltage Rating: 125 V
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Screw Terminal
- Interrupt Rating: Full Rated Current
- Series/Frame: Twist-Lock
- Standards: UL 498, CSA C22.2 No.42, Fed. Spec. W-C-596
- Operating Temperature: -40°C to 75°C
- Wire Size: #18 AWG to #10 AWG
Specifications
- Part Number: HBL4700
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125 125
Product Data
- UPC : 783585002309
- GTIN : 00783585002309
- Dimensions : 2.73 in L x 1.7 in D 3.29 x 1.7 x 1.17 in
- Weight : 5.19
