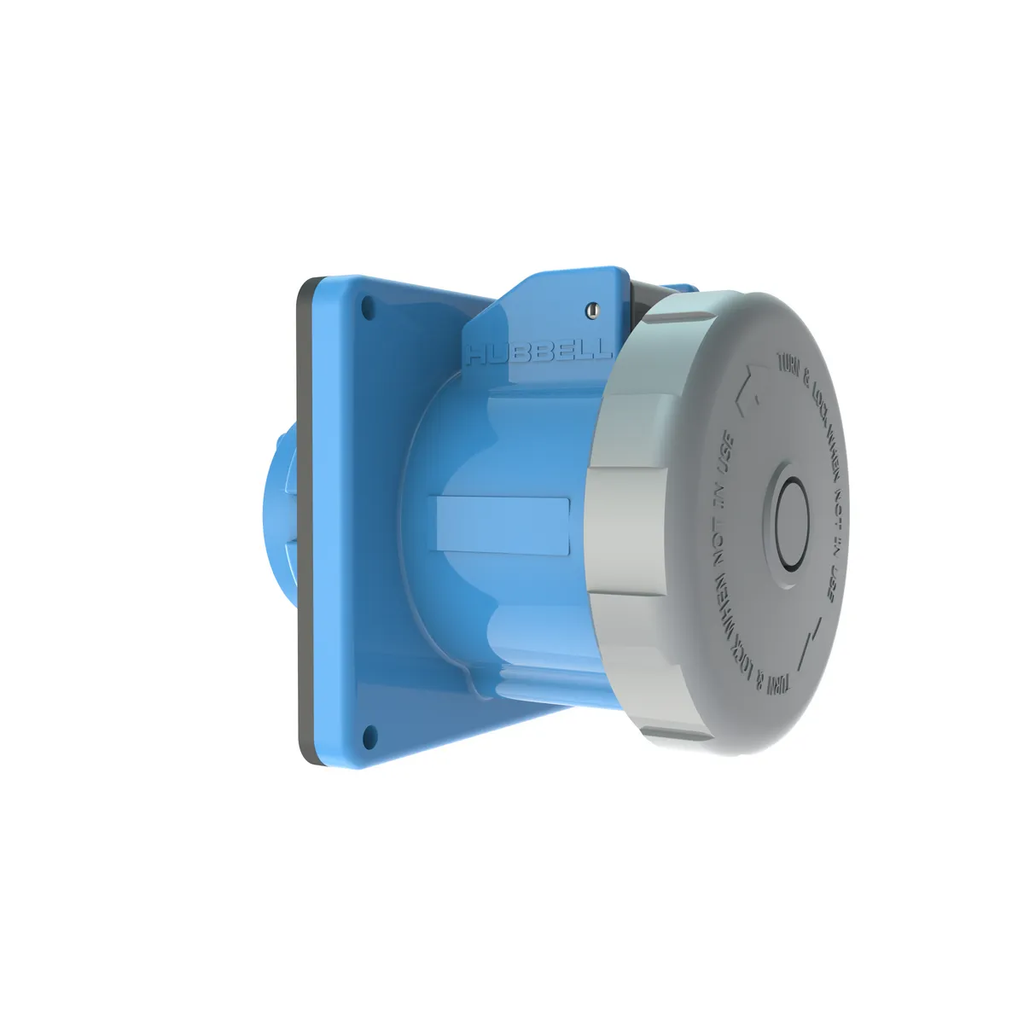

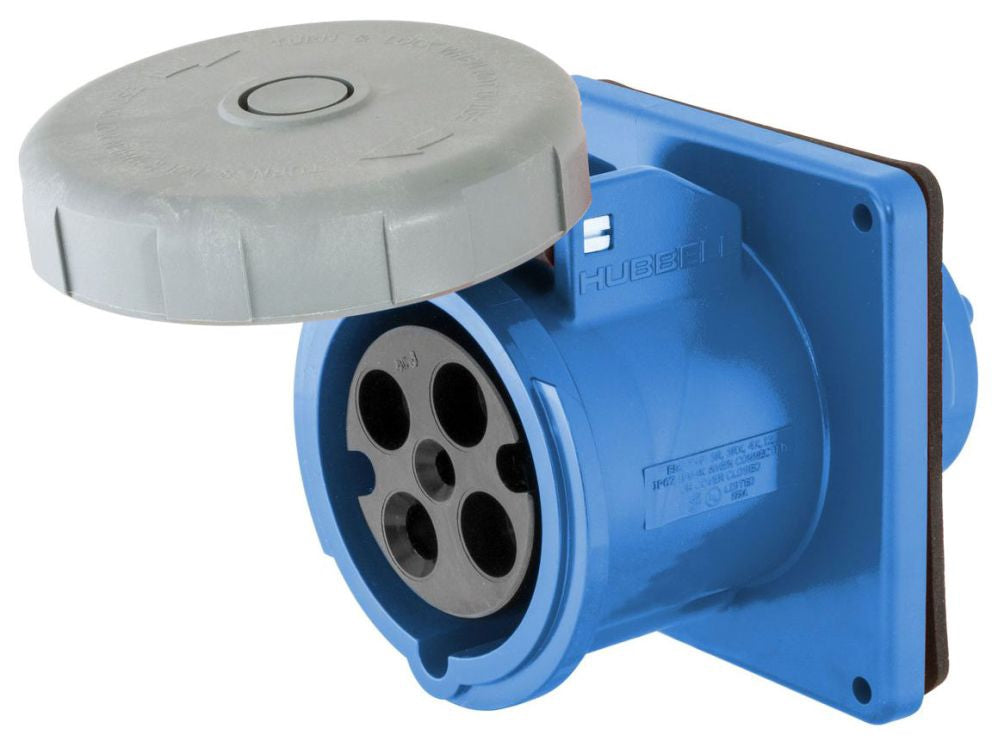

HBL460R9W - Hubbell 60A 250V 3-Pole 4-Wire Watertight IEC Pin and Sleeve Receptacle

HBL460R9W

HBL460R9W is a 60 amp, 250 volt, 3-pole, 4-wire watertight IEC pin and sleeve receptacle from Hubbell designed for heavy-duty industrial applications.This watertight receptacle features a super tough thermoplastic polyester housing with a self-closing gasketed cover, providing UL Type 4X, 12, and IP69K environmental ratings. It is engineered for three-phase 250 VAC service with pressure terminal screws for secure wiring. The device is UL1682 listed and CSA certified, suitable for 60A continuous current, and supports wire sizes from #8 AWG to #2 AWG. The mounting type is screw flange with a durable Zytel 101 nylon flange and reinforced cover. It meets NEC 430.109(F) requirements and is recognized as an approved disconnecting means.

Key Specifications
• Amperage: 60 A
• Voltage: 250 VAC, 3 Phase
• Poles: 3-Pole
• Wires: 4-Wire (including ground)
• Mounting Type: Screw Flanged
• Material: Thermoplastic Polyester Housing, Zytel Nylon Flange
• Interrupt Rating: Certified for current interrupting at full rated current
• Environmental Rating: UL Type 4X, 12, IP69K Watertight
• Certifications: UL Listed (UL1682), CSA Certified
• Wire Size Range: #8 AWG to #2 AWG
• Color: Blue
• Series: Hubbell HBL Heavy Duty IEC Pin and Sleeve

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL460R9W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 250 250

Product Data

• UPC : 783585404936
• GTIN : 00783585404936
• Dimensions : 4.5 in W x 4.07 in D x 5.1 in H 5.1 in H x 4.5 in W x 4.07 in D
• Weight : 5.19
