HBL460R12W - Hubbell 60A 125/250V 3-Pole 4-Wire Watertight Pin and Sleeve Receptacle Industrial Grade

HBL460R12W

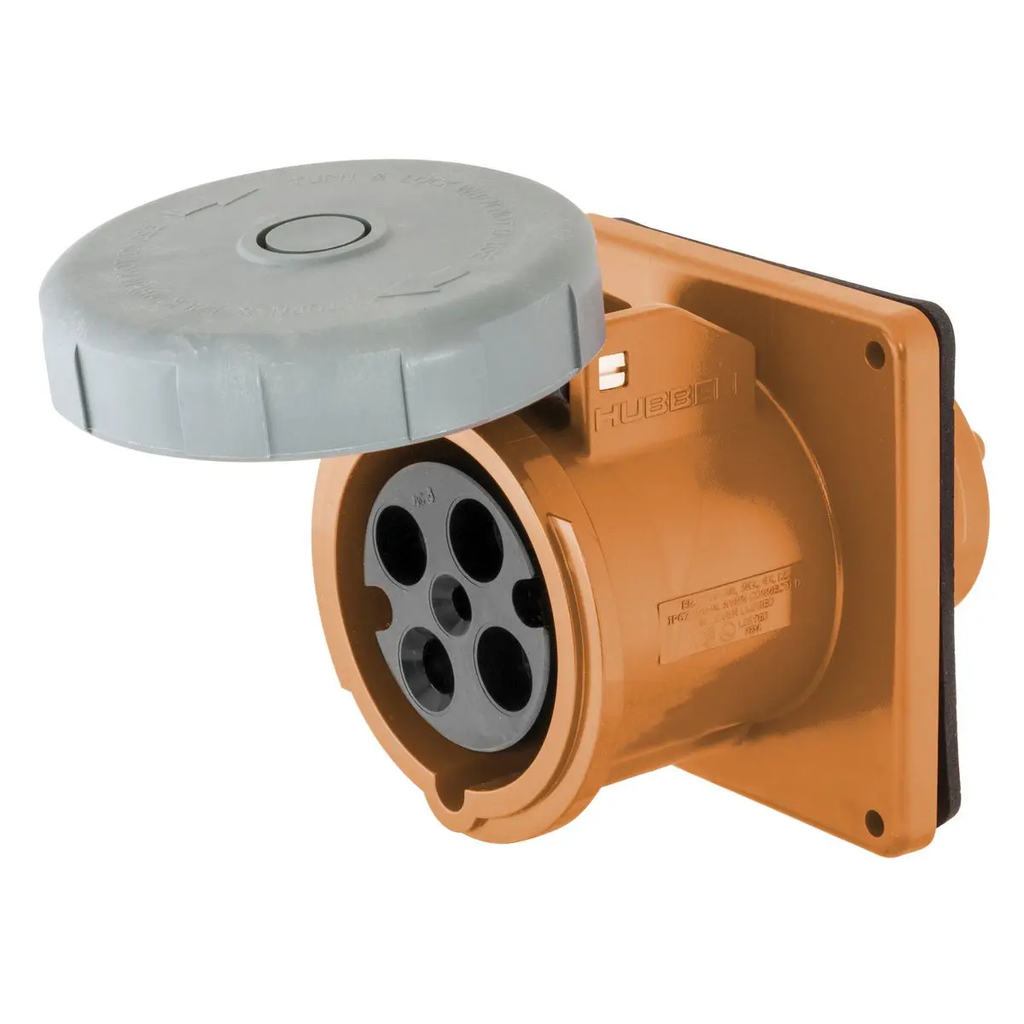

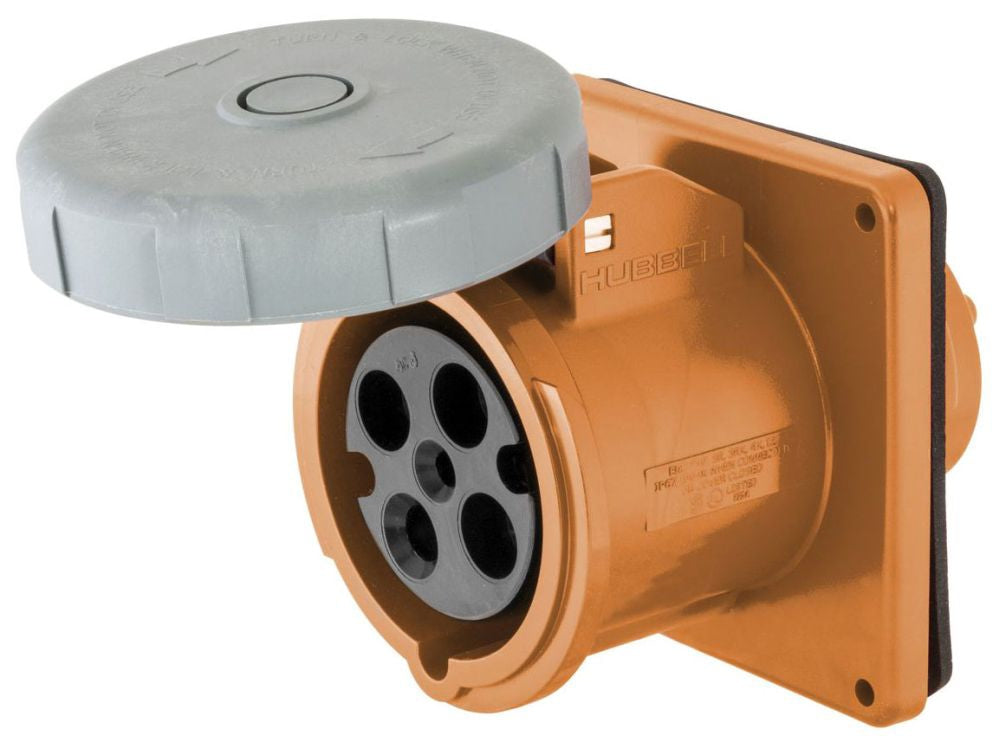

HBL460R12W is a Hubbell 60 Amp, 125/250 Volt, 3-Pole, 4-Wire watertight pin and sleeve receptacle designed for industrial applications.This heavy-duty receptacle features a thermoplastic Zytel 101 nylon housing with a reinforced thermoplastic polyester cover and solid neoprene gaskets for watertight protection (IP67). It is a single flanged, screw mount type with pressure screw terminals, rated for 60 amps and 125/250 VAC. The device is suitable for harsh environments with temperature ratings from -40 to 75 degrees Celsius and meets UL1682 standards. It is TAA compliant and Buy America qualified.

Key Specifications
• Amperage Rating: 60 A
• Voltage Rating: 125/250 VAC
• Number of Poles: 3
• Number of Wires: 4
• Mounting Type: Single Flanged Screw Mount
• Enclosure Rating: IP67 Watertight
• Material: Thermoplastic (Zytel 101 Nylon)
• Terminal Type: Pressure Screw
• Temperature Range: -40 to 75 °C
• Certifications: UL1682 Listed, TAA Compliant, Buy America Qualified
• Color: Orange
• Series: HBL Heavy Duty
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HBL460R12W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 125/250 125/250



Product Data

• UPC : 783585404899
• GTIN : 783585404738
• Dimensions : 4.5 in W x 4.07 in D x 5.1 in H 5.1 in H x 4.5 in W x 4.07 in D
• Weight : 5.19
