Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description

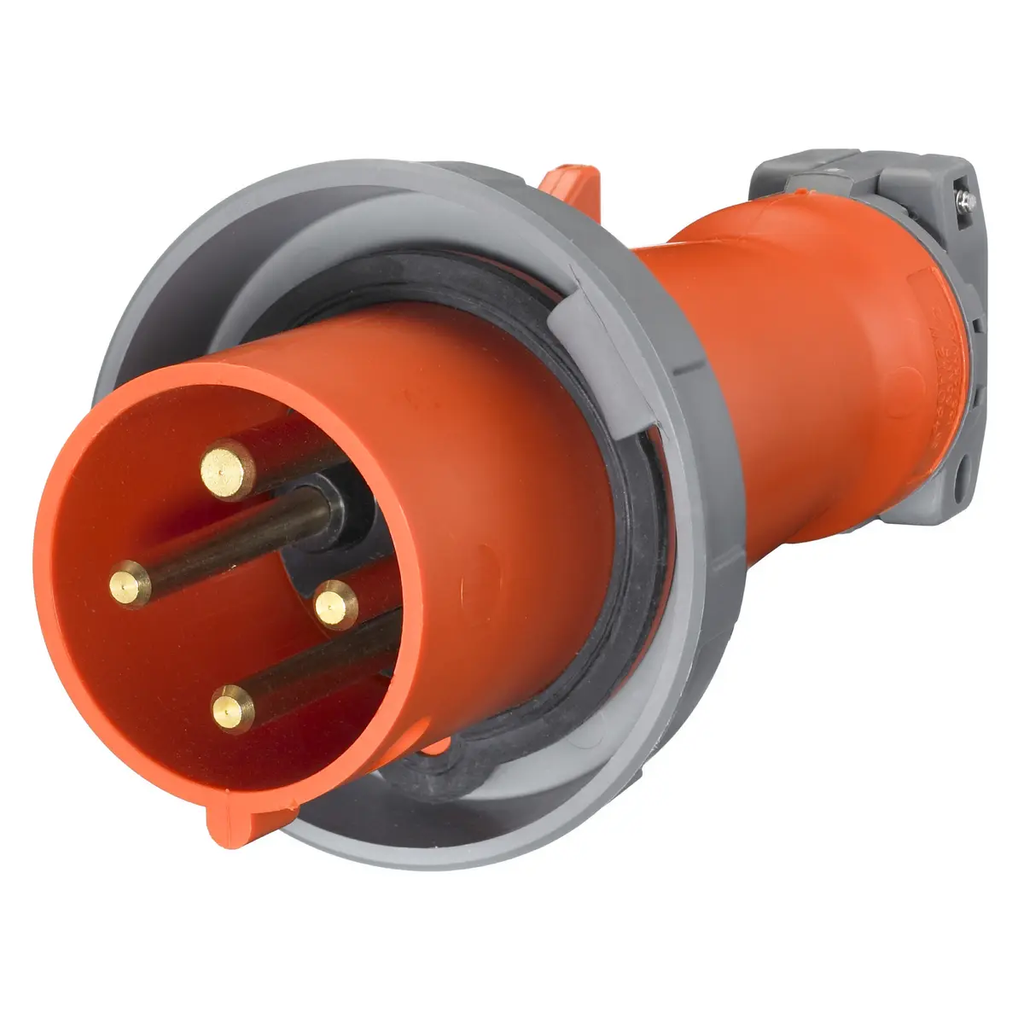

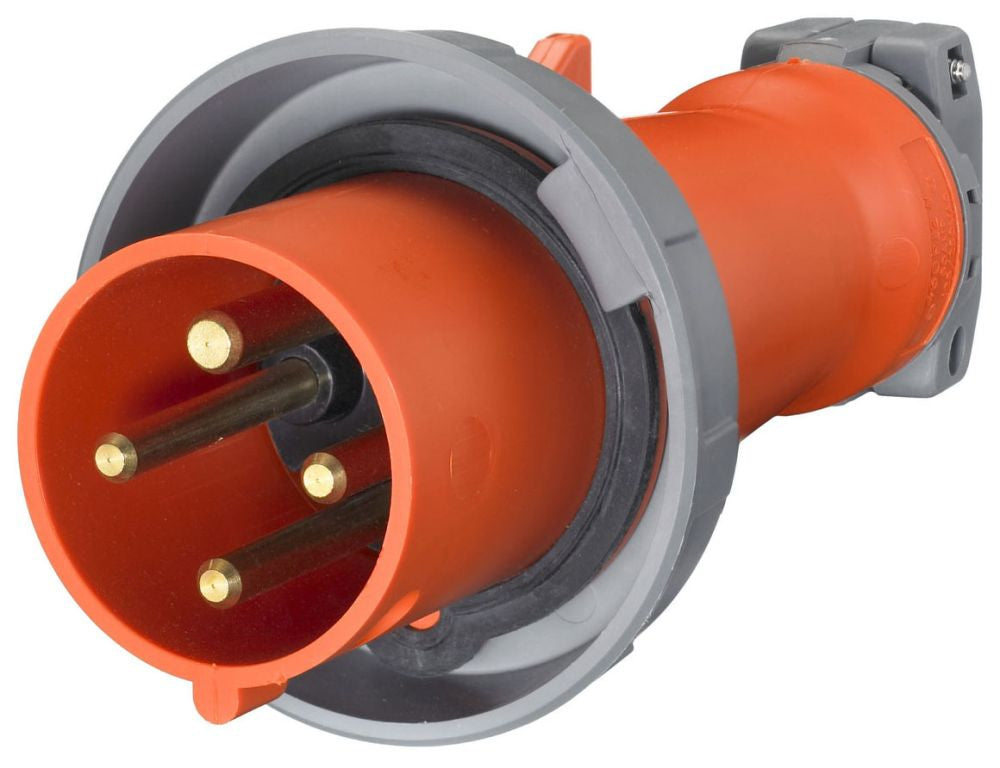

HBL460P12W
HBL460P12W is a heavy-duty watertight pin and sleeve plug designed for high ampacity connections with 60 amps and 125/250 volts rating.This 3-pole, 4-wire plug features a rugged composite housing with solid one-piece brass pins for reliable electrical contact. It includes a gasketed sealing ring and watertight neoprene gland seal to prevent water ingress, making it suitable for harsh industrial environments. The plug uses pressure terminal screws for secure wiring and meets UL 1682/1686C2 and CSA C22.2 certifications. It is cord-mounted and rated for single-phase applications with a wire size range of #8 AWG to #2 AWG.
- Key Specifications
- Amperage: 60 A
- Voltage: 125/250 VAC
- Poles: 3
- Wires: 4
- Mounting Type: Cord Mounted
- Material: Composite
- Terminal Type: Pressure Screw
- Watertight Rating: IP66/IP67, NEMA 4X/6/12
- Certifications: UL 1682/1686C2, CSA C22.2
- Color: Orange
- Phase: Single Phase
- Wire Size: #8 AWG to #2 AWG
Specifications
- Part Number: HBL460P12W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 125/250 125/250
Product Data
- UPC : 783585404844
- GTIN : 00783585404844
- Dimensions : 4.49 in Dia x 10.15 in L
- Weight : 0.5
