2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description

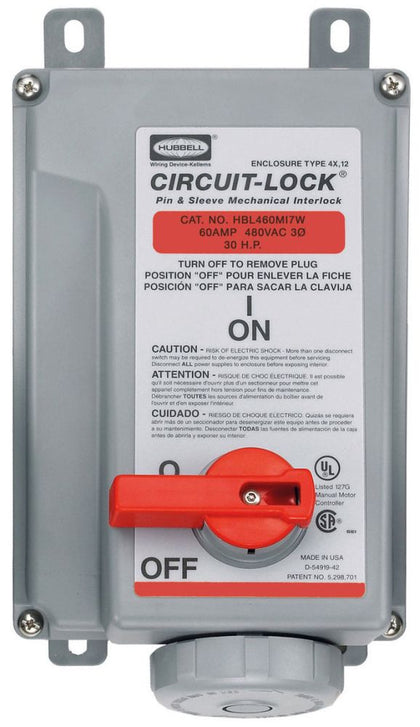

HBL460MI7W
HBL460MI7W is a heavy duty, industrial grade, mechanically interlocked female receptacle rated for 60 amps and 480 volts, designed for motor load applications.This Hubbell Wiring Device-Kellems product features a 3-pole, 4-wire configuration with a thermoplastic non-metallic enclosure rated NEMA 4X, 12, and IP67 for watertight protection. It includes a mechanical interlock to prevent circuit engagement under unsafe conditions and supports surface mounting with screw hardware. The device is UL and CSA listed, suitable for 3-phase 480V AC systems, and has a short circuit rating of 10kA. It meets OSHA lockout/tagout requirements with a lockable handle and is compatible with IEC 60309-2 plugs.
- Key Specifications
- Amperage: 60A
- Voltage: 480V AC, 3-Phase
- Poles: 3
- Wires: 4 (including ground)
- Mounting Type: Surface mount with screw hardware
- Interrupt Rating: 10kA short circuit rating
- Enclosure: Thermoplastic, NEMA 4X, 12, IP67 watertight
- Material: Non-metallic thermoplastic
- Certifications: UL Listed, CSA Certified
- Operation: Mechanical interlock with lockable handle
- Application: Motor load disconnect
- Standards: IEC 60309-1 and 60309-2 compliant
Specifications
- Part Number: HBL460MI7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 480 480
Product Data
- UPC : 783585406053
- GTIN : 783585406053
- Dimensions : 11 in H x 8-3/4 in W 8-3/4 in W x 11 in H
- Weight : 5.19
