Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL460C12W

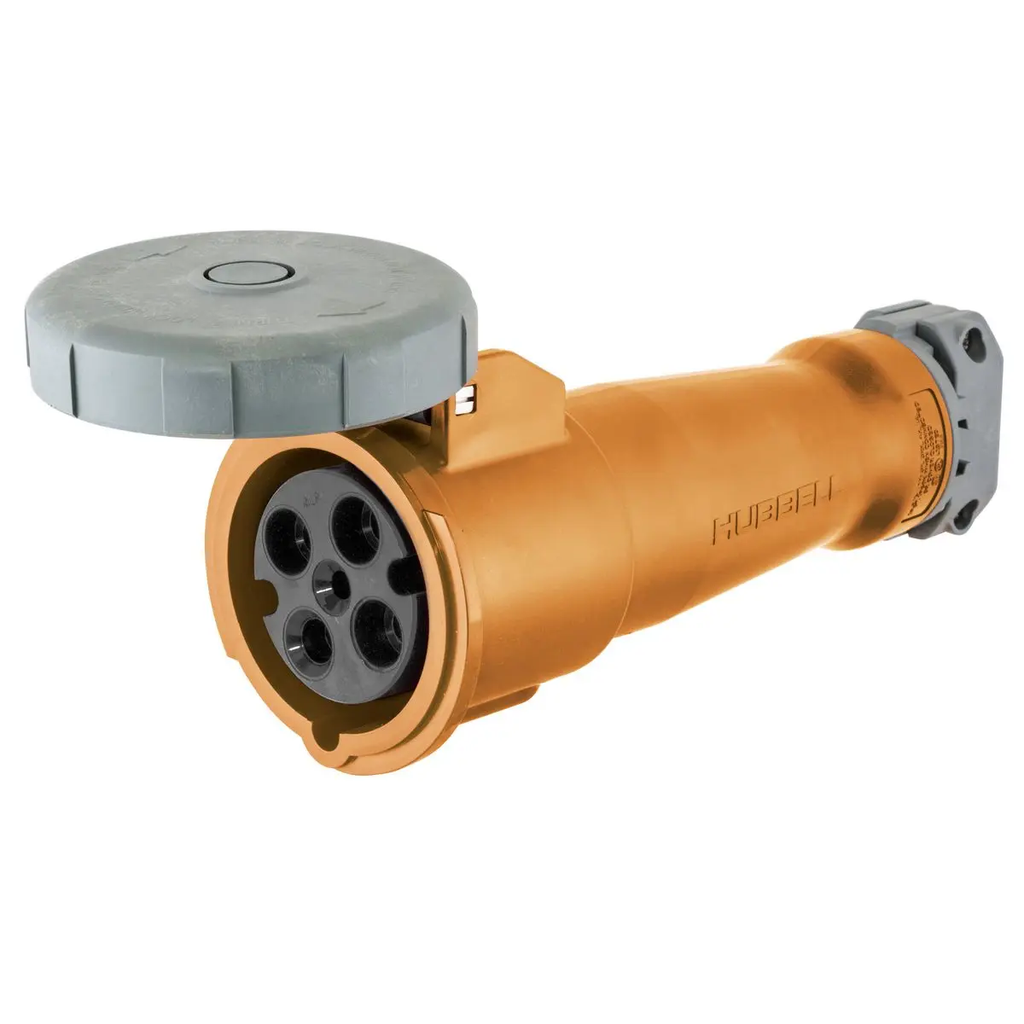

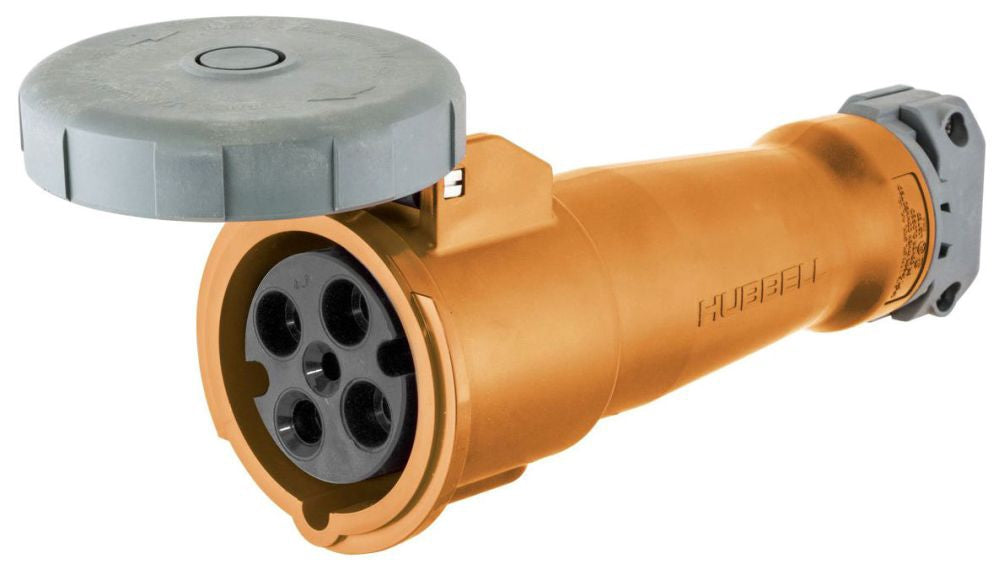

HBL460C12W is a Hubbell 60 Amp, 125/250 Volt, 3 Pole 4 Wire watertight pin and sleeve connector body designed for heavy-duty industrial applications.This connector features a durable Zytel ST801 nylon construction with an IP67 watertight rating, suitable for harsh environments including agriculture, chemical processing, and food service. It supports cable outer diameters from 0.5 to 1.45 inches and operates reliably in temperatures from -40 to 75 degrees Celsius. The connector is UL 498, UL 1682, UL 1686C2, and CSA C22.2 certified, ensuring compliance with rigorous safety standards.
- Key Specifications
- Current Rating: 60 Amps
- Voltage Rating: 125/250 VAC
- Number of Poles: 3
- Number of Wires: 4
- Material: Zytel ST801 Nylon
- Watertight Rating: IP67
- Temperature Range: -40 to 75 °C
- Certifications: UL 498, UL 1682, UL 1686C2, CSA C22.2
- Maximum Cable Outer Diameter: 1.45 inches
- Minimum Cable Outer Diameter: 0.5 inches
- Color: Orange
- Application: Industrial, Agriculture, Chemical Processing, Food Service
Specifications
- Part Number: HBL460C12W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 125/250 125/250
Product Data
- UPC : 783585404783
- GTIN : 00783585404783
- Dimensions : 5.1 in Dia x 11.15 in L
- Weight : 5.19
