2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL460B12W

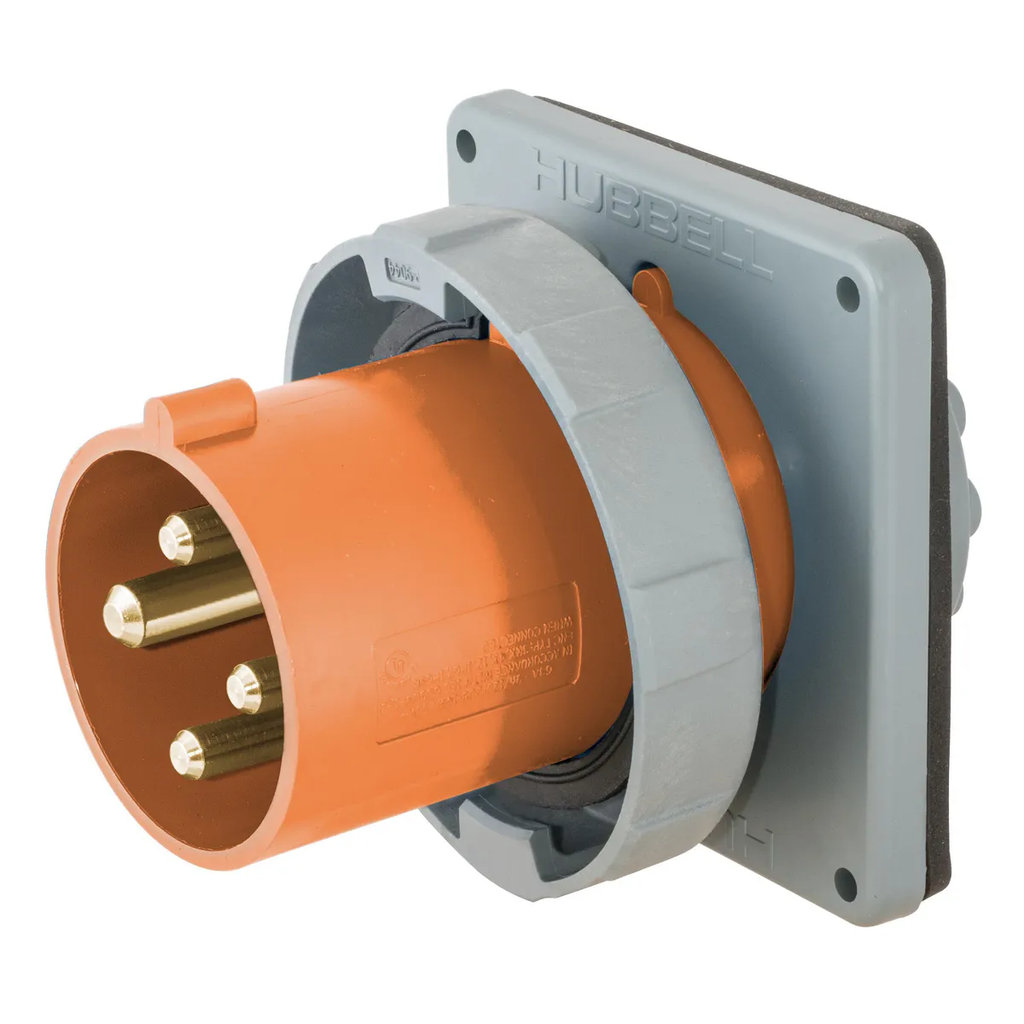

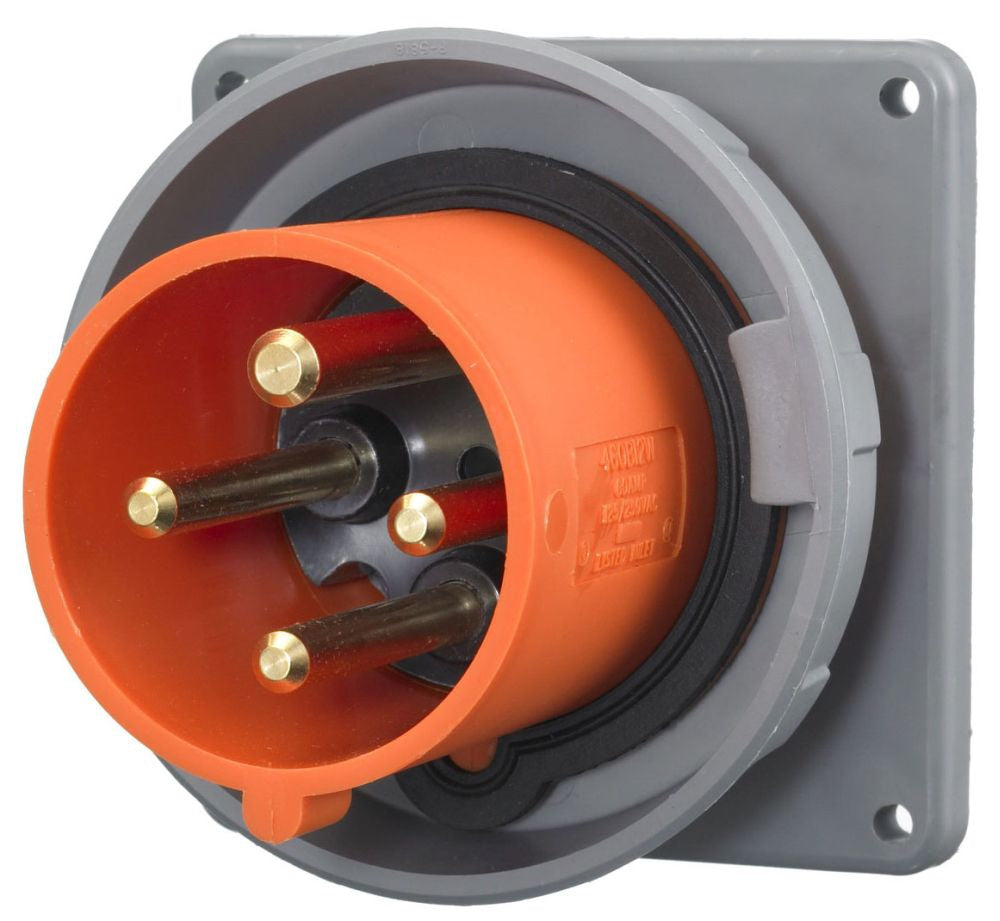

HBL460B12W is a 60 Amp, 125/250 Volt, 3-Pole 4-Wire watertight IEC pin and sleeve flanged inlet from Hubbell.This heavy-duty industrial grade inlet features a watertight design with an external cord grip for superior strain relief. It is rated for 60 amps and 125/250 volts AC with 3 poles and 4 wires, constructed with brass contacts and an orange color code for easy identification. The device is certified for current interrupting at full rated current and withstands dielectric voltage up to 3000V AC. It meets NEC 430.109(F) horsepower rating requirements and is suitable for harsh environments requiring water resistance.
- Key Specifications
- Amperage: 60 Amp
- Voltage: 125/250 Volt AC
- Poles: 3
- Wires: 4
- Mounting Type: Flanged Inlet
- Construction: Watertight IEC Pin and Sleeve
- Contact Material: Brass
- Color: Orange
- Current Interrupting Certified
- Dielectric Voltage Withstand: 3000V AC
- Temperature Rating: -40°C to 75°C continuous
- NEC Horsepower Rated
Specifications
- Part Number: HBL460B12W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 125/250 125/250
Product Data
- UPC : 783585404738
- GTIN : 00783585404738
- Dimensions : 4-1/2 in H x 4-1/2 in W 4-1/2 in W x 4-1/2 in H
- Weight : 5.19
