Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL430R7W

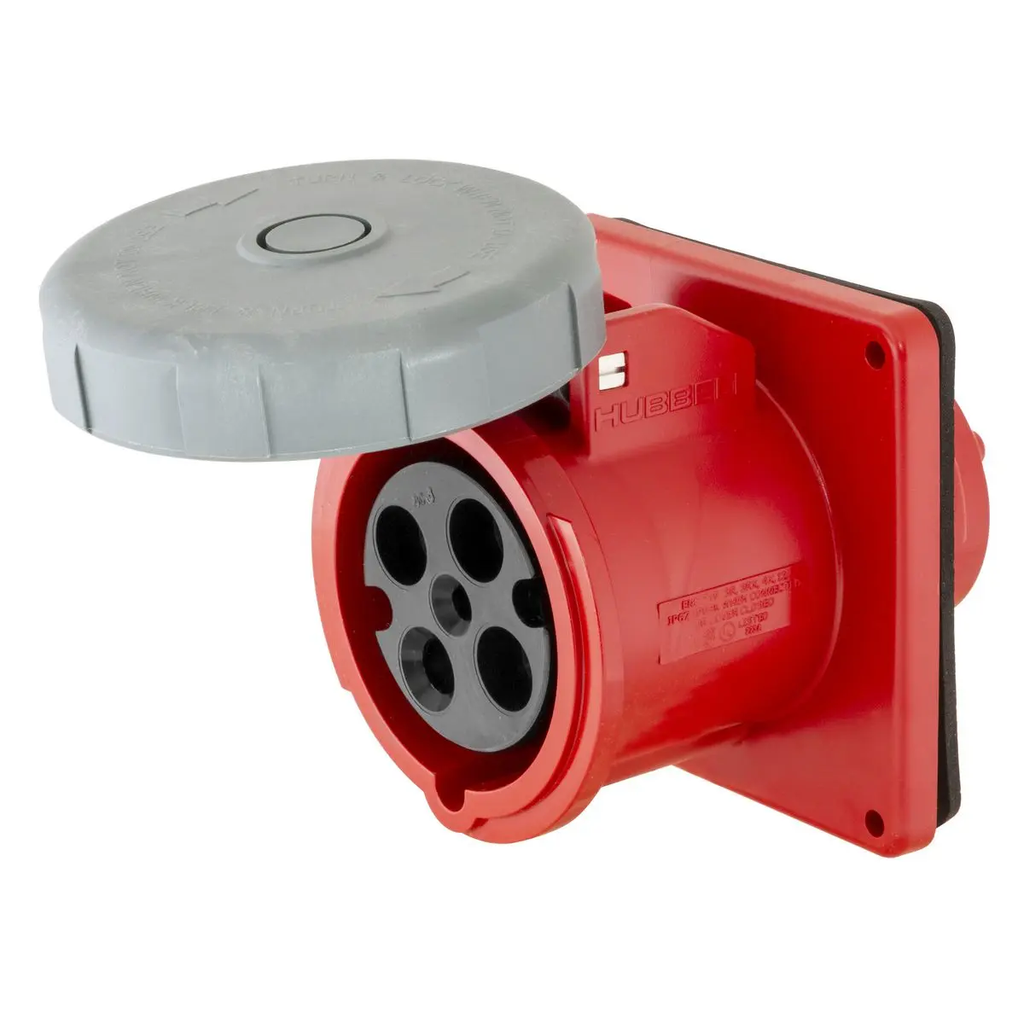

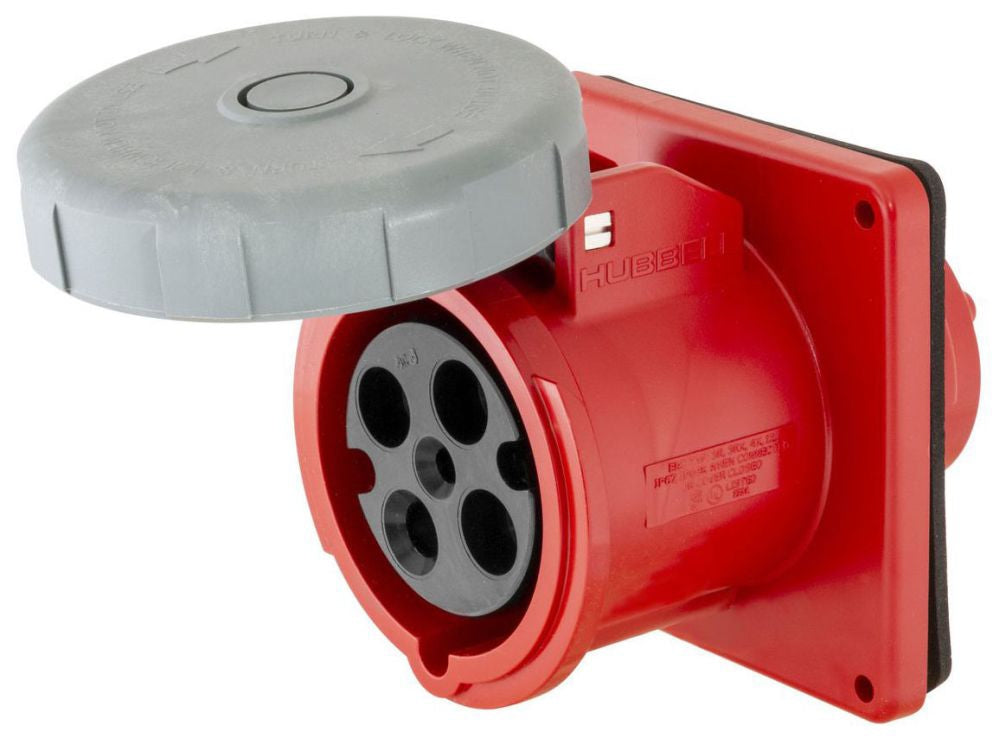

HBL430R7W is a heavy-duty industrial-grade pin and sleeve receptacle designed for reliable, watertight electrical connections in demanding environments. This Hubbell device features a robust thermoplastic housing, pressure screw terminals, and a corrosion-resistant self-closing gasketed cover for superior protection and durability. Engineered for three-phase power distribution, the HBL430R7W is rated for 30 amps and 480 volts AC, with 3 poles and 4 wires. It is ideal for applications requiring watertight, high-amperage connections, including industrial machinery, temporary power setups, and outdoor installations. The receptacle is certified to IEC 60309-1 and UL standards, and features a non-metallic, color-coded housing for easy identification.
- Amperage Rating: 30 A
- Voltage Rating: 480 VAC, 3 Phase
- Number of Poles: 3
- Number of Wires: 4
- Mounting Type: Screw Mount, Single Flanged
- Interrupt Rating: Full rated current interrupting
- Series/Frame: HBL Heavy Duty
- Enclosure Rating: IP67
- Material: Thermoplastic (Zytel® 101 Nylon)
- Terminal Type: Pressure Screw
- Operating Temperature: -40°C to 75°C
- Certifications: UL Listed, CSA C22.2 No. 182.1, IEC 60309-1, RoHS
Specifications
- Part Number: HBL430R7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 480 480
Product Data
- UPC : 783585404639
- GTIN : 00783585404639
- Dimensions : 3.75 in W x 3.09 in D x 4.27 in H 4.27 in H x 3.75 in W x 3.09 in D
- Weight : 0.5
