Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL430P9W

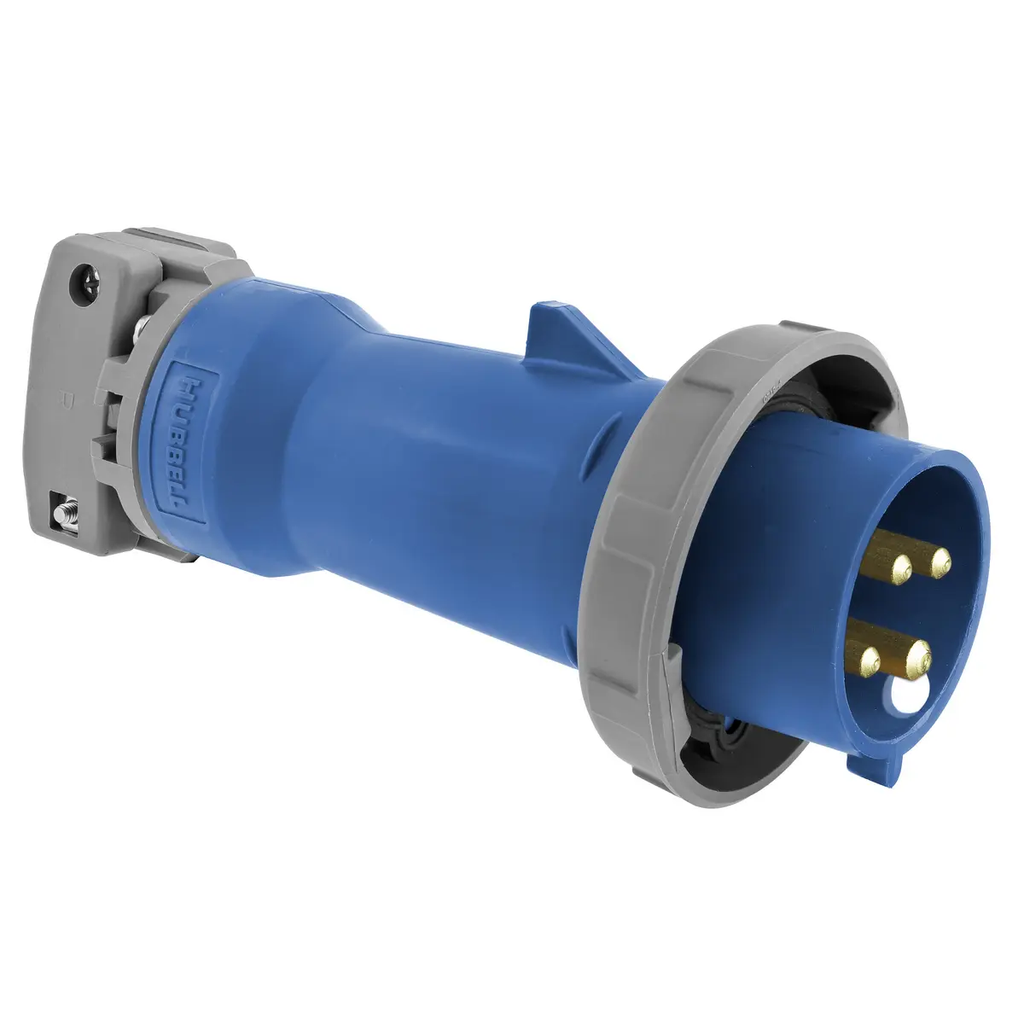

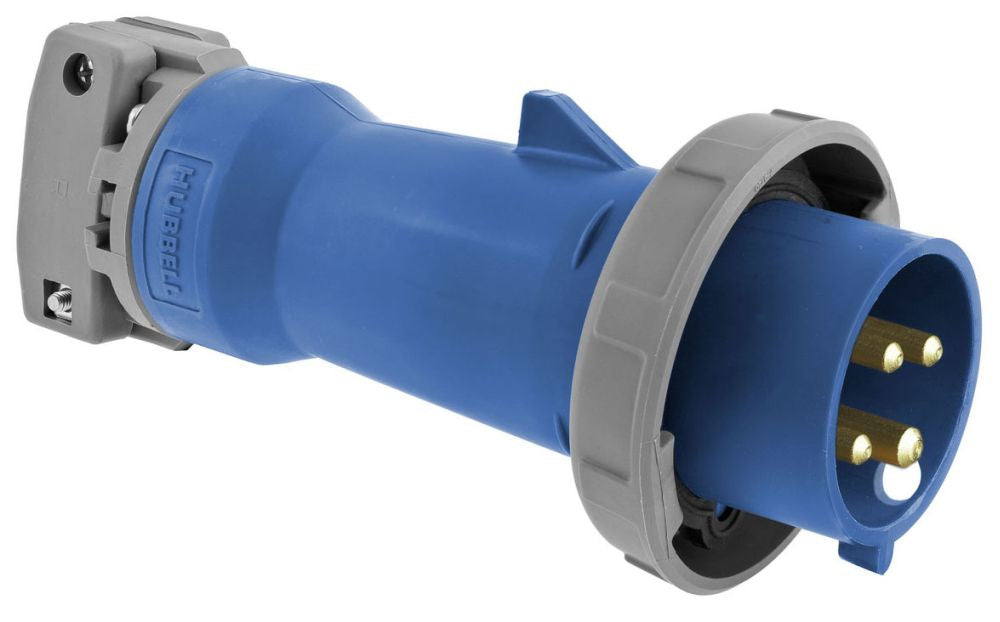

HBL430P9W is a 30 amp, 250 volt, 3-pole 4-wire watertight pin and sleeve male plug designed for heavy-duty industrial applications.This Hubbell IEC 60309 pin and sleeve device features a rugged composite one-piece housing with UL Type 4X, 12, and IP69k environmental ratings for superior impact, chemical, and water resistance. It includes solid one-piece pins for reliable electrical contact, a gasketed sealing ring for watertight connections, and heavy-duty external cord grips for strain relief. The plug is cord-mounted with pressure screw terminal connections and supports conductor sizes from 12 to 8 AWG. It is non-NEMA rated and suitable for three-phase 250 VAC systems.
- Key Specifications
- Amperage Rating: 30 A
- Voltage Rating: 250 V AC
- Number of Poles: 3
- Number of Wires: 4 (including ground)
- Mounting Type: Cord Mounted
- Terminal Connection: Pressure Screw
- Material: Composite
- Environmental Ratings: UL Type 4X, 12, IP69k
- Watertight with gasketed sealing ring
- Conductor Size: 12-8 AWG
- Phase: Three Phase
- Certifications: UL 498, IEC 309-1, IEC 309-2
Specifications
- Part Number: HBL430P9W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 250 250
Product Data
- UPC : 783585404608
- GTIN : 00783585404608
- Dimensions : 3.74 in Dia x 8.05 in L
- Weight : 0.4
