Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL430P5W

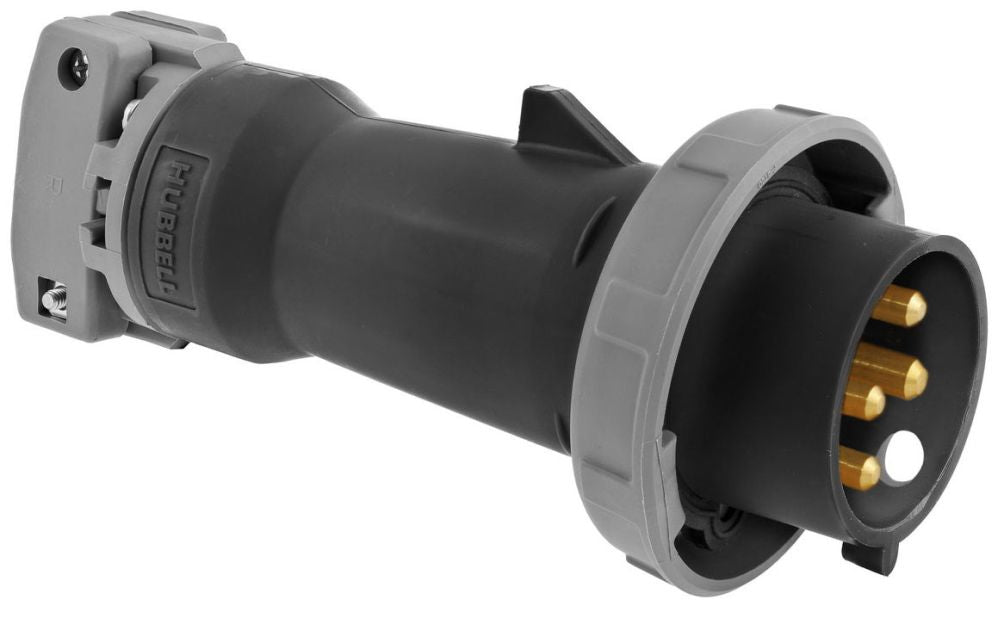

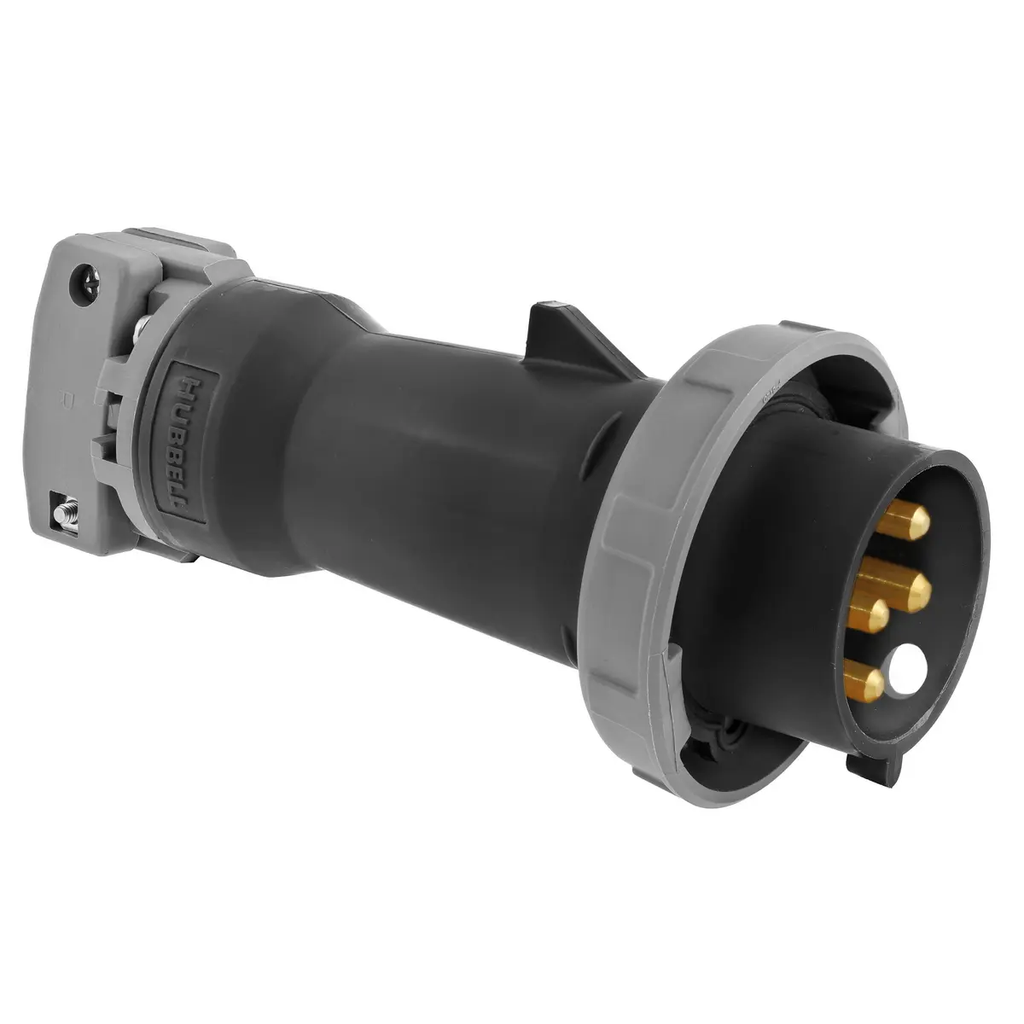

HBL430P5W is a watertight, 3-pole, 4-wire pin and sleeve male plug designed for portable cord mounting applications. HBL430P5W by Hubbell offers a 30 ampere rating at 600 volts AC, suitable for three-phase power connections. It features a composite housing with pressure screw terminals, providing durable and reliable electrical connections. This standard-sized plug is rated for industrial use with UL 498 and IEC 309-1/309-2 certifications, and is designed to withstand harsh environmental conditions with an IP67 watertight rating. The device supports conductor sizes from 12 to 8 AWG and is non-NEMA rated.
- Key Specifications
- Amperage: 30 A
- Voltage: 600 VAC, 3 Phase
- Poles: 3
- Wires: 4
- Mounting Type: Cord Mount
- Interrupt Rating: Certified for current interrupting at full rated current
- Material: Composite housing with thermoset contact carrier
- Terminal Connection: Pressure screw terminals
- Environmental Rating: Watertight, IP67
- Standards: UL 498, IEC 309-1, IEC 309-2, CSA C22.2 No. 182.1
- NEMA Rating: Non-NEMA
- Conductor Size: #12 to #8 AWG
Specifications
- Part Number: HBL430P5W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 600 600
Product Data
- UPC : 783585404578
- GTIN : 783585404578
- Dimensions : 3.74 in Dia x 8.05 in L
- Weight : 0.3
