Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL430C5W

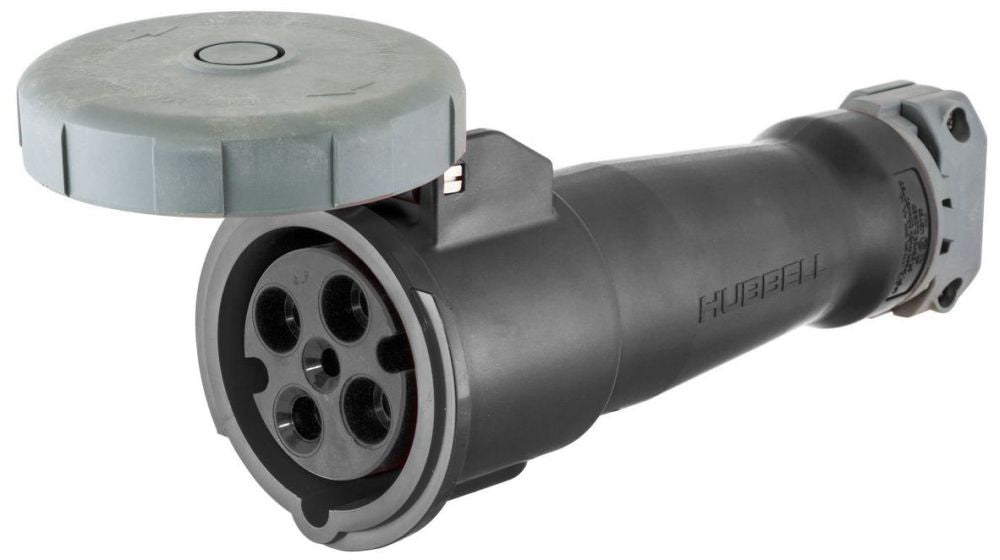

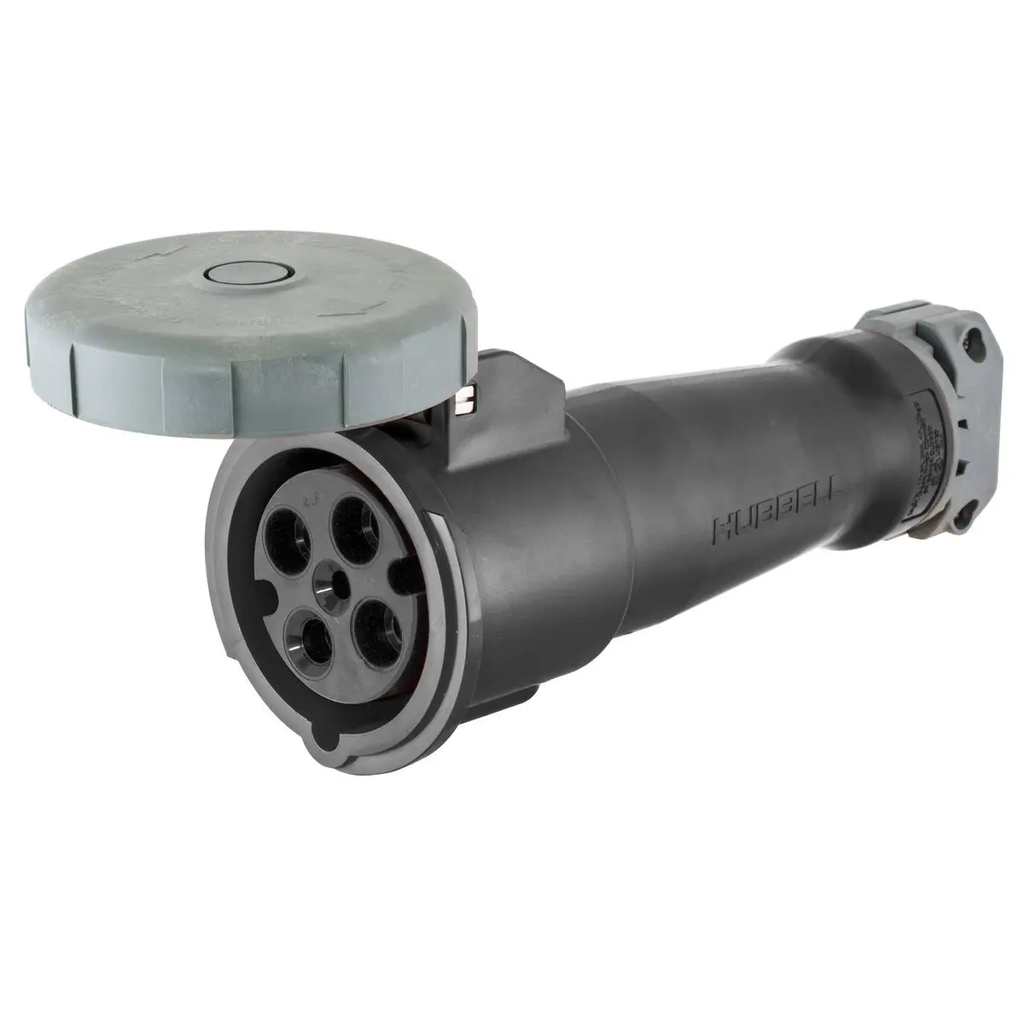

HBL430C5W Hubbell pin and sleeve connector delivers secure, watertight electrical connections for demanding industrial environments.
This industrial-grade connector is rated for 30A, 600V, 3-phase power, and features a 3-pole, 4-wire configuration with brass contacts and a black nylon housing. It is designed for use with #12 to #8 AWG copper wire, supports cable diameters from 0.375" to 1.25", and is compatible with IEC 60309-2 devices. The connector is UL 498/1682/1686C2 and CSA C22.2 approved, and is rated for IP67 watertight protection, making it suitable for harsh conditions.
-
Key Specifications
- Amperage: 30A
- Voltage: 600V AC, 3-phase
- Poles: 3
- Wires: 4
- Mounting Type: Panel or cable mount (not specified in sources)
- Interrupt Rating: Not specified in sources
- Series/Frame: Not specified in sources
- Trip Unit: Not applicable (connector, not breaker)
- Certifications: UL 498/1682/1686C2, CSA C22.2
- Housing Material: Black nylon
- Contact Material: Brass
- Environmental Rating: IP67, watertight
- Temperature Range: -40 to 75°C
- Compatibility: IEC 60309-2 pin and sleeve devices
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL430C5W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 600 600
Product Data
- UPC : 783585404509
- GTIN : 00783585404509
- Dimensions : 4.27 in Dia x 9.05 in L
- Weight : 5.19
