Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL420R12W

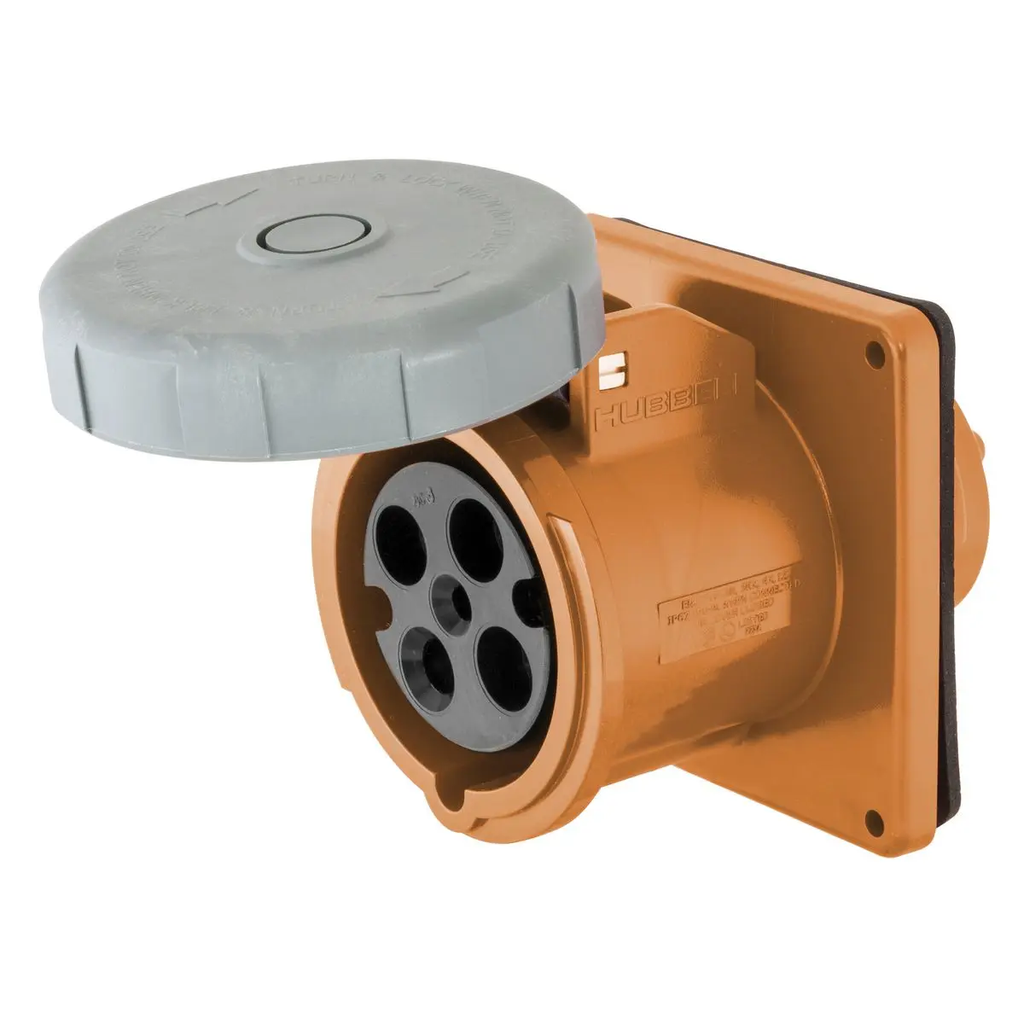

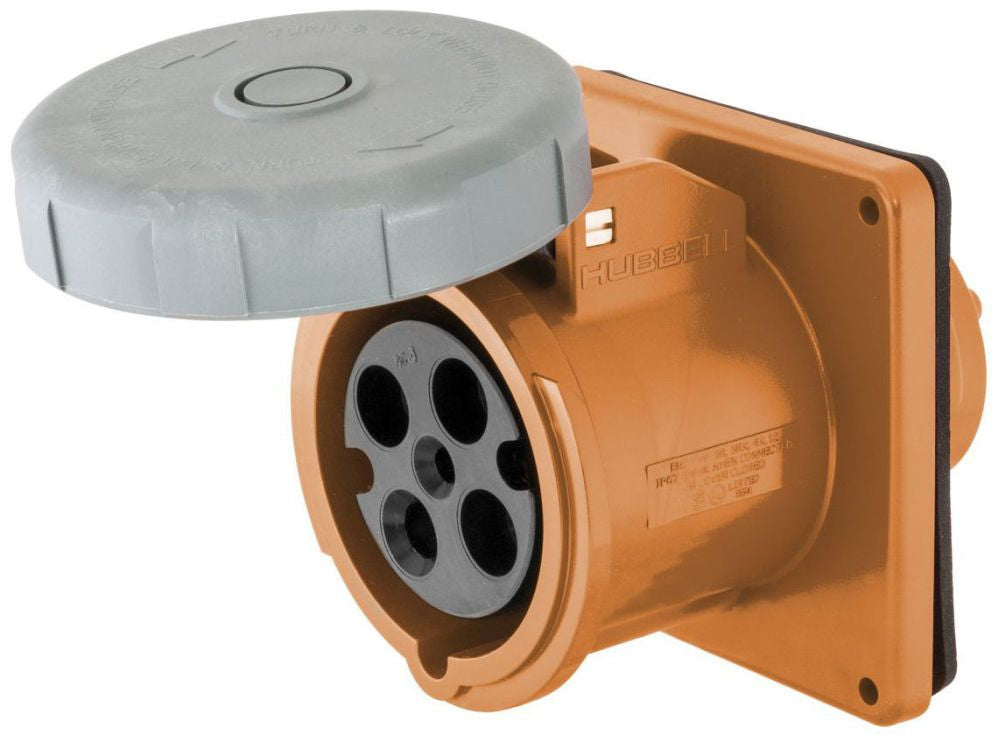

HBL420R12W is a Hubbell 20A, 125/250V, 3-pole watertight pin and sleeve flanged receptacle designed for reliable power distribution in demanding environments.This industrial-grade receptacle features a durable thermoplastic housing with brass contacts, providing excellent electrical conductivity and corrosion resistance. It supports 3 poles and 4 wires with a screw mounting type for secure installation. The device is UL listed and CSA certified, suitable for single-phase applications, and rated for 20 amps at 125/250 volts AC. Its watertight design ensures protection in harsh environmental conditions.
- Amperage: 20A
- Voltage: 125/250V AC
- Poles: 3
- Wires: 4
- Mounting Type: Screw Mount
- Housing Material: Thermoplastic (Orange)
- Contacts: Brass
- Watertight Design
- UL Listed and CSA Certified
- Single Phase
- Non-NEMA Standard
- IEC 60309 Compliant
Specifications
- Part Number: HBL420R12W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125/250
Product Data
- UPC : 783585404400
- GTIN : 0783585404400
- Dimensions : 3-3/4 in L x 3-3/4 in W
- Weight : 5.19
