Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL420P7W

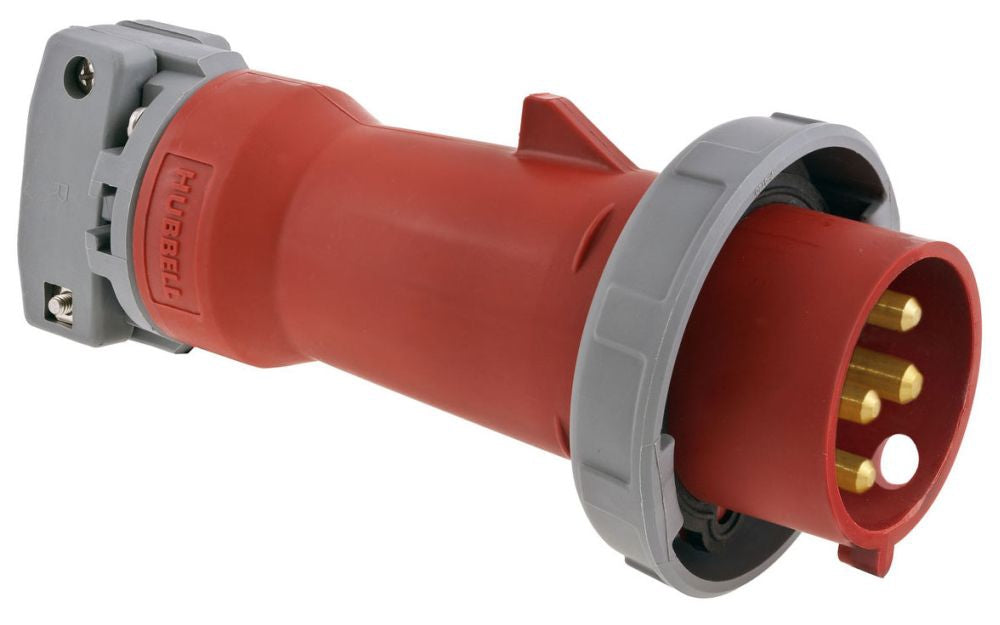

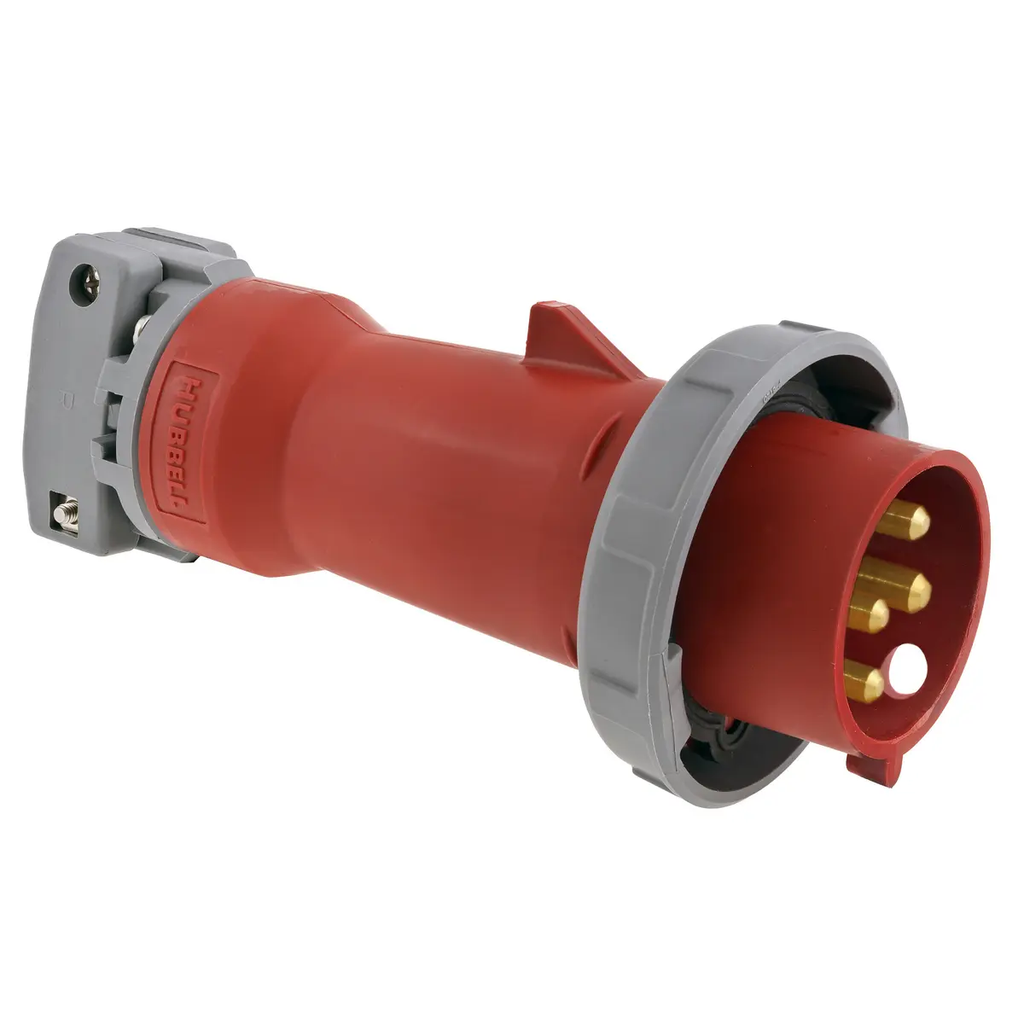

HBL420P7W is a 20 amp, 480 volt, 3-pole, 4-wire watertight IEC pin and sleeve plug from Hubbell designed for demanding industrial applications.This heavy-duty plug features a rugged one-piece non-metallic housing with UL Type 4X, 12, and IP69k environmental ratings for superior impact, chemical, dust, and water resistance. It is cord-mounted with pressure terminal screws and supports wire sizes from #14 to #10 AWG. The device meets IEC 309-1 and 309-2 standards and is suitable for three-phase 480 VAC systems.
- Key Specifications
- Amperage: 20 A
- Voltage: 480 VAC
- Poles: 3
- Wires: 4
- Mounting Type: Cord Mounted
- Type: Watertight Plug
- Material: Composite housing
- Environmental Ratings: UL Type 4X, 12, IP69k
- Connectivity: Pressure terminal screws
- Standards: IEC 309-1, IEC 309-2
- Color: Red
- Operating Temperature: -40°C to +75°C
- Part Number: HBL420P7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 480 480
- UPC : 783585404370
- GTIN : 00783585404370
- Dimensions : 3.19 in Dia x 7 in L
- Weight : 5.19
Specifications
