Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL420P5W

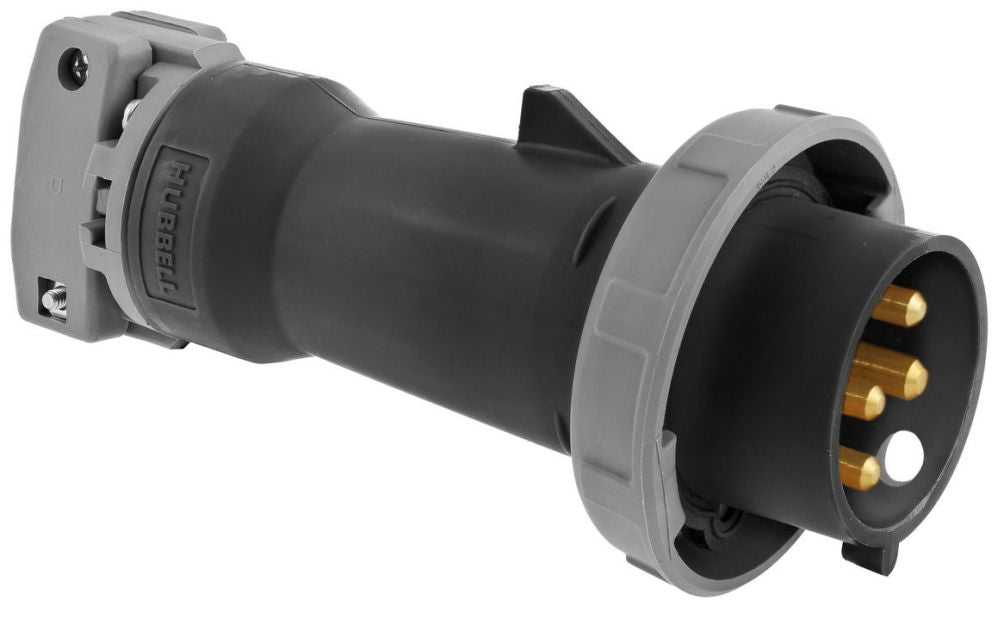

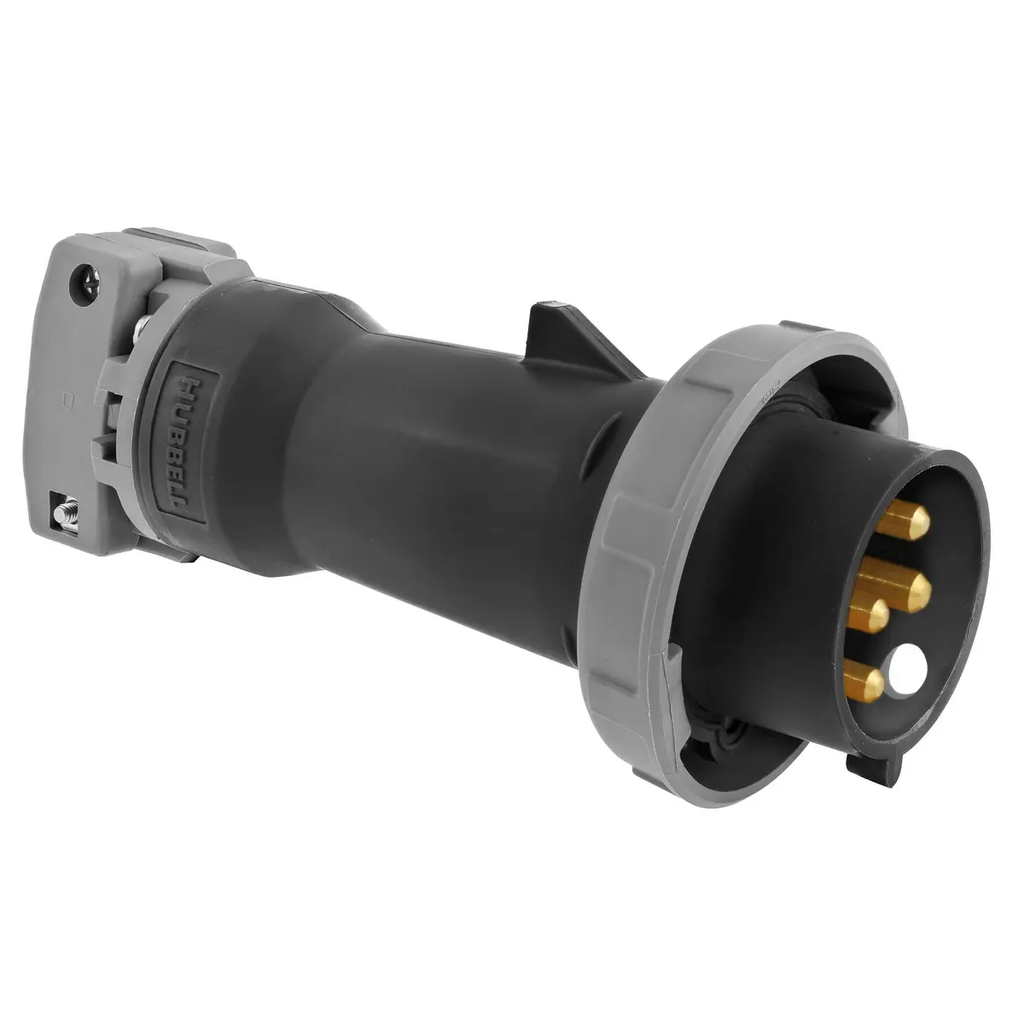

HBL420P5W is a Hubbell 20 amp, 600 volt, 3-pole, 4-wire watertight pin and sleeve male plug designed for heavy-duty industrial applications.This standard-sized, straight angled plug features a composite housing with Zytel ST801 nylon for impact and chemical resistance. It is cord-mounted with pressure screw terminals and rated for 3-phase 600 VAC service. The device is IP67 rated for watertight protection and complies with UL 498, IEC 309-1, IEC 309-2, and CSA C22.2 No. 182.1 standards. It supports conductor sizes from 14 to 10 AWG and includes grounding for safety.
- Key Specifications
- Amperage Rating: 20 A
- Voltage Rating: 600 V AC, 3-Phase
- Number of Poles: 3
- Number of Wires: 4
- Mounting Type: Cord Mounted
- Interrupt Rating: Certified for current interrupting at full rated current
- Material: Composite housing with Zytel ST801 nylon
- Degree of Protection: IP67 Watertight
- Terminal Connection: Pressure Screw Terminals
- Standards: UL 498, IEC 309-1, IEC 309-2, CSA C22.2 No. 182.1
- Phase: Three Phase
- Color: Black
Specifications
- Part Number: HBL420P5W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 600 600
Product Data
- UPC : 783585404363
- GTIN : 00783585404851
- Dimensions : 3.19 in Dia x 7 in L
- Weight : 0.3
