Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL420MI12W

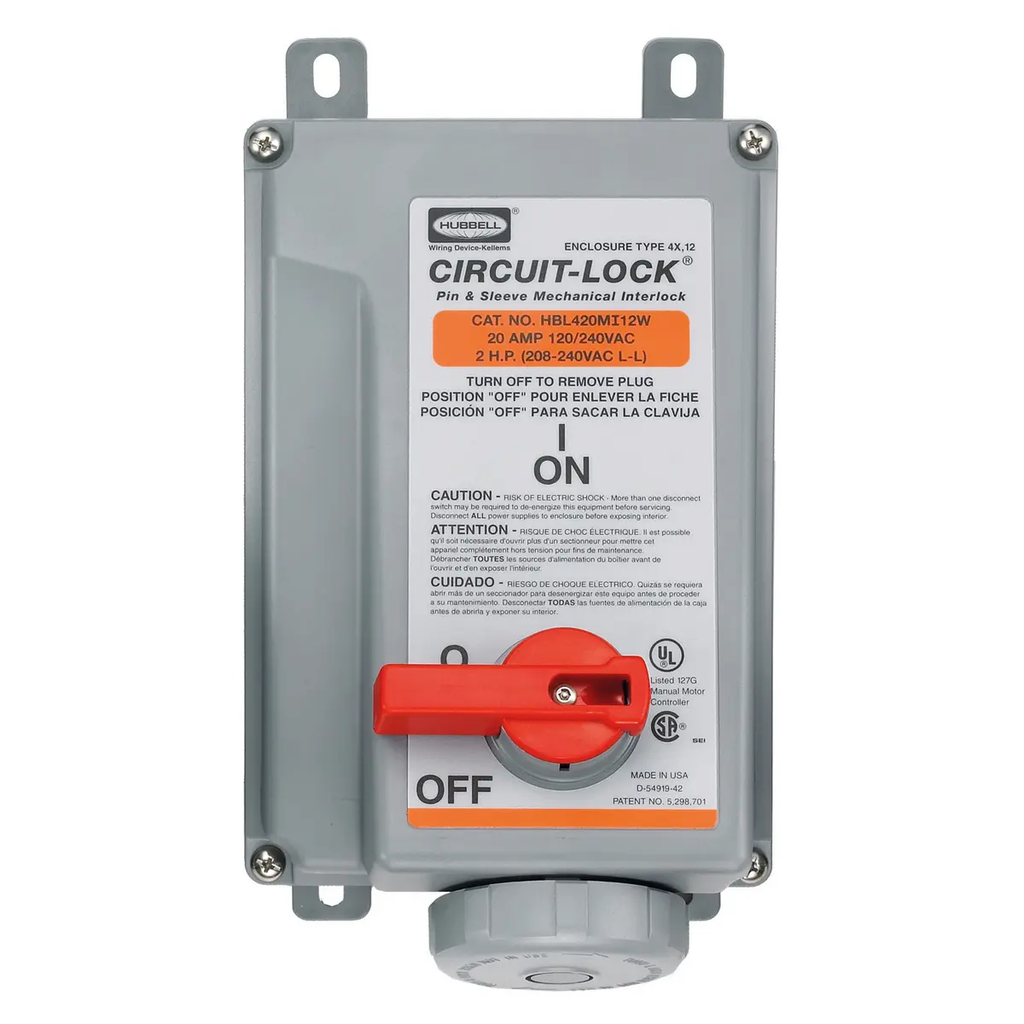

HBL420MI12W is a Hubbell industrial-grade mechanical interlock enclosure designed for secure, watertight electrical connections in demanding environments. This receptacle features a pin and sleeve design for reliable, interlocked switching and is rated for 20A, 125/250V, 3-pole, 4-wire grounding applications. Built with durable thermoplastic material and screw mounting hardware, it meets IEC 60309 standards and is UL/cUL Listed and CSA Certified for safety and compliance. The HBL420MI12W is ideal for high-ampacity watertight connections in industrial and commercial installations. Its robust construction ensures long-term reliability and resistance to harsh conditions. The device is non-fusible and features pressure terminal screws for easy wiring.
- Part Number: HBL420MI12W
- Manufacturer: Hubbell
- Amperage Rating: 20A
- Voltage Rating: 125/250V AC
- Poles: 3-Pole
- Wires: 4-Wire Grounding
- Mounting Type: Screw Mounting
- Interrupt Rating: Full rated current and voltage
- Series/Frame: Circuit-Lock
- Material: Thermoplastic
- Certifications: UL Listed, cUL Listed, CSA Certified
- Standards: IEC 60309, NEMA 4X, IP67
Specifications
- Part Number: HBL420MI12W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 120/240 125/250
Product Data
- UPC : 783585392912
- Dimensions : 8-3/4 in L x 7-3/4 in W x 11-1/2 in H
- Weight : 5.19
