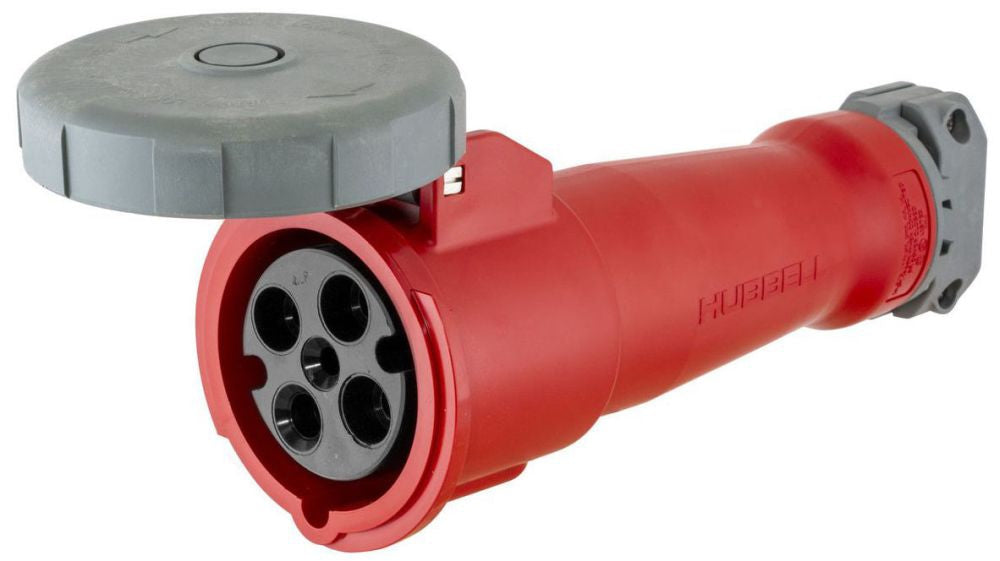

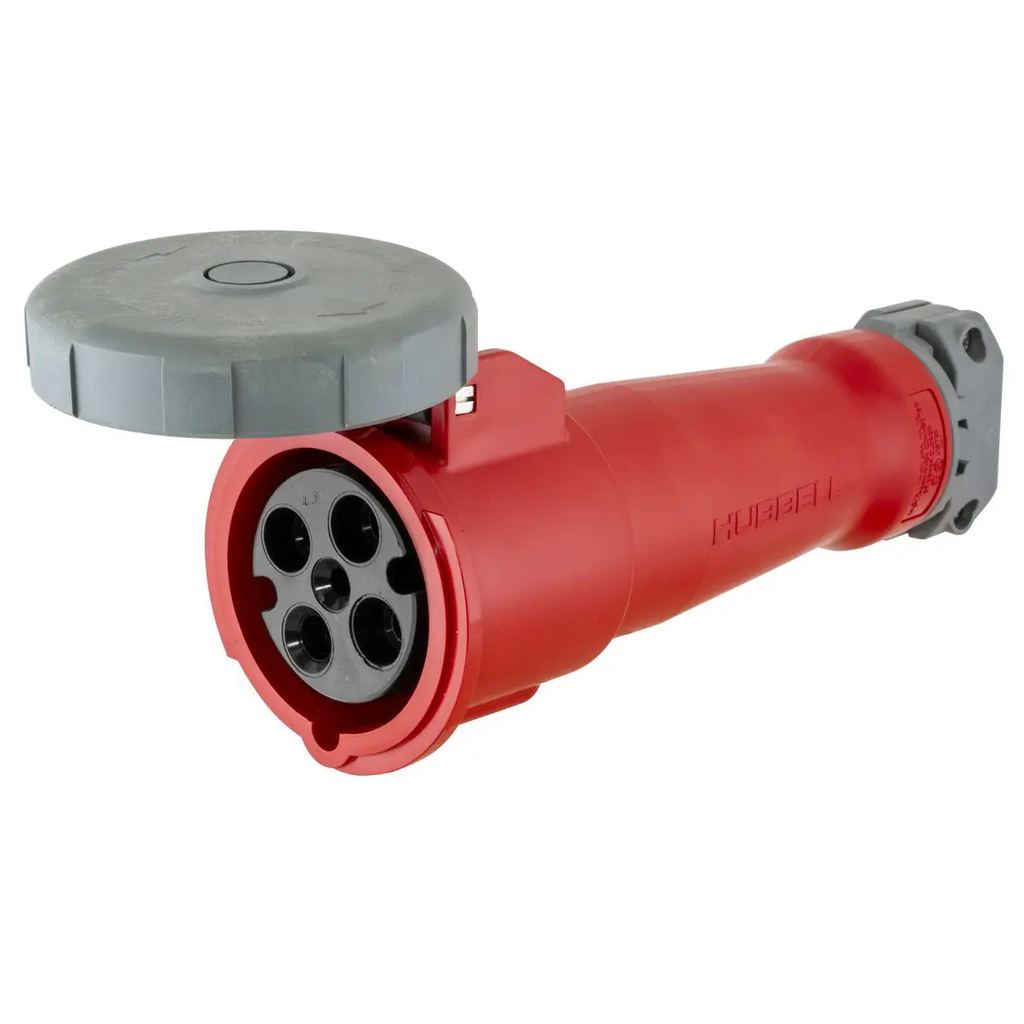

HBL420C7W - Hubbell 20A 480V 3-Pole 4-Wire Watertight Pin and Sleeve Connector, Red, Industrial Grade, IP67, Composite, 3.66" Dia x 7.9" L

HBL420C7W

HBL420C7W is a heavy-duty, watertight female pin and sleeve connector designed for industrial 3-phase power applications. This Hubbell connector features a robust composite housing, pressure screw terminals, and is rated for 20A at 480V AC, making it ideal for demanding environments. The HBL420C7W connector is engineered for reliable, secure connections in harsh conditions. It features a polarized design, Zytel ST801 nylon material, and an IP67-rated enclosure for protection against dust and water ingress. The connector supports a cable outer diameter range of 0.33" to 0.83" and operates in temperatures from -40°C to +75°C. Its industrial-grade construction ensures durability and long-term performance in commercial and industrial installations.

• Amperage Rating: 20A
• Voltage Rating: 480V AC
• Poles: 3
• Wires: 4
• Mounting Type: Watertight Connector Body
• Interrupt Rating: Full rated current interruption
• Series/Frame: HBL Heavy Duty
• Material: Composite (Zytel ST801 Nylon)
• Enclosure Rating: IP67
• Operating Temperature: -40°C to +75°C
• Terminal Type: Pressure Screw
• Cable OD Range: 0.33" to 0.83"
• Color: Red
• Dimensions: 3.66" Dia x 7.9" L
• Weight: 1.25 lb
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL420C7W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Locking Devices
• Voltage : 480 480

Product Data

• UPC : 783585404318
• Dimensions : 7.9 in L x 3.66 in H
• Weight : 0.5
