2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL4100R12W

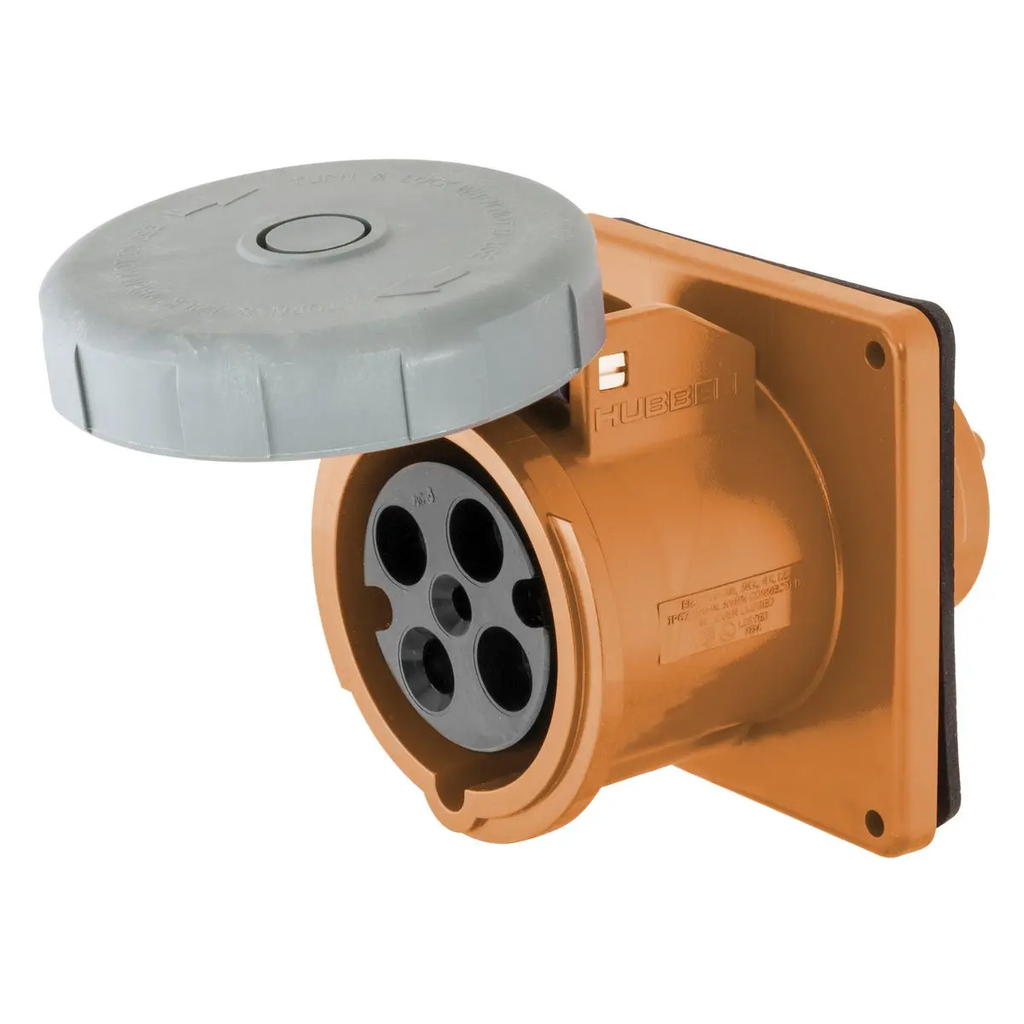

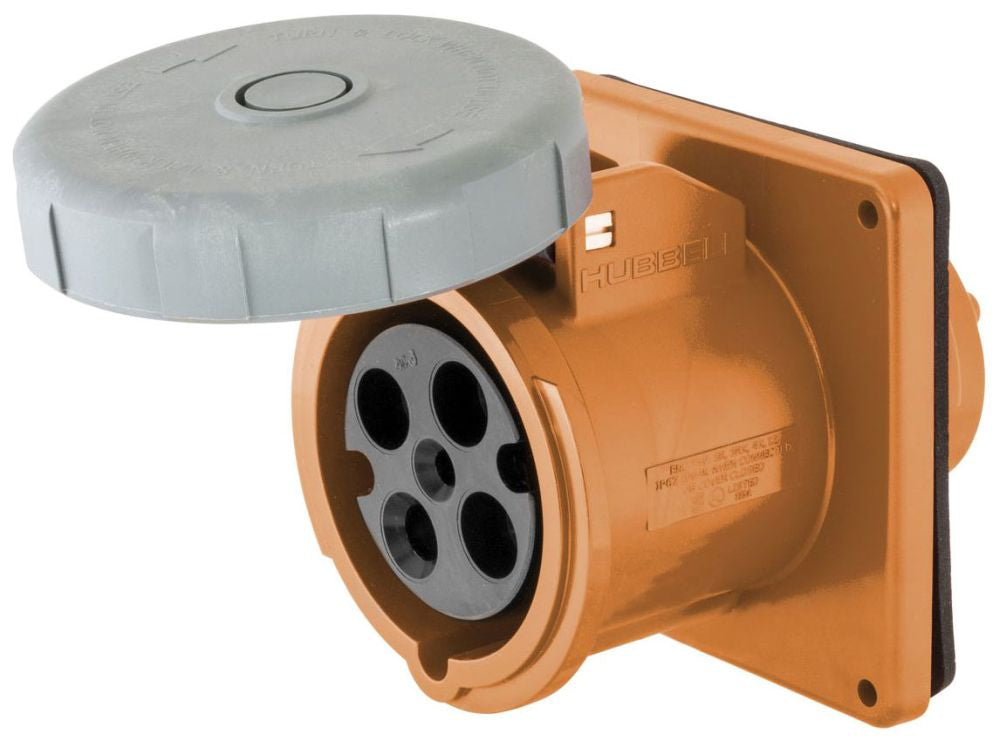

HBL4100R12W is a heavy-duty, watertight pin and sleeve flanged receptacle designed for demanding industrial applications requiring reliable, high-amperage connections. This Hubbell receptacle features a rugged thermoplastic housing, corrosion-resistant self-closing gasketed cover, and pressure terminal screws for secure wire attachment. It is rated for 100A at 125/250V AC, with 3 poles and 4 wires, making it ideal for single-phase, industrial-grade power distribution. The receptacle is IP67 rated for dust and water resistance, and features a spring cover for added protection.
- Amperage Rating: 100A
- Voltage Rating: 125/250V AC
- Number of Poles: 3-Pole
- Number of Wires: 4-Wire
- Mounting Type: Flanged
- Enclosure Type: IP67
- Material: Thermoplastic
- Phase: Single Phase
- Wire Size: #3 AWG to #1/0 AWG
- Terminal Type: Pressure Screw
- Color: Orange
- Certifications: UL1682 Listed, RoHS Compliant
Specifications
- Part Number: HBL4100R12W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 125/250 125/250
Product Data
- UPC : 783585404080
- GTIN : 00783585404080
- Dimensions : 5-1/2 in L x 5-1/2 in W
- Weight : 5.19
