Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL4100P7W

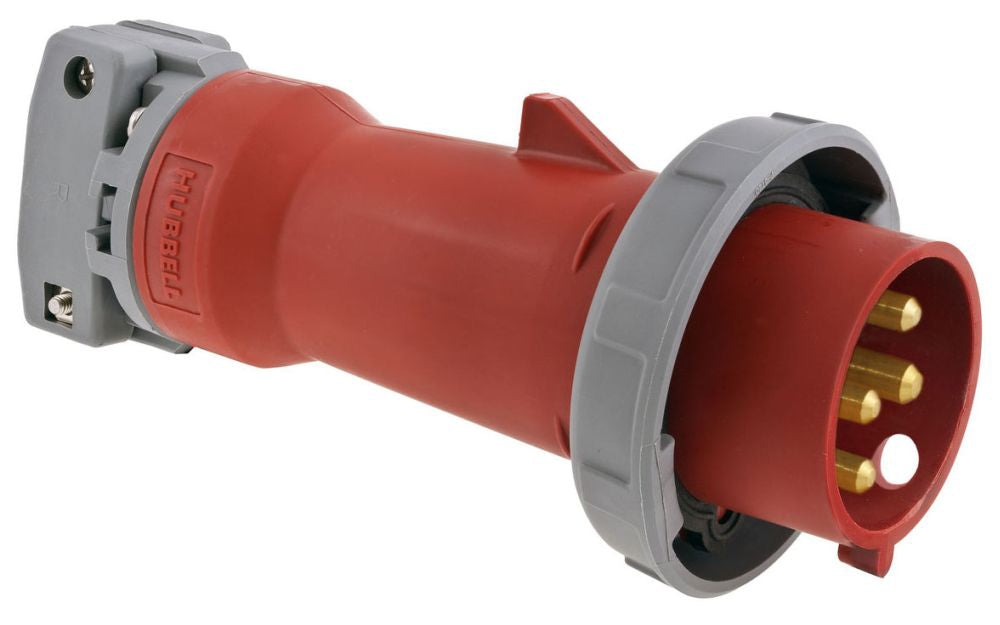

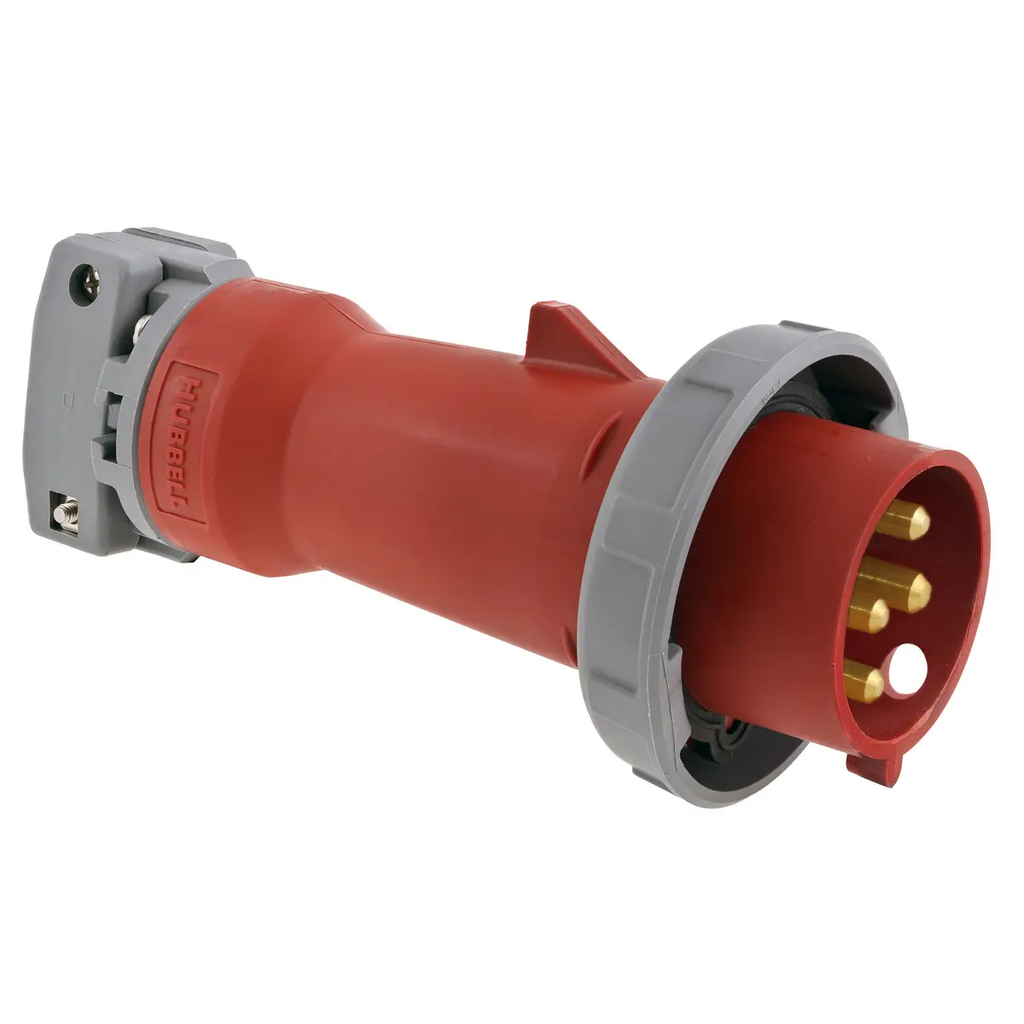

HBL4100P7W is a Hubbell industrial-grade, watertight pin and sleeve plug designed for high-ampacity, three-phase applications.
This heavy-duty IEC 60309 male plug features a rugged composite housing, solid one-piece pins for reliable contact, and a gasketed sealing ring for superior water resistance. It is certified for current interrupting at full rated current and is suitable for demanding environments where durability and safety are critical.
-
Key Specifications
- Amperage: 100A
- Voltage: 480V AC, 3-phase
- Poles: 3-pole, 4-wire (includes ground)
- Mounting Type: Cord mounted, portable
- Interrupt Rating: Certified for current interrupting at full rated current
- Series/Frame: HBL series, IEC 60309 pin and sleeve
- Trip Unit: Not applicable (plug only)
- Certifications: UL listed, IP67/IP68/IP69K watertight, meets NEC 430.109(F) for horsepower-rated disconnects
- Material: Composite (Zytel ST801 Nylon)
- Color: Red
- Wire Size: #3 AWG to #1/0 AWG
- Environmental: Watertight, -40 to 75°C operating range
- Dimensions: 4.92" diameter x 12.63" length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL4100P7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 480 480
Product Data
- UPC : 783585404042
- GTIN : 00783585404042
- Dimensions : 4.92 in Dia x 12.63 in L
- Weight : 5.19
