Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL4100P12W

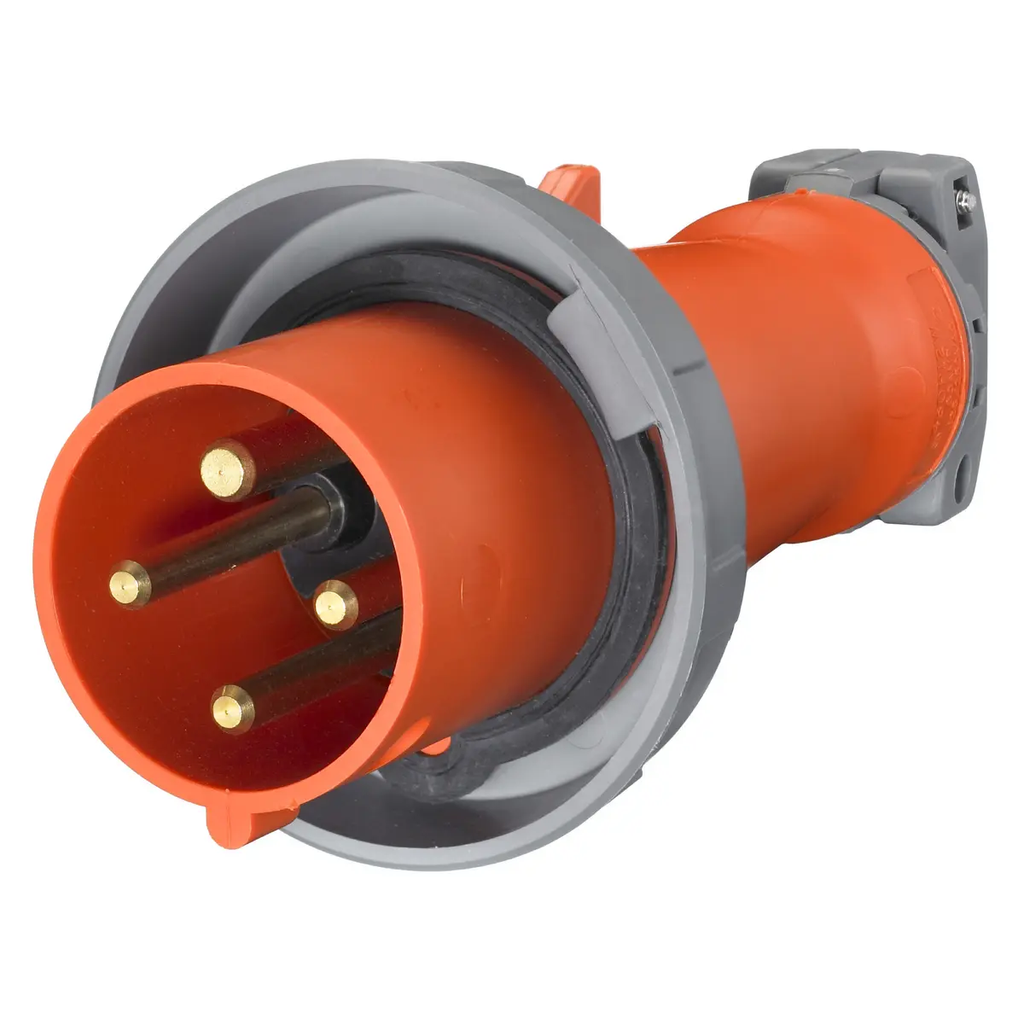

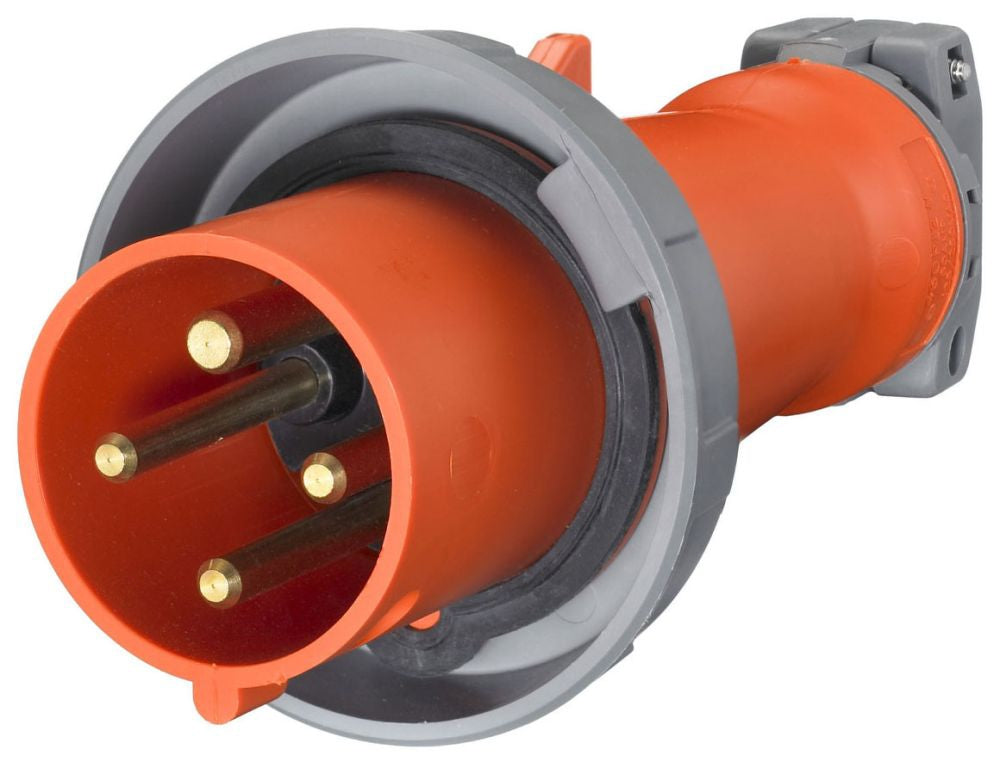

HBL4100P12W is a Hubbell 100 amp, 125/250 volt, 3-pole 4-wire watertight pin and sleeve plug designed for industrial-grade portable power connections.This heavy-duty male plug features a one-piece composite housing with a gasketed sealing ring providing an IP67 watertight rating, pressure screw terminals, and is rated for 15 horsepower. It is UL listed and CSA certified for reliable and safe use in harsh environments.
- Key Specifications
- Amperage Rating: 100 A
- Voltage Rating: 125/250 VAC
- Poles: 3
- Wires: 4
- Horsepower: 15 hp
- Enclosure Rating: IP67 Watertight
- Material: Composite housing
- Terminal Type: Pressure screw terminals
- Mounting Type: Cord mount
- Color: Orange
- Certifications: UL Listed, CSA Certified
- Operating Temperature: -40 to 75°C
Specifications
- Part Number: HBL4100P12W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 125/250 125/250
Product Data
- UPC : 783585404028
- GTIN : 00783585404028
- Dimensions : 4.92 in Dia x 12.63 in L
- Weight : 5.19
