Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL4100MI7W

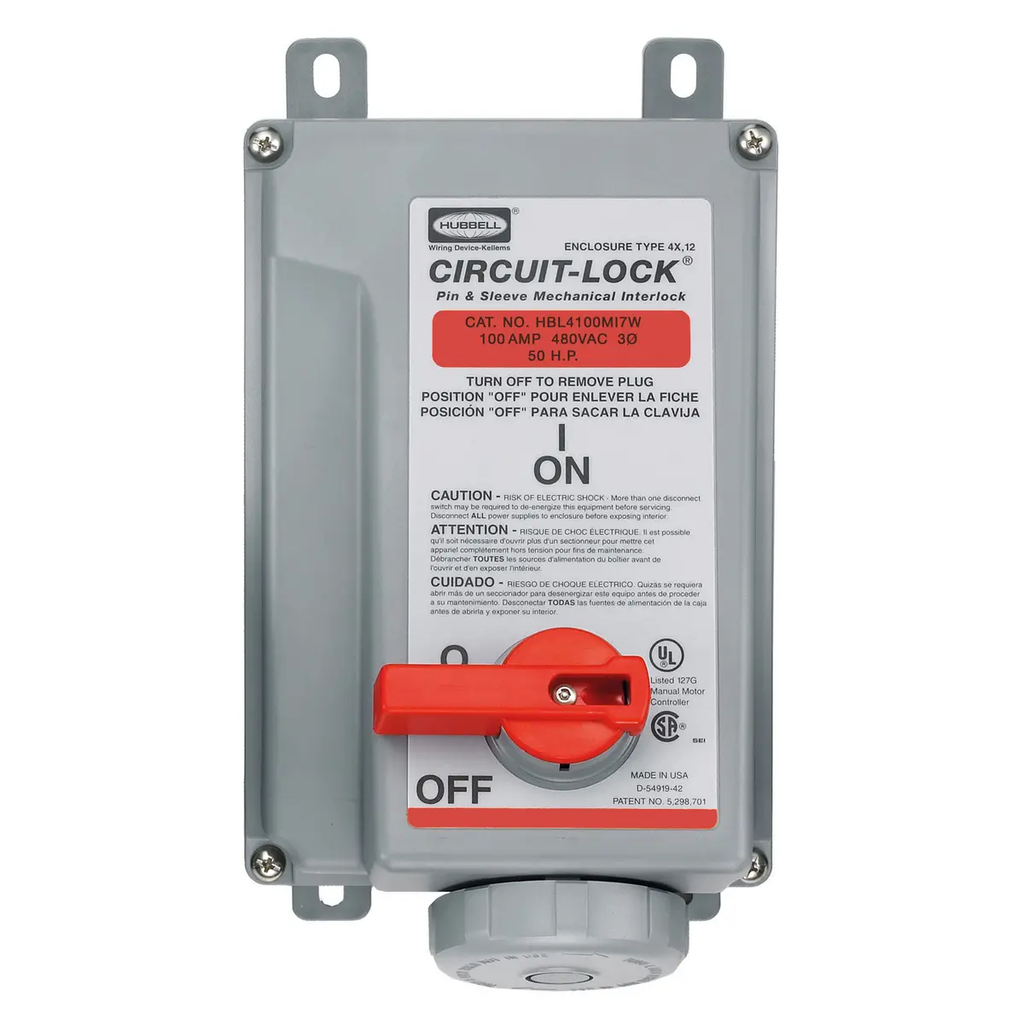

HBL4100MI7W is a Hubbell heavy-duty, mechanically interlocked pin & sleeve receptacle designed for high-ampacity, watertight industrial applications.
This industrial-grade female receptacle features a thermoplastic enclosure, mechanical interlock for safety, and is rated for 100A, 3-phase, 480V AC service. It is certified for current interrupting at full rated current and voltage, and is suitable for use in demanding environments where reliable, secure power connections are essential.
-
Key Specifications
- Amperage: 100A
- Voltage: 3-phase 480V AC
- Poles: 3-pole, 4-wire (includes ground)
- Mounting Type: Screw mounting, wall mount
- Interrupt Rating: Certified for current interrupting at full rated current and voltage
- Series/Frame: Non-fused, standard service
- Trip Unit: Not applicable (mechanically interlocked, non-fused)
- Certifications: UL Listed
- Enclosure: Watertight, IP67, NEMA 4X
- Wire Size: #3 AWG to #1/0 AWG
- Material: Thermoplastic base and face, neoprene gasket and shaft seal
- Color: Red
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL4100MI7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 480 480
Product Data
- UPC : 783585405889
- GTIN : 00783585405889
- Dimensions : 12.75 in H x 8.75 in W x 9.3 in D 8.75 in W x 9.3 in D x 12.75 in H
- Weight : 0.5
