HBL3768 - Hubbell 50A 250V DC/600V AC 3-Pole 4-Wire Metallic Flanged Inlet Screw Mount

HBL3768

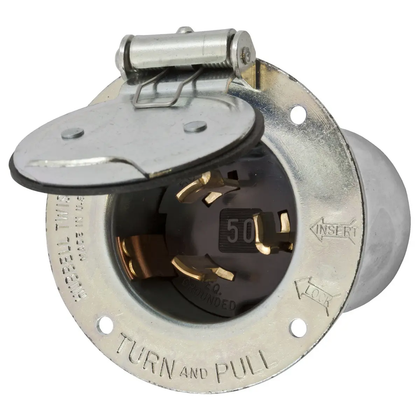

HBL3768 is a 50 Amp, 250V DC/600V AC, 3-Pole 4-Wire metallic flanged inlet with screw mounting designed for extra heavy duty industrial applications.This Hubbell Wiring Device-Kellems flanged inlet features a zinc-plated steel casing with a thermoset interior and lift cover. It supports 50A current rating, 3-phase power, and accommodates wire sizes from #8 AWG to #4 AWG. The device is rated for indoor dry environments unless protected by additional means and has a dielectric strength of at least 2,000V. It uses pressure terminal screws for connectivity and is non-NEMA with screw mounting hardware.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 250 VDC / 600 VAC
• Poles: 3-Pole
• Wires: 4-Wire Grounding
• Mounting Type: Screw Mount
• Material: Zinc Plated Steel
• Device Type: Flanged Inlet
• Environmental Conditions: Indoor Dry Unless Protected
• Dielectric Strength: 2,000V Minimum
• Wire Size Range: #8 AWG to #4 AWG
• Phase: Three Phase
• Terminal Type: Pressure Terminal Screws
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HBL3768
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 600 /250 DC



Product Data

• UPC : 783585236452
• GTIN : 00783585236452
• Dimensions : 2.17 x 3.5 x 2.56 2.17 x 3.5 x 2.56 in 2-11/64 in Dia x 2-9/16 in L
• Weight : 0.5
