Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL3763C

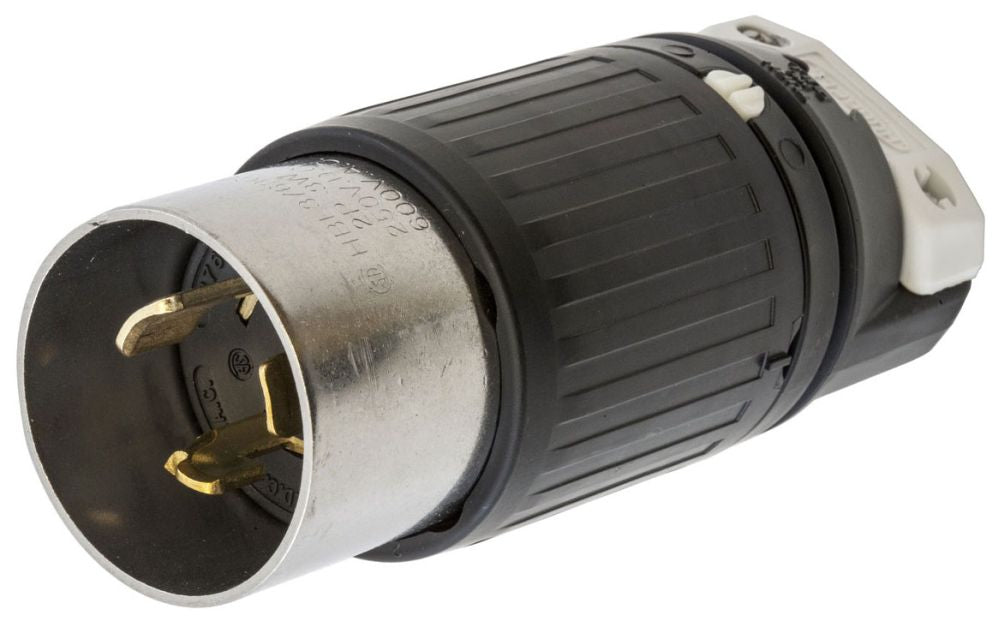

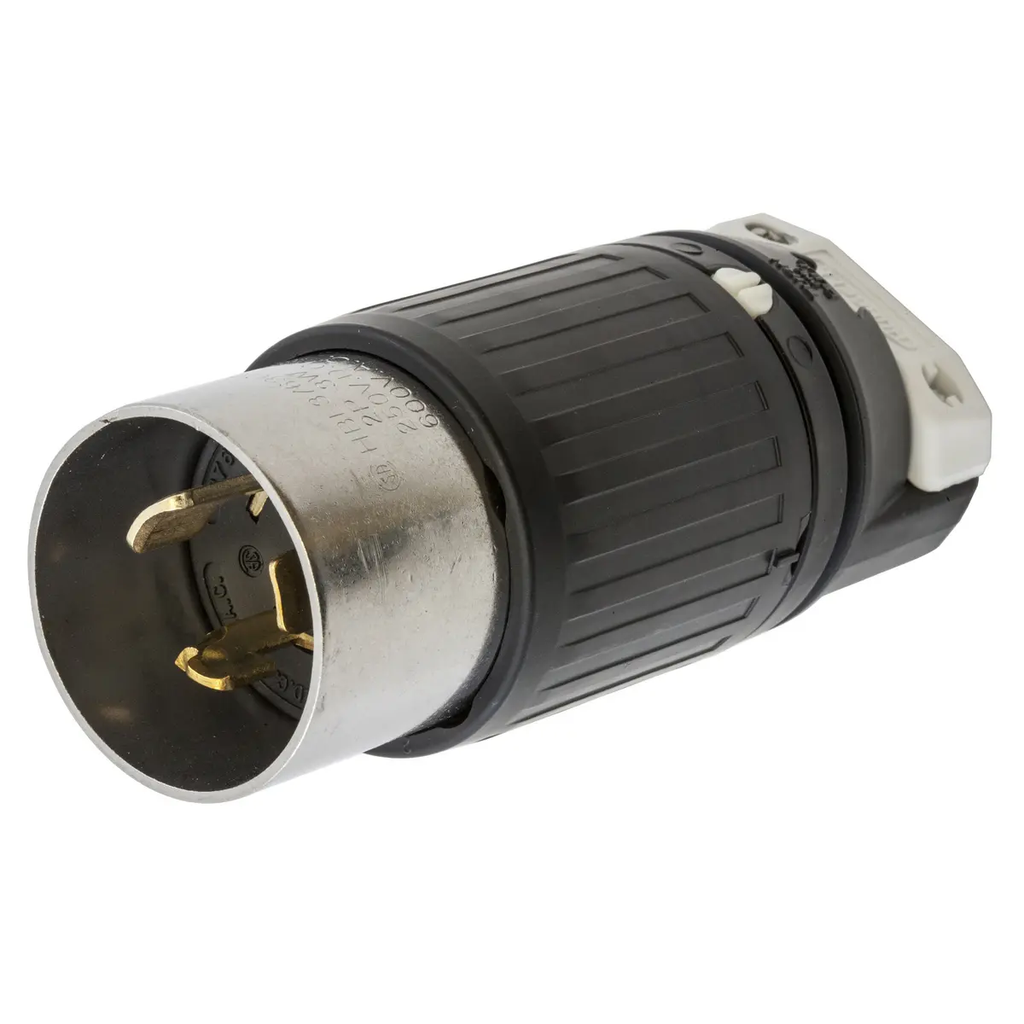

HBL3763C is a 50 amp, 600 VAC/250 VDC, 2-pole 3-wire grounding twist-lock plug from Hubbell designed for extra heavy duty industrial applications.This Hubbell locking plug features a durable nylon housing with a thermoplastic polyester interior for excellent heat resistance and impact durability. It includes a stainless steel shroud for protection and safety, offset cord grip jaws for secure conductor holding, and box terminals with hex socket threaded slugs for high clamping pressure without strand damage. The plug is non-NEMA, rated for 50 amps, and supports wire sizes from #8 AWG to #4 AWG. It is TAA compliant and RoHS compliant, suitable for harsh environments requiring reliable power connections.
- Amperage: 50A
- Voltage: 600 VAC / 250 VDC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Twist-Lock Plug
- Housing Material: Nylon with thermoplastic polyester interior
- Cord Range: 0.830" - 1.250" diameter
- Terminal Type: Box terminal with hex socket threaded slug
- Standards: RoHS Compliant, TAA Compliant
- Color: Black and White
- Application: Extra Heavy Duty Industrial
Specifications
- Part Number: HBL3763C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 600 /250 DC
Product Data
- UPC : 783585235615
- GTIN : 783585235615
- Dimensions : 2.56 in L x 2.56 in W x 6.37 in H 2.56 x 2.56 x 6.37 in
- Weight : 0.4
