HBL3762C - Hubbell 50A 250V DC/600V AC 2-Pole 3-Wire Twist-Lock Connector Nylon Housing

HBL3762C

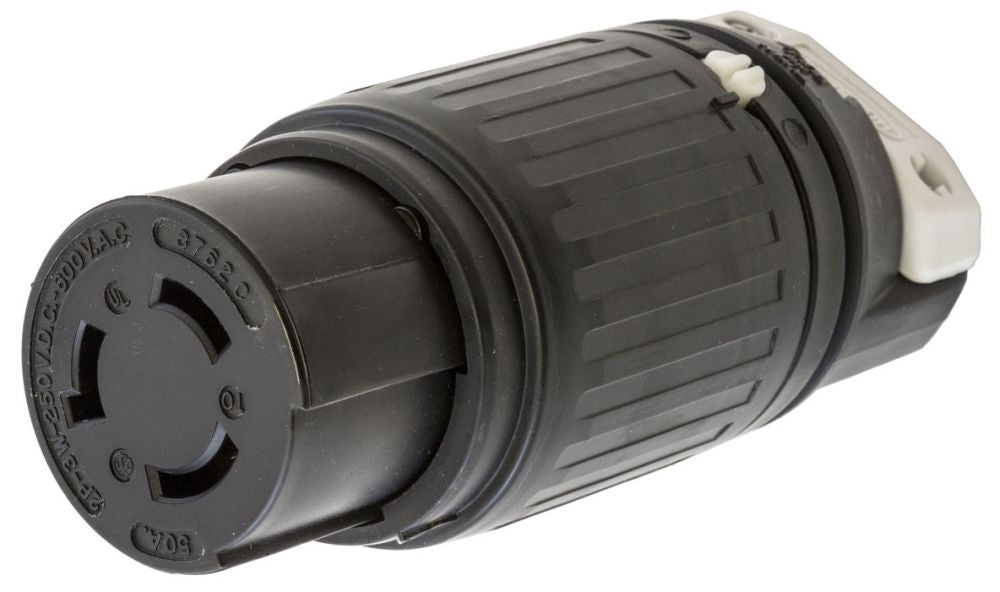

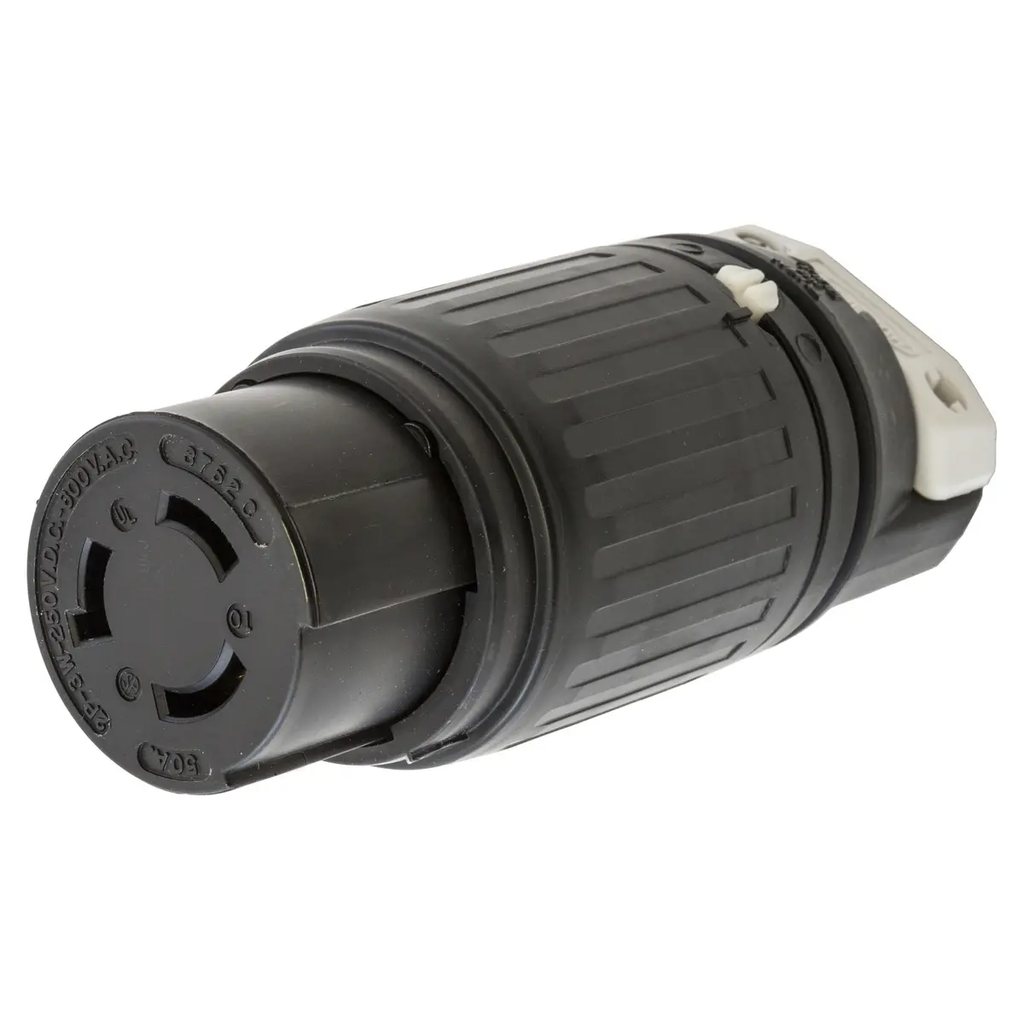

HBL3762C is a Hubbell 50 Amp, 250V DC/600V AC, 2-pole, 3-wire grounding twist-lock connector with a durable nylon housing.This female Insulgrip® connector body features a thermoplastic polyester interior, pressure terminal screws, and supports cable ranges from 0.830" to 1.250". It is designed for heavy-duty industrial applications, withstanding continuous temperatures up to 75°C and a dielectric strength of 2000V minimum. The connector is non-NEMA, polarized, and suitable for wire sizes #8 AWG to #4 AWG.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 250 VDC / 600 VAC
• Number of Poles: 2
• Number of Wires: 3 (Grounding)
• Cable Range: 0.830" - 1.250"
• Wire Size: #8 AWG to #4 AWG
• Housing Material: Nylon with thermoplastic polyester interior
• Connection Type: Pressure terminal screws
• Operating Temperature: -40°C to 75°C continuous
• Dielectric Strength: 2000 V minimum
• Mounting Type: Cord mounted
• Color: Black and White

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL3762C
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 600 /250 DC

Product Data

• UPC : 783585235554
• GTIN : 00783585235615
• Dimensions : 2.56 x 2.56 x 6.50 in 2.563 in Dia x 6.5 in L 6.37 in L x 2.56 in W x 2.56 in H
• Weight : 0.5
