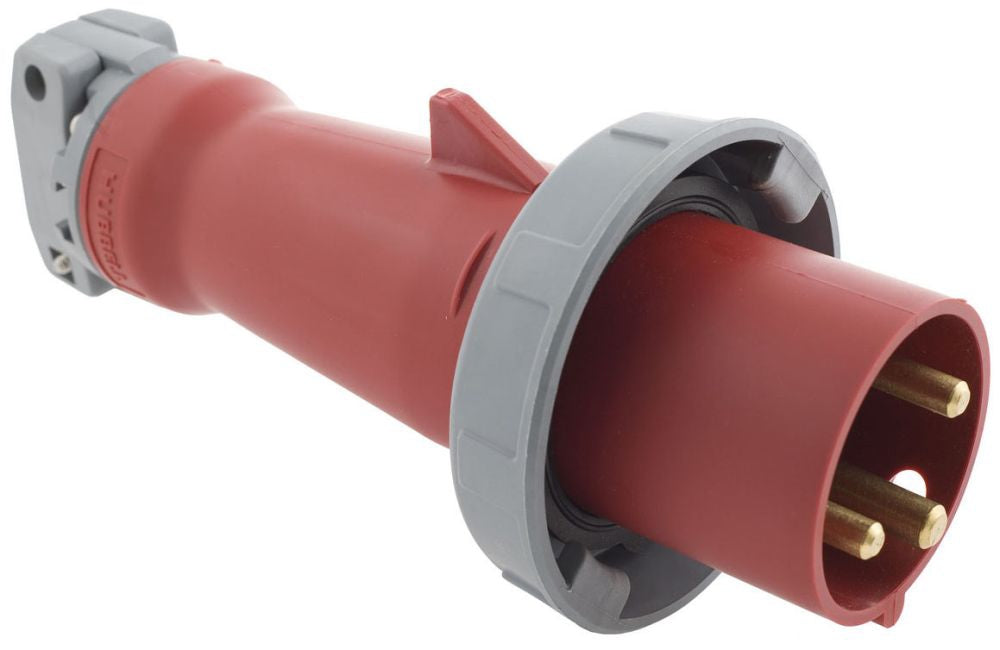

HBL360P7W - Hubbell 60A 480V 2-Pole 3-Wire Watertight Pin and Sleeve Male Plug

HBL360P7W

HBL360P7W is a heavy-duty IEC pin and sleeve male plug designed for demanding industrial applications requiring reliable, watertight connections. This plug features a rugged, one-piece housing and a thermoset polyester contact carrier for high resistance to electrical tracking and superior durability under high temperatures or arcing conditions. The external cord grip provides excellent strain relief for conductors, and the plug is rated for high ampacity connections with pressure terminal screws for secure wiring. Hubbell's HBL360P7W plug is constructed with a red composite housing and brass contacts, offering impact resistance and watertight performance. It is suitable for single-phase, 2-pole, 3-wire grounding applications and is recognized as an approved disconnecting means per NEC 430.109(F). The plug is cord-mounted and supports conductor sizes from #8 AWG to #2 AWG, making it ideal for a variety of portable power needs.

• Part Number: HBL360P7W
• Manufacturer: Hubbell
• Amperage Rating: 60 A
• Voltage Rating: 480 VAC
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Mounting Type: Cord Mounted
• Connectivity: Pressure Terminal Screws
• Wire Size: #8 AWG to #2 AWG
• Phase: Single Phase
• Housing Material: Composite
• Contacts: Brass
• IP Rating: IP69K Watertight
• Industry Standards: IEC 60309, UL 1682/1686C2, CSA C22.2
• Application: High Ampacity Connections

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL360P7W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Pin & Sleeve
• Voltage : 480 480

Product Data

• UPC : 783585403830
• GTIN : 783585403830
• Dimensions : 4.49 in Dia x 10.15 in L
• Weight : 0.4
