Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL3523C

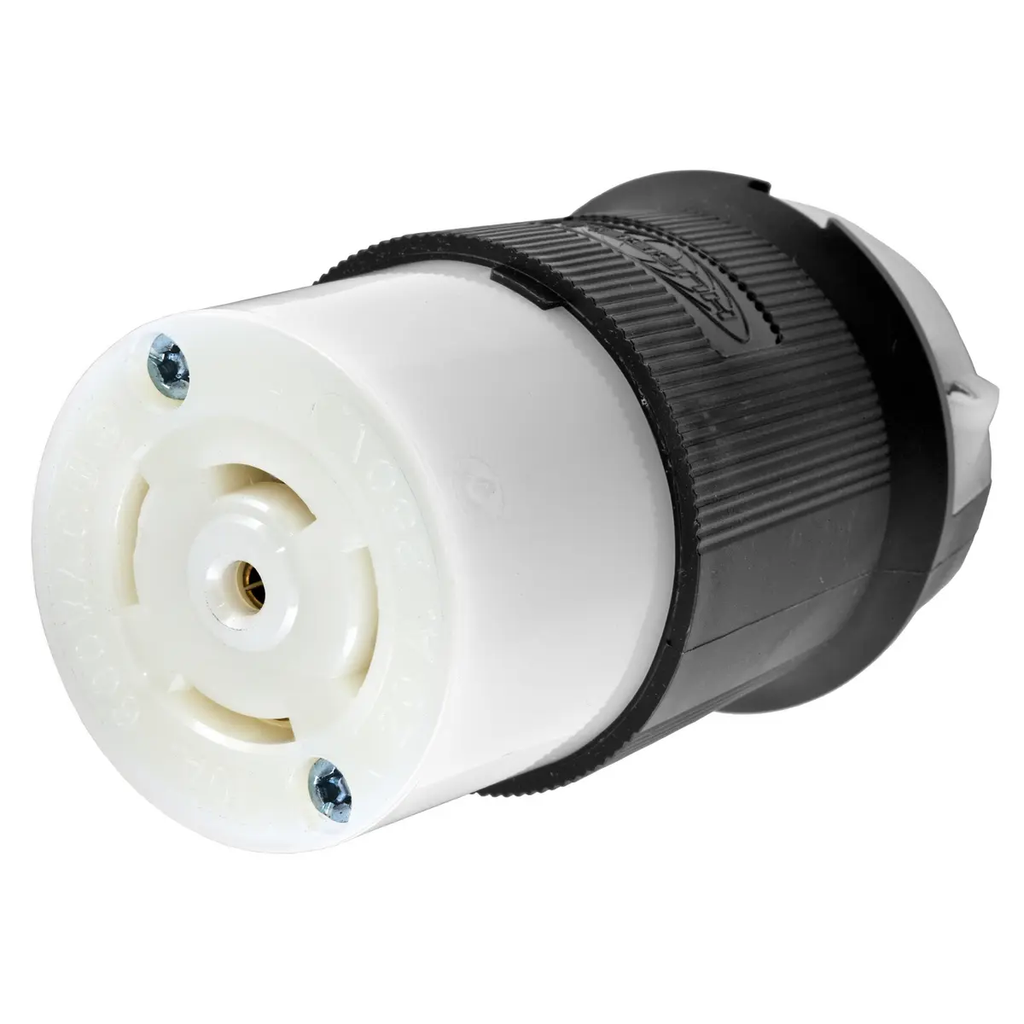

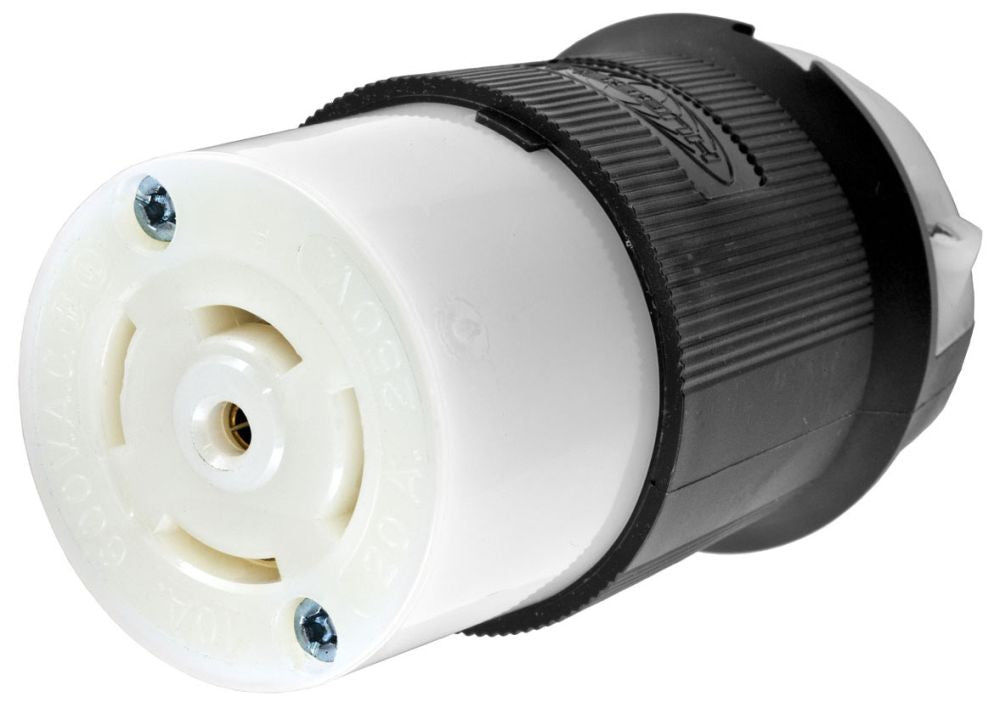

HBL3523C is a Hubbell heavy-duty, cord-mounted, 4-pole 5-wire locking connector designed for industrial applications.
This connector features a non-NEMA twist-lock configuration, pressure terminal screw connectivity, and is constructed from impact- and chemical-resistant nylon. It is rated for 20A at 250V and 10A at 600V, with a maximum continuous operating temperature of 75°C and a minimum of -40°C. The HBL3523C is certified for current interrupting at full rated current and meets UL 94/498 and CSA C22.2 standards.
Key Specifications
- Amperage: 20A at 250V, 10A at 600V
- Voltage: 250V DC, 600V AC
- Poles: 4
- Wires: 5 (including ground)
- Mounting Type: Cord mounted
- Interrupt Rating: Certified for current interrupting at full rated current
- Series/Frame: HBL Series
- Trip Unit: Not applicable
- Certifications: UL 94/498, CSA C22.2
- Material: Nylon, impact and chemical resistant
- Enclosure: IP20
- Operating Temperature: -40°C to 75°C
- Cord Range: 0.35" to 1.15" diameter
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL3523C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Family : HBL
- Voltage : 600 /250 DC
Product Data
- UPC : 783585039923
- GTIN : 00783585039923
- Dimensions : 2.33 x 2.33 x 3.86 in 3.86 in L x 2.33 in W
- Weight : 0.5
