Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description
HBL3331C

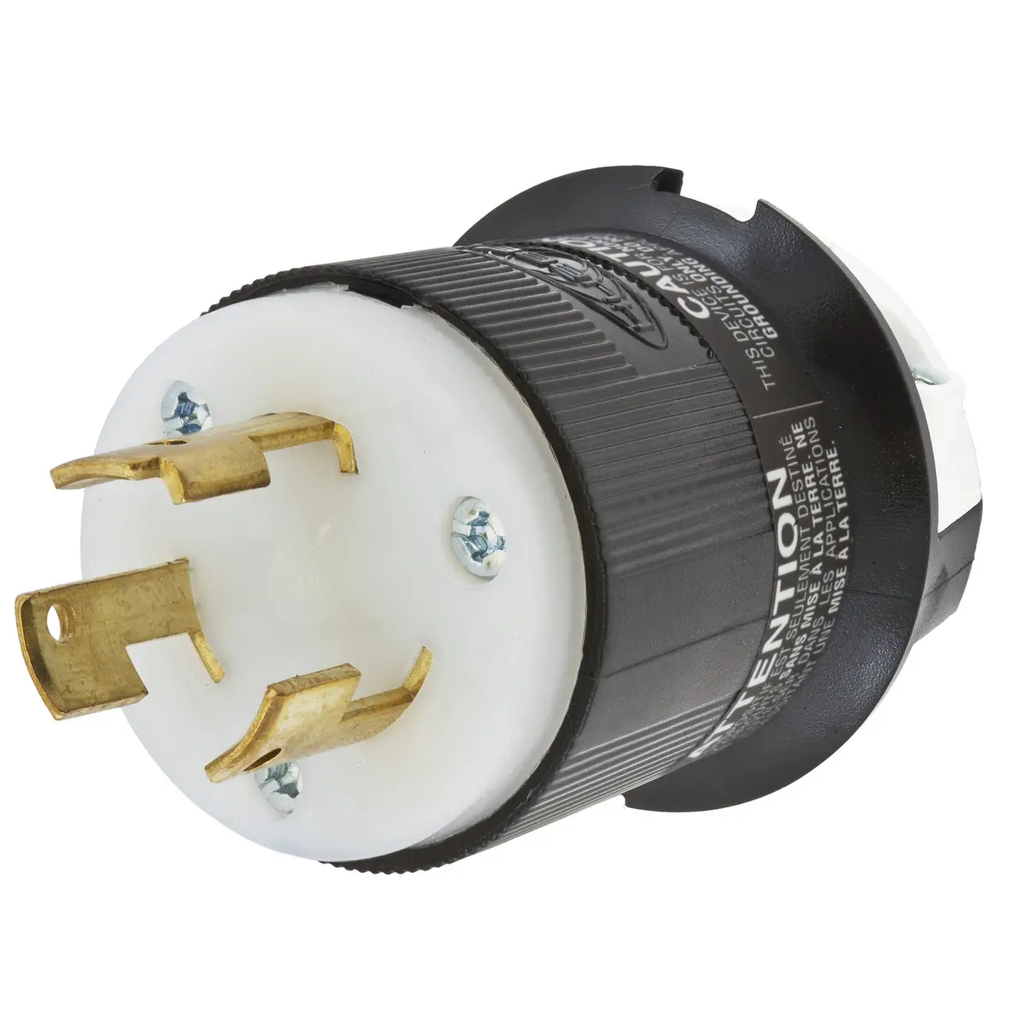

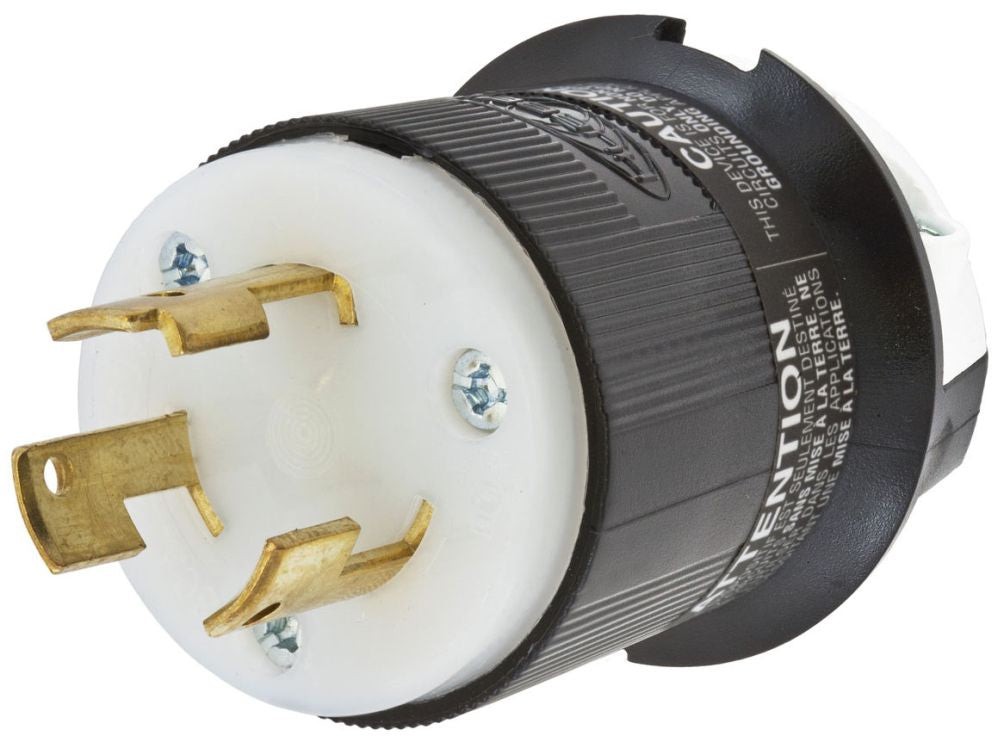

HBL3331C is a 30A, 125/250VAC, 3-pole, 3-wire, non-NEMA locking plug designed for heavy-duty industrial applications. This Hubbell Insulgrip Twist-Lock plug features a non-grounding, polarized configuration for secure connections in demanding environments. Constructed from durable nylon, it offers chemical and impact resistance for reliable performance. The HBL3331C plug is rated for continuous use in dry locations and is certified for current interrupting at full rated current. Its non-NEMA design allows for flexible compatibility with various equipment setups. The plug is suitable for conductor sizes 16-8 AWG and features a robust face diameter for secure mating.
- Part Number: HBL3331C
- Manufacturer: Hubbell Wiring Device-Kellems
- Amperage: 30A
- Voltage: 125/250VAC
- Poles: 3
- Wires: 3
- Ground Type: Non-Grounding
- Mounting Type: Cord Connector
- Interrupt Rating: Full Rated Current
- Series/Frame: Insulgrip, Twist-Lock
- Material: Nylon
- Certifications: UL 94/498, CSA C22.2
Specifications
- Part Number: HBL3331C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 125/250 125/250
Product Data
- UPC : 783585039817
- GTIN : 783585039817
- Dimensions : 1.97 in Dia x 2.75 in L 2.33 x 2.33 x 2.75 in
- Weight : 5.19
