Product Info
- Manufacturer:Hubbell
- Sub-Category:Pin & Sleeve
Description

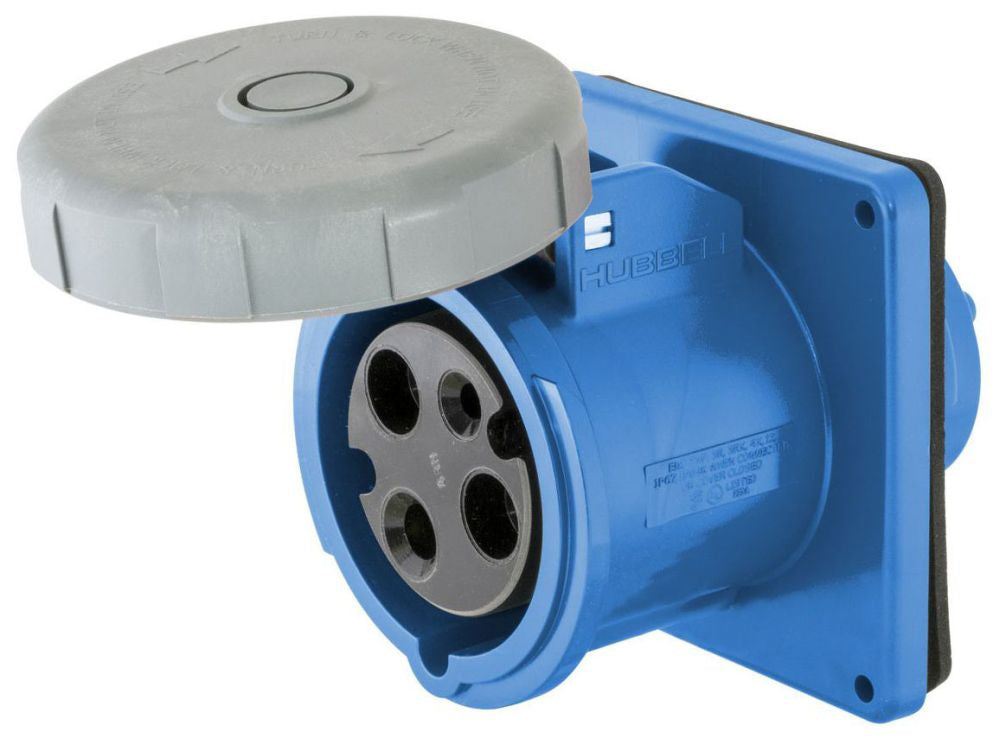

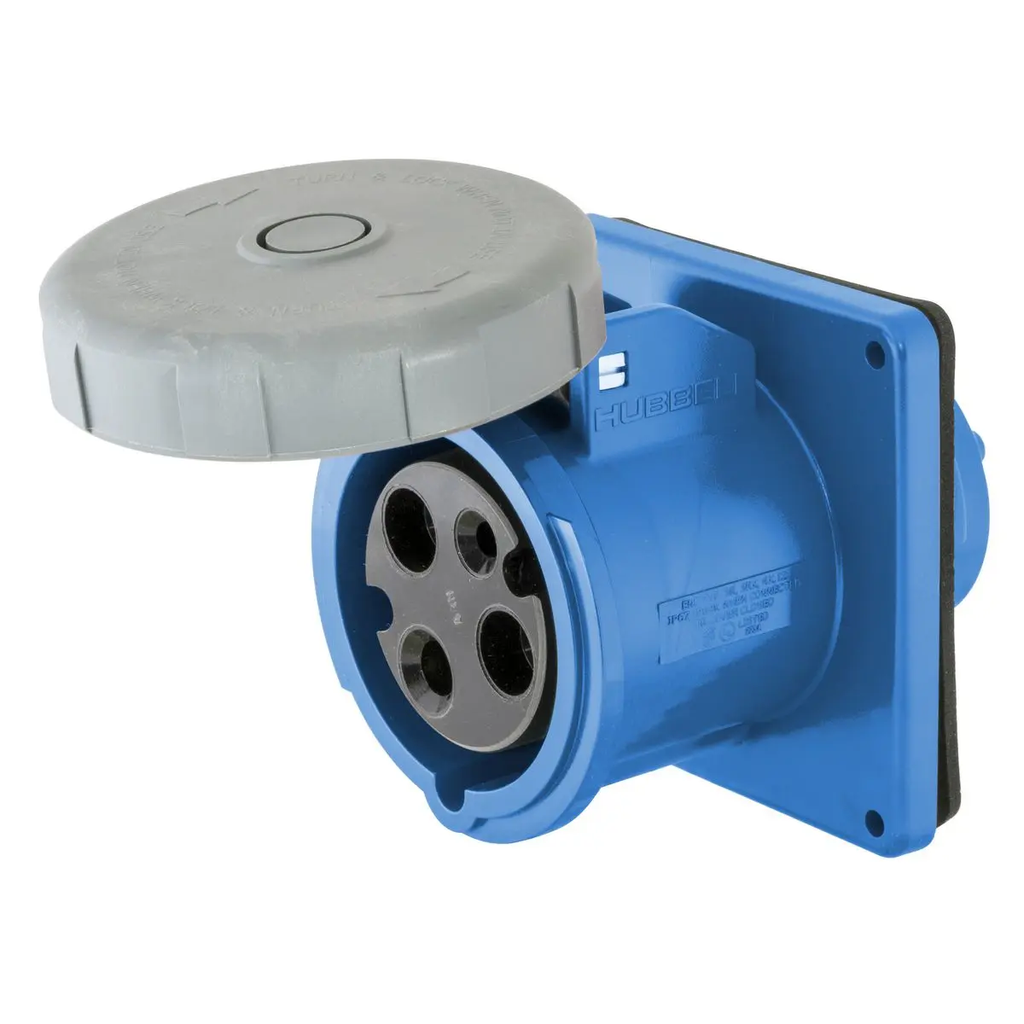

HBL330R6W
HBL330R6W is a heavy-duty, watertight IEC 60309 pin and sleeve receptacle rated for 30 amps and 250 volts AC with 2 poles and 3 wires.This Hubbell receptacle features a thermoplastic housing with a reinforced thermoset polyester contact carrier, providing high resistance to electrical tracking and durability in demanding environments. It includes a corrosion-resistant self-closing gasketed cover, pressure terminal screws, and an external cord grip for superior strain relief. The device is UL/cUL listed, CSA certified, and meets NEC 430.109(F) requirements for horsepower rated plugs and receptacles. It is designed for screw mounting and supports wire sizes from #12 AWG to #8 AWG.
- Key Specifications
- Amperage: 30 A
- Voltage: 250 VAC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Screw Mounting
- Material: Thermoplastic housing with thermoset polyester contact carrier
- Type: Watertight Receptacle
- Connectivity: Pressure Terminal Screws
- Certifications: UL Listed, cUL Listed, CSA Certified
- Series: HBL Heavy Duty
- Temperature Rating: -40°C to 75°C continuous
- Color: Blue
Specifications
- Part Number: HBL330R6W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Pin & Sleeve
- Voltage : 250 250
Product Data
- UPC : 783585403625
- GTIN : 0783585403625
- Dimensions : 3.75 in W x 4.27 in H 4.27 in H x 3.75 in W
- Weight : 5.19
