- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
HBL320R7W

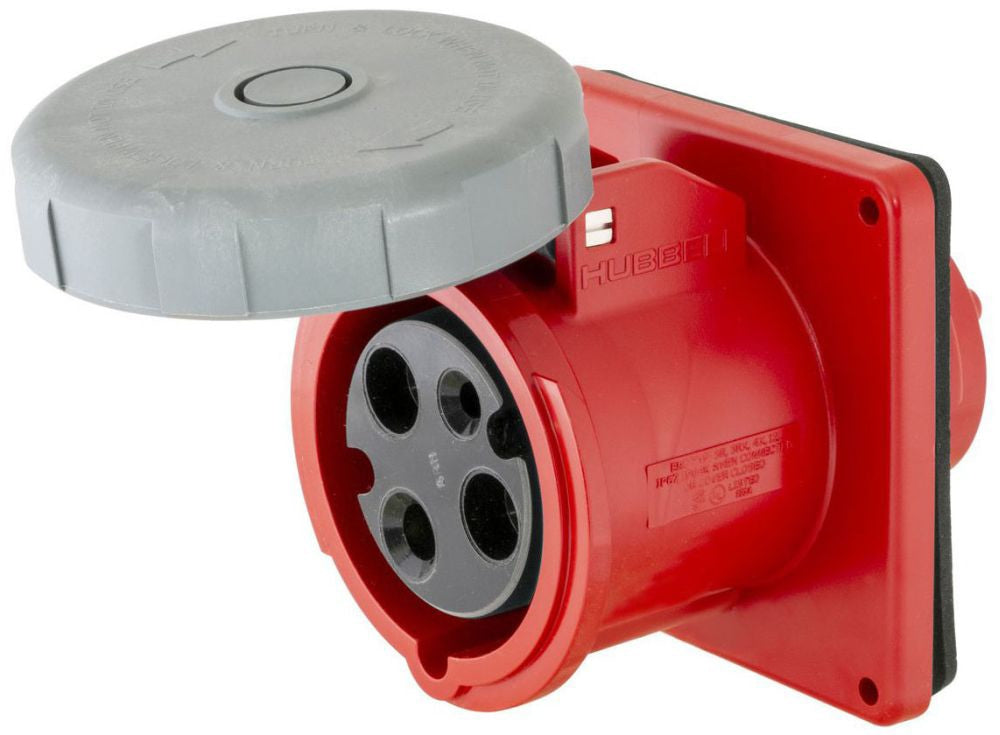

HBL320R7W is a 20 amp, 480 volt, 2-pole 3-wire watertight IEC pin and sleeve receptacle by Hubbell.
This heavy-duty industrial grade receptacle features a rugged thermoplastic housing with a thermoset polyester contact carrier for high resistance to electrical tracking and temperature. It is designed for demanding North American applications, providing watertight protection with an IP67 rating and UL Type 4X, 12, and IP69k environmental ratings. The device includes pressure terminal screws for secure wiring and a self-closing gasketed cover for added protection. It supports wire sizes from #14 AWG to #10 AWG and is screw mounted for installation.
- Amperage Rating: 20 A
- Voltage Rating: 480 VAC
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Mounting Type: Screw Mounting
- Material: Thermoplastic housing with thermoset polyester contact carrier
- Watertight Rating: IP67, UL Type 4X, 12, IP69k
- Connection Type: Pressure Terminal Screws
- Wire Size Range: #14 AWG to #10 AWG
- Color: Red
- Industry Standard: IEC 60309 compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL320R7W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 480 480
Product Data
- UPC : 783585403458
- GTIN : 0783585403458
- Dimensions : 3-3/4 in L x 3-3/4 in W
- Weight : 0.5
