HBL320R6W - Hubbell 20A 250V 2-Pole 3-Wire Watertight IEC Pin and Sleeve Receptacle

HBL320R6W

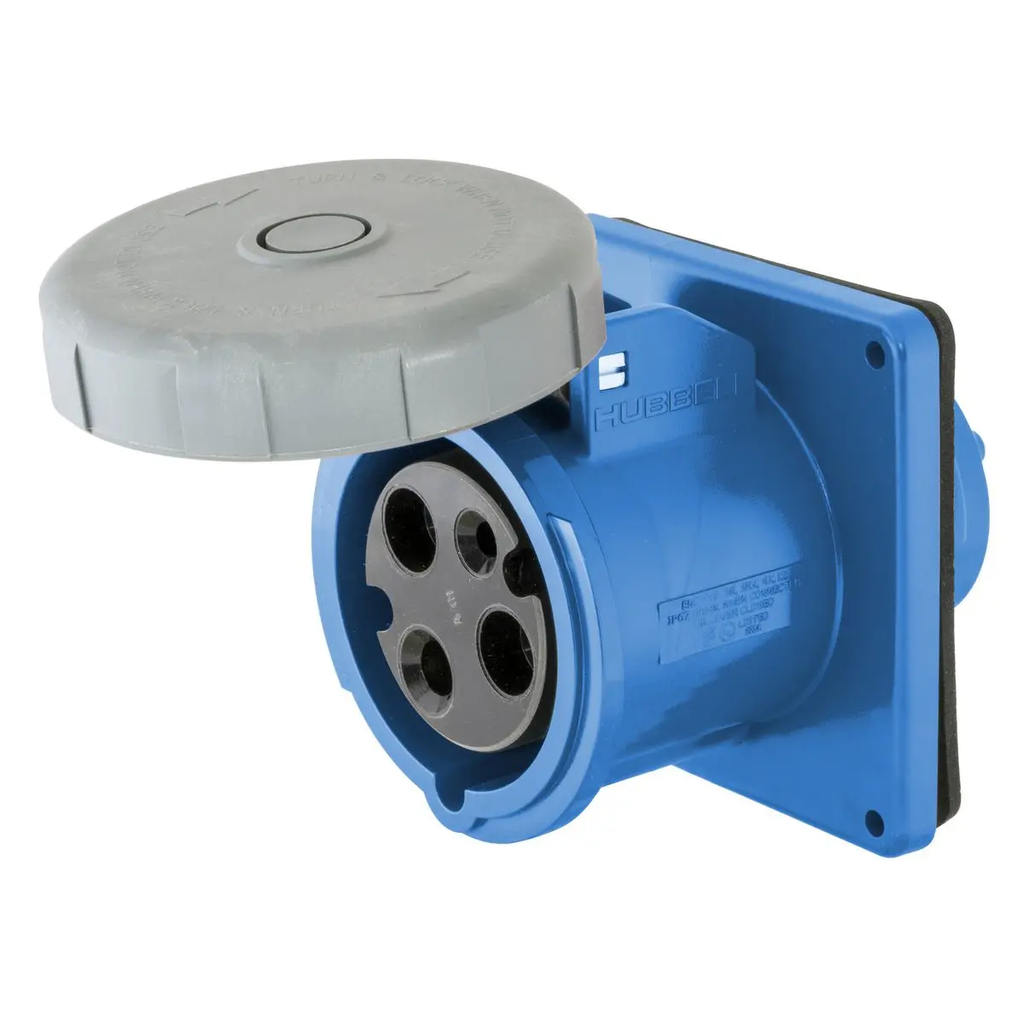

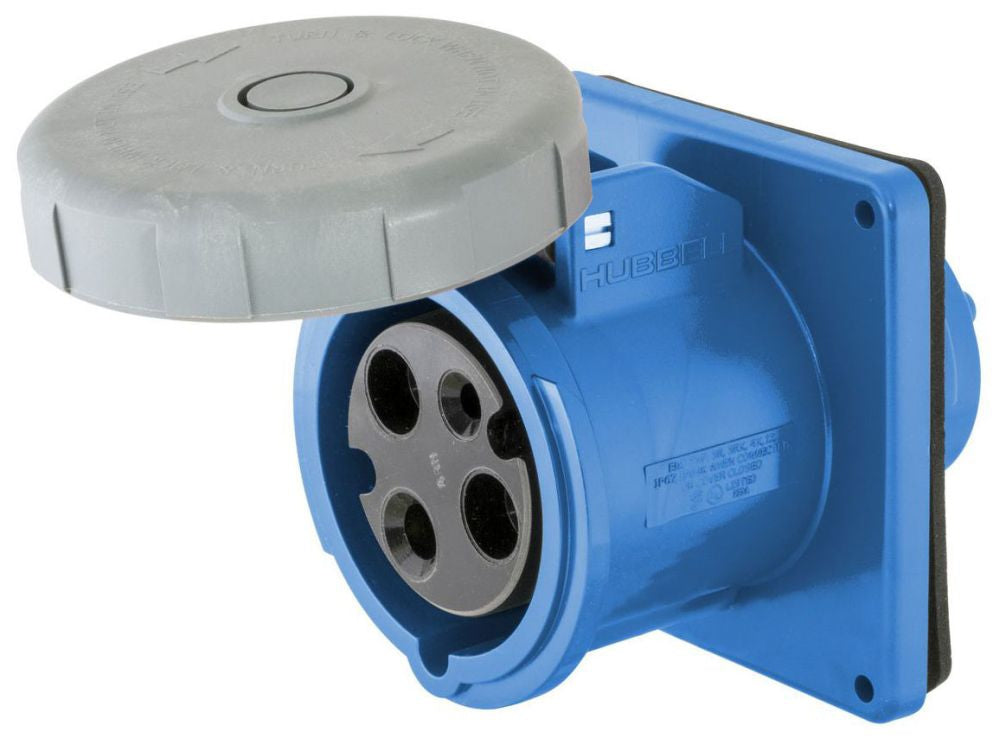

HBL320R6W is a 20 amp, 250 volt, 2-pole, 3-wire watertight IEC pin and sleeve receptacle from Hubbell.HBL320R6W features a rugged thermoplastic housing with screw mounting and pressure terminal screws for secure wiring. It meets NEC 430.109(F) requirements as an approved disconnecting means and is designed for high ampacity watertight connections in demanding industrial environments. This device is UL/cUL listed and CSA certified, with a dielectric voltage rating of 3000V AC and a current interrupting rating at full load. The blue color identifies it as a non-NEMA standard device suitable for single-phase applications.

Key Specifications
• Amperage Rating: 20 A
• Voltage Rating: 250 VAC
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Mounting Type: Screw Mounting
• Material: Thermoplastic
• Connectivity: Pressure Terminal Screws
• Watertight: Yes
• Certifications: UL/cUL Listed, CSA Certified
• Dielectric Voltage: 3000V AC
• Compliance: NEC 430.109(F)
• Color: Blue

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL320R6W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Locking Devices
• Voltage : 250 250

Product Data

• UPC : 783585403434
• Dimensions : 3.33 in H x 3.75 in W x 2.78 in D 3.75 in W x 2.78 in D x 3.33 in H
• Weight : 5.19
