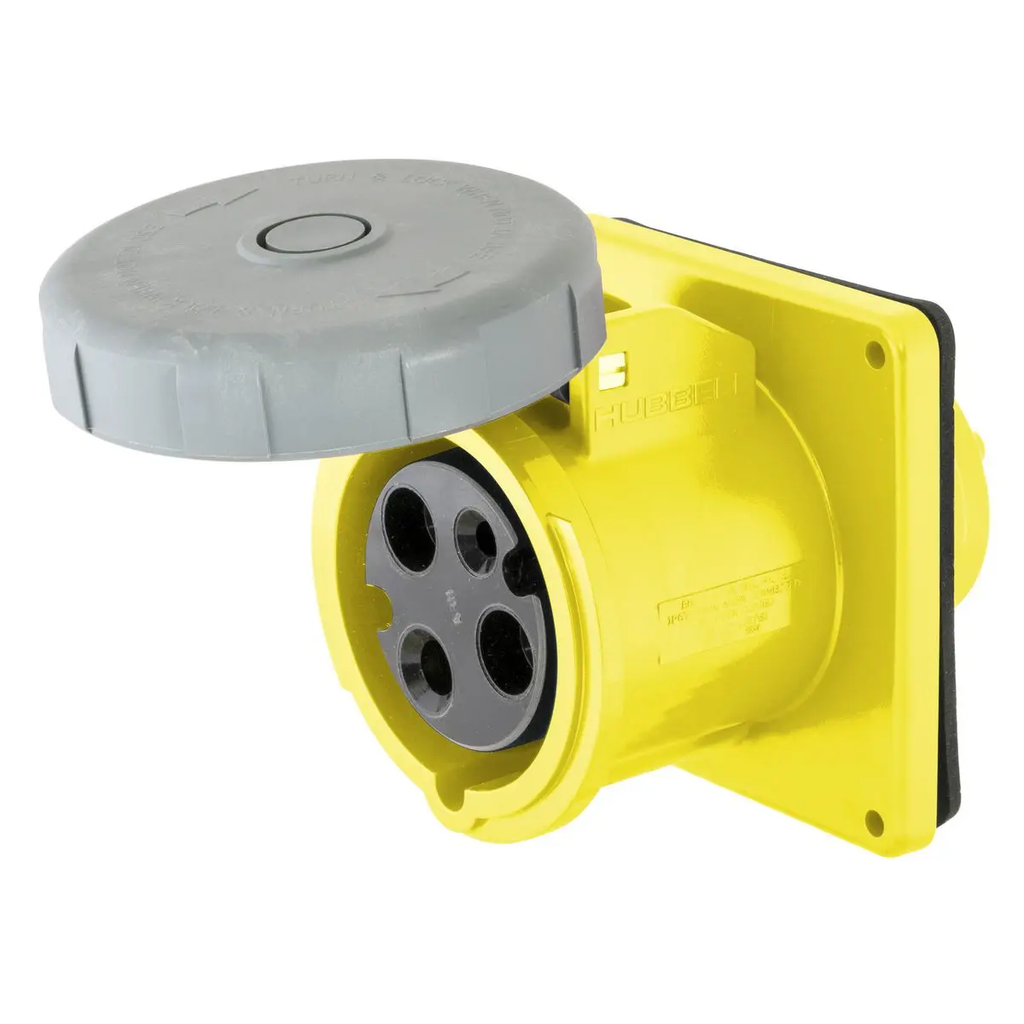

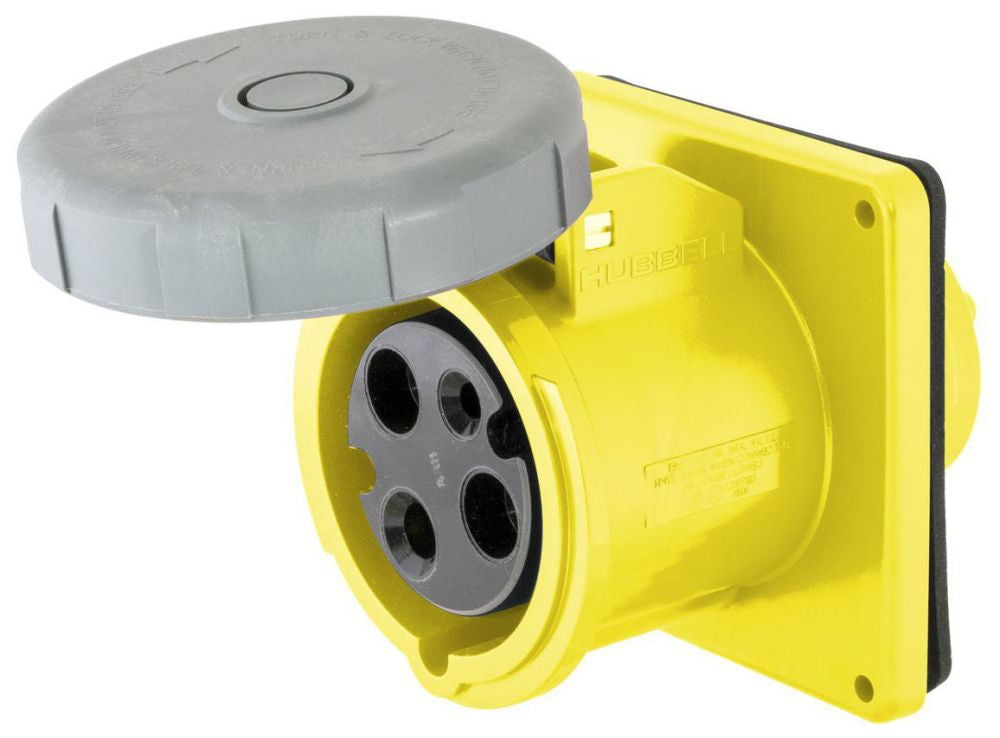

HBL320R4W - Hubbell 20A 125V 2-Pole 3-Wire Watertight Pin and Sleeve Flanged Receptacle

HBL320R4W

HBL320R4W is a Hubbell 20A 125V 2-pole 3-wire watertight pin and sleeve flanged receptacle designed for secure industrial electrical connections. This rugged receptacle features a thermoplastic housing and pressure terminal screws for reliable performance in demanding environments. Hubbell HBL320R4W is part of the IEC 60309 series, offering a watertight, single-phase connection with superior strain relief and high resistance to electrical tracking. The device is suitable for applications requiring a line-of-sight disconnect and meets NEC 430.109(F) requirements. It is certified for current interrupting at full rated current and features a dielectric voltage rating of 3000V AC.

• Amperage: 20A
• Voltage: 125V AC
• Poles: 2-Pole
• Wires: 3-Wire
• Mounting Type: Screw Mounting
• Interrupt Rating: Full rated current
• Series/Frame: IEC 60309
• Dielectric Voltage: 3000V AC
• Wire Size: #14 AWG to #10 AWG
• Color: Yellow
• Certifications: UL 498, IEC 309-1, IEC 309-2
• Application: Industrial, Watertight

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL320R4W
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Locking Devices
• Voltage : 125 125

Product Data

• UPC : 783585403427
• GTIN : 783585403427
• Dimensions : 3.33 in W x 3.75 in H 3.75 in H x 3.33 in W
• Weight : 5.19
