2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL320C6W

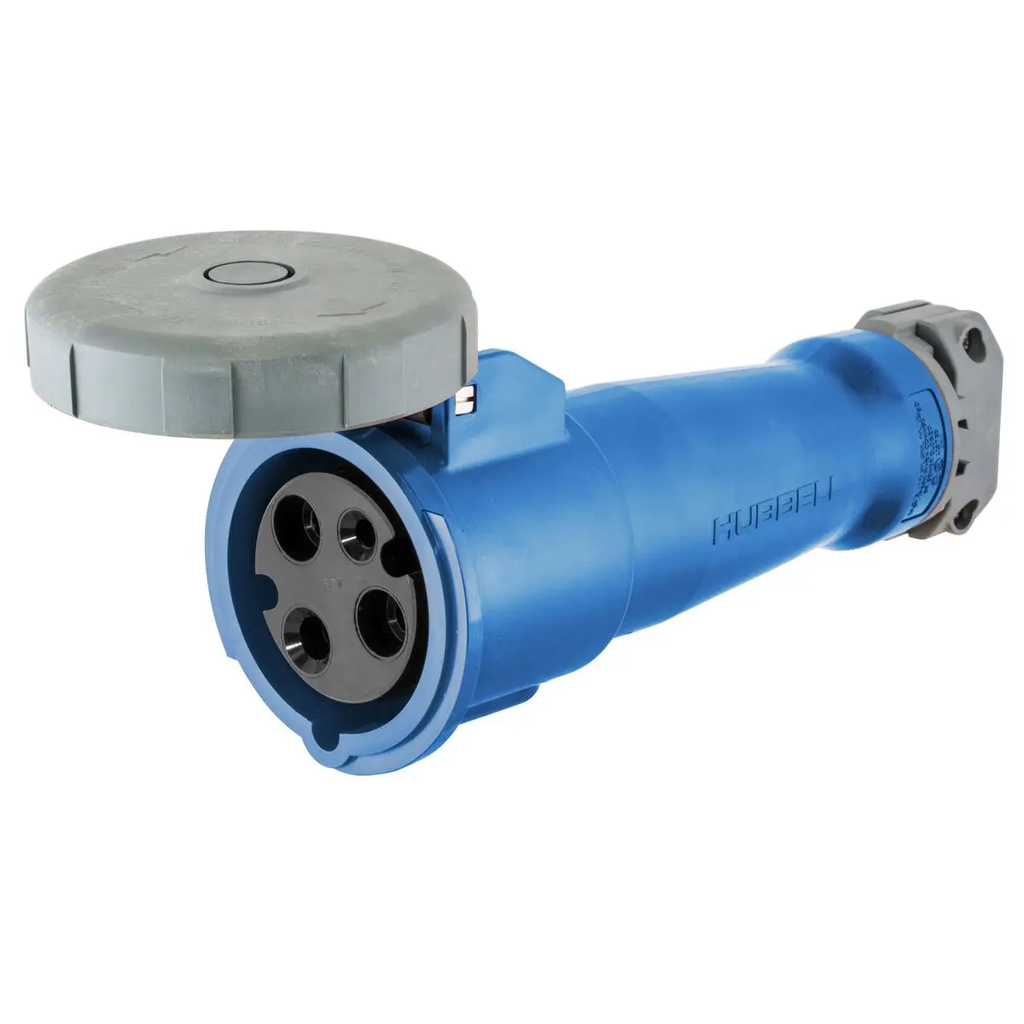

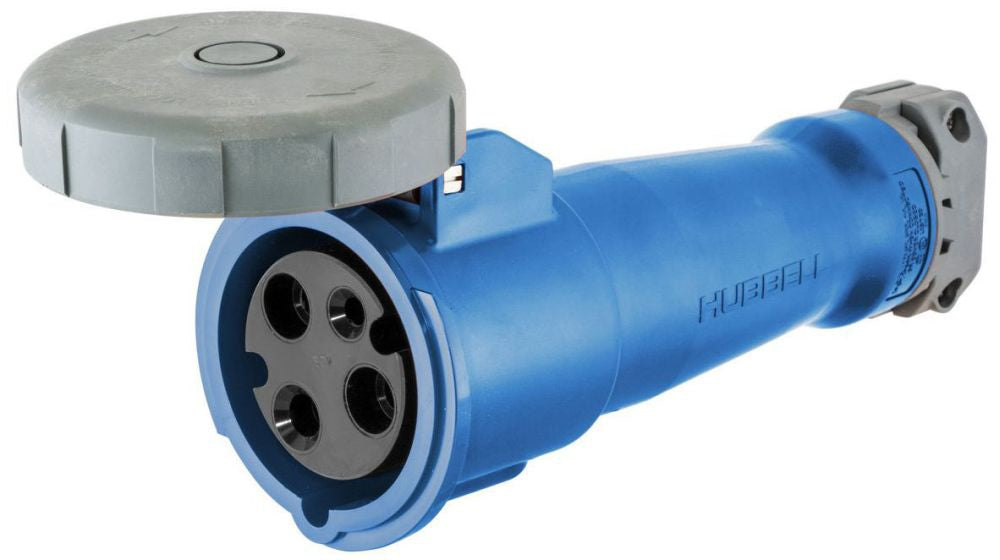

HBL320C6W is a Hubbell IEC Pin and Sleeve Connector designed for heavy-duty industrial applications requiring watertight connections.This 2-pole, 3-wire connector is rated for 20 amps and 250 volts AC, featuring a blue insulated composite body for durability and corrosion resistance. It supports conductor sizes from 14 to 10 AWG and uses pressure screw terminals for secure wiring. The connector meets IEC 60309-1 and IEC 60309-2 standards and is UL 498 listed, offering reliable performance in harsh environments with an IP67 watertight rating and temperature range from -40°C to 75°C.
- Key Specifications
- Amperage: 20 A
- Voltage: 250 V AC
- Poles: 2
- Wires: 3 (including ground)
- Conductor Size: 14 - 10 AWG
- Connection Type: Pressure Screw Terminal
- Mounting Type: Cord Mounted
- Material: Composite/Nylon Insulated Body
- Standards: IEC 60309-1, IEC 60309-2, UL 498
- IP Rating: IP67 Watertight
- Temperature Rating: -40°C to 75°C
- Color: Blue
- Part Number: HBL320C6W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 250 250
- UPC : 783585403335
- GTIN : 00783585403335
- Dimensions : 7.49 in L x 3.33 in H
- Weight : 5.19
