Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
HBL320B6W

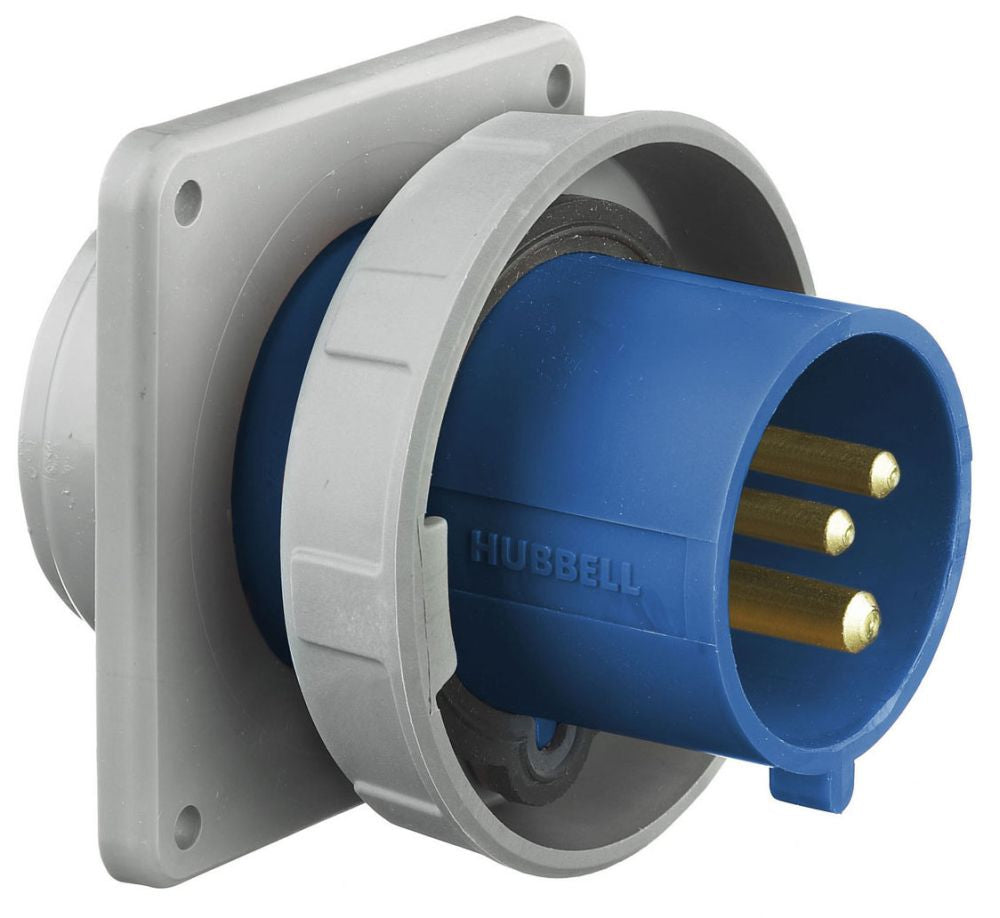

HBL320B6W is a heavy-duty, watertight IEC pin and sleeve flanged inlet rated for 20 amps and 250 volts by Hubbell.This industrial-grade inlet features a 2-pole, 3-wire grounding configuration with a rugged one-piece housing and thermoset contact carrier. It is designed for screw mounting and suitable for wire sizes 14 AWG to 10 AWG. The device is CSA certified and rated for operation in temperatures from -40°C to 75°C, making it ideal for harsh environments requiring reliable power connections.
- Amperage: 20A
- Voltage: 250V AC
- Poles: 2
- Wires: 3 (including ground)
- Mounting Type: Flanged, screw mount
- Material: Thermoplastic housing with brass contacts
- Watertight rating: Yes, IP67 equivalent
- Temperature Range: -40°C to +75°C
- Wire Size Range: 14 AWG to 10 AWG
- Certifications: CSA Certified, File E146032, File LR280C
- Phase: Single-phase
Specifications
- Part Number: HBL320B6W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 250 250
Product Data
- UPC : 783585403281
- GTIN : 00783585403281
- Dimensions : 3-3/4 in H x 3-3/4 in W 3-3/4 in W x 3-3/4 in H
- Weight : 1
