2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBL3100P6W

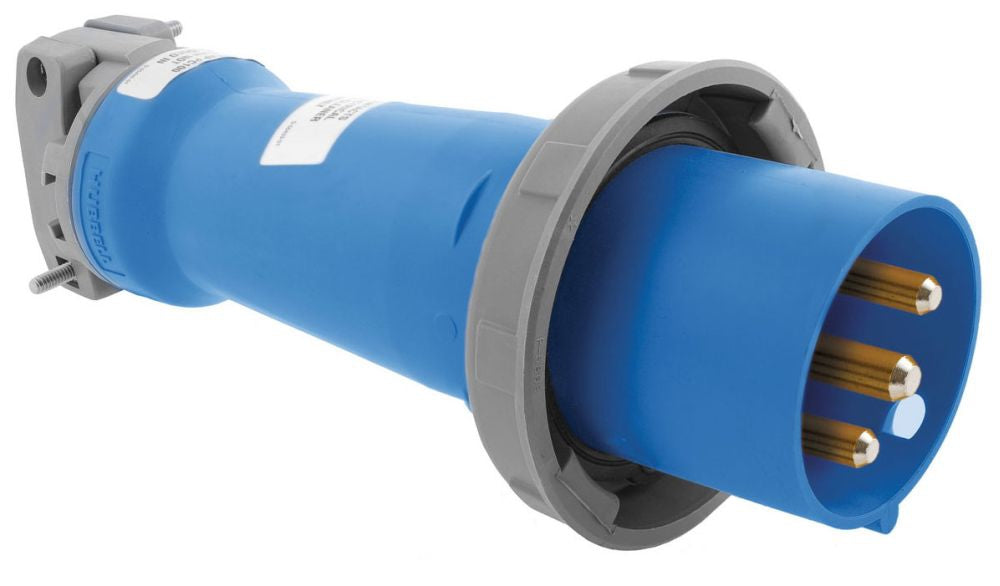

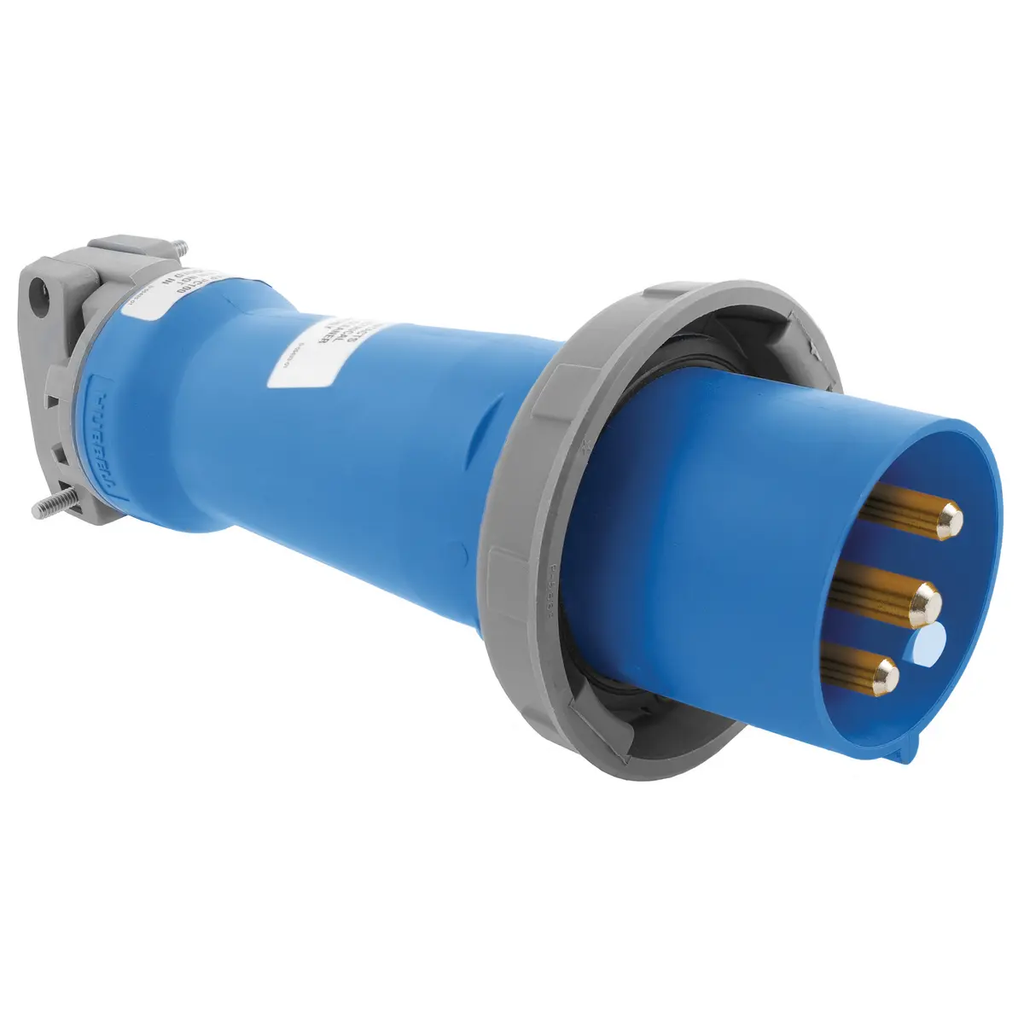

HBL3100P6W is a Hubbell 100 amp, 250 VAC, 2-pole 3-wire watertight pin and sleeve male plug designed for heavy-duty industrial applications.This standard-sized IEC 60309 compliant plug features a rugged composite housing with pressure screw terminal connections and is cord-mounted for portable use. It supports conductor sizes from #3 AWG to 1/0 AWG and meets UL 498 and IEC 309-1, 309-2 standards. The device is color-coded blue for 250 VAC and provides watertight protection suitable for harsh environments. It is recognized as an approved disconnecting means per NEC 430.109(F).
- Key Specifications
- Amperage: 100 A
- Voltage: 250 VAC
- Poles: 2
- Wires: 3 (including ground)
- Mounting Type: Cord Mounted
- Terminal Connection: Pressure Screw
- Material: Composite Housing
- Environmental Rating: Watertight (IEC 60309 compliant)
- Standards: UL 498, IEC 309-1, IEC 309-2
- Phase: Single Phase
- Color: Blue
- Conductor Size Range: #3 AWG to 1/0 AWG
Specifications
- Part Number: HBL3100P6W
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 250 250
Product Data
- UPC : 783585403083
- GTIN : 00783585403083
- Dimensions : 4.92 in Dia x 12.63 in L
- Weight : 5.19
