Product Info
- Manufacturer:Hubbell
- Sub-Category:Plugs Recep
Description
HBL303SS

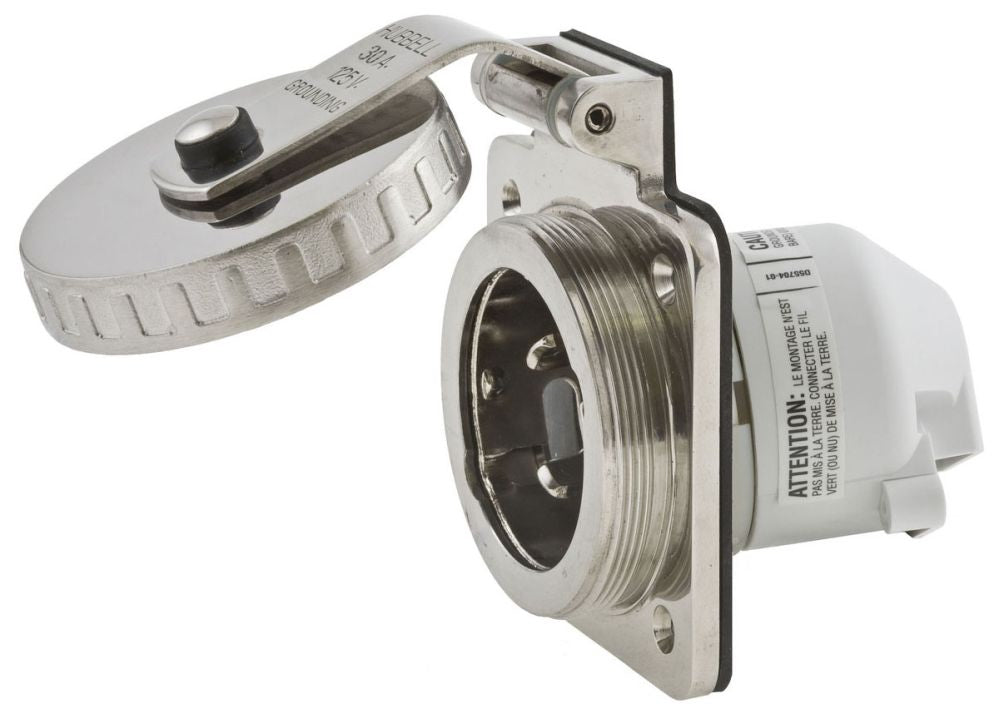

HBL303SS is a marine grade, stainless steel twist-lock hull inlet designed for 30 amp, 125 volt applications.
This Hubbell Wiring Device-Kellems product features a 2-pole, 3-wire grounding configuration with a NEMA L5-30P rating. It is constructed with a thermoplastic insulated body and stainless steel mounting hardware, providing corrosion resistance and watertight performance suitable for marine environments. The device supports wire sizes from 12 AWG to 10 AWG and includes pressure terminal screws for secure connections. It is UL listed and rated for continuous operation from -40°C to 75°C without impact, with a dielectric strength of 3000V minimum.
- Key Specifications
- Amperage Rating: 30 A
- Voltage Rating: 125 VAC
- Number of Poles: 2
- Number of Wires: 3-Wire Grounding
- NEMA Configuration: L5-30P
- Mounting Type: Screw Hull Mount
- Material: Thermoplastic body, Stainless Steel hardware
- Environmental Rating: Watertight, IP56 suitability
- Temperature Rating: -40°C to 75°C continuous
- Connection Type: Pressure Terminal Screws
- Dielectric Strength: Withstands 3000V minimum
- EU RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HBL303SS
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Family : HBL
- Voltage : 125 125
Product Data
- UPC : 783585040523
- GTIN : 00783585040523
- Dimensions : 3.28 in W x 4.08 in H 4.08 in H x 3.28 in W
- Weight : 5.19
