Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2823

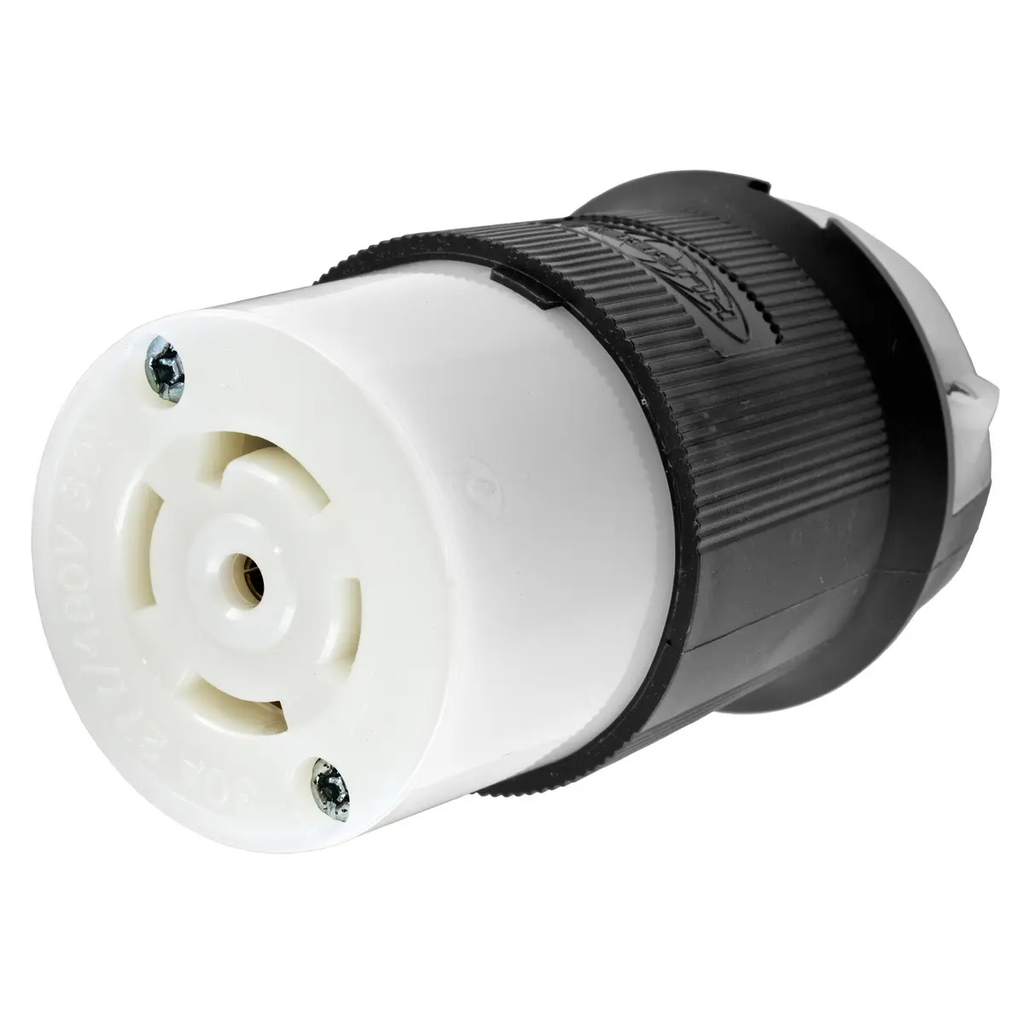

HBL2823 is a 30 Amp, 277/480 VAC, 4-pole, 5-wire NEMA L22-30R locking connector body by Hubbell. It features a durable nylon housing designed for industrial power connections.
This connector is rated for 30 amps and 3-phase WYE 277/480 VAC applications. It has a 4-pole, 5-wire configuration with pressure terminal screws for secure wiring. The body is made of impact- and chemical-resistant nylon with a ribbed grip and integral dust shield. It supports wire sizes from #16 AWG to #8 AWG and cord diameters from 0.350 to 1.150 inches. The connector withstands dielectric strength of 2000V minimum and operates in temperatures from -40°C to 75°C. It meets UL 498 and CSA C22.2 standards and is RoHS compliant.
- Key Specifications
- Amperage Rating: 30 A
- Voltage Rating: 277/480 VAC 3-Phase WYE
- Number of Poles: 4
- Number of Wires: 5
- Material: Nylon (Polyamide) Body
- Mounting Type: Cord Mounted
- Terminal Type: Pressure Terminal Screws
- NEMA Rating: L22-30R
- Cord Diameter Range: 0.350 - 1.150 in
- Wire Size Range: #16 AWG to #8 AWG
- Operating Temperature: -40°C to 75°C
- Certifications: UL 498, CSA C22.2, RoHS Compliant
- Part Number: HBL2823
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Voltage : 277/480Y
- UPC : 783585039701
- GTIN : 00783585039701
- Dimensions : 2.33 x 2.33 x 3.86 in 3.84 in L x 2.22 in W
- Weight : 5.19
