Description
HBL2813

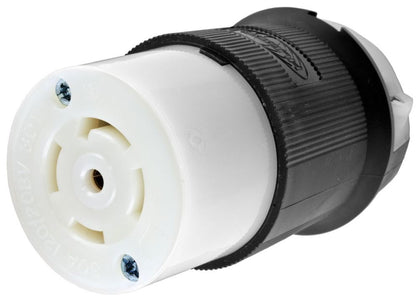

HBL2813 is a 30A, 3-phase, 120/208V AC, 4-pole, 5-wire grounding connector body from Hubbell, designed for industrial applications requiring secure and reliable power connections. This Insulgrip® connector features a ribbed nylon housing for secure grip, impact resistance, and chemical resistance. The superior cord grip design protects terminations from excess strain, while the clear, funnel-shaped wire entry simplifies termination. An integral dust shield safeguards the wiring chamber from dust and contaminants. The connector is suitable for stranded copper wire sizes #16 AWG to #8 AWG and is rated for indoor dry environments unless protected by additional means.
- Amperage Rating: 30A
- Voltage Rating: 120/208V AC
- Phase: 3-Phase WYE
- Poles: 4-Pole
- Wires: 5-Wire Grounding
- Mounting Type: Cord Mounted
- Wire Size: #16 AWG to #8 AWG stranded copper
- Dielectric Strength: 2,000V minimum
- Terminal Type: Pressure Terminal Screws
- Material: Nylon housing, brass contacts
- Operating Temperature: -40°C to 75°C
- Industry Standard: NEMA L21-30R
- Certifications: UL 498, CSA C22.2 No.42, Fed.Spec. W-C-596
- Environmental: Indoor dry unless protected by additional means
Specifications
- Part Number: HBL2813
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Protection : Solid State
- Compatible Frames : SSD,SHD,SSF,SHF
Product Data
- UPC : 783585039657
- GTIN : 783585039657
- Weight : 0.4
