Product Info
- Manufacturer:Hubbell
Description
HBL27CM21

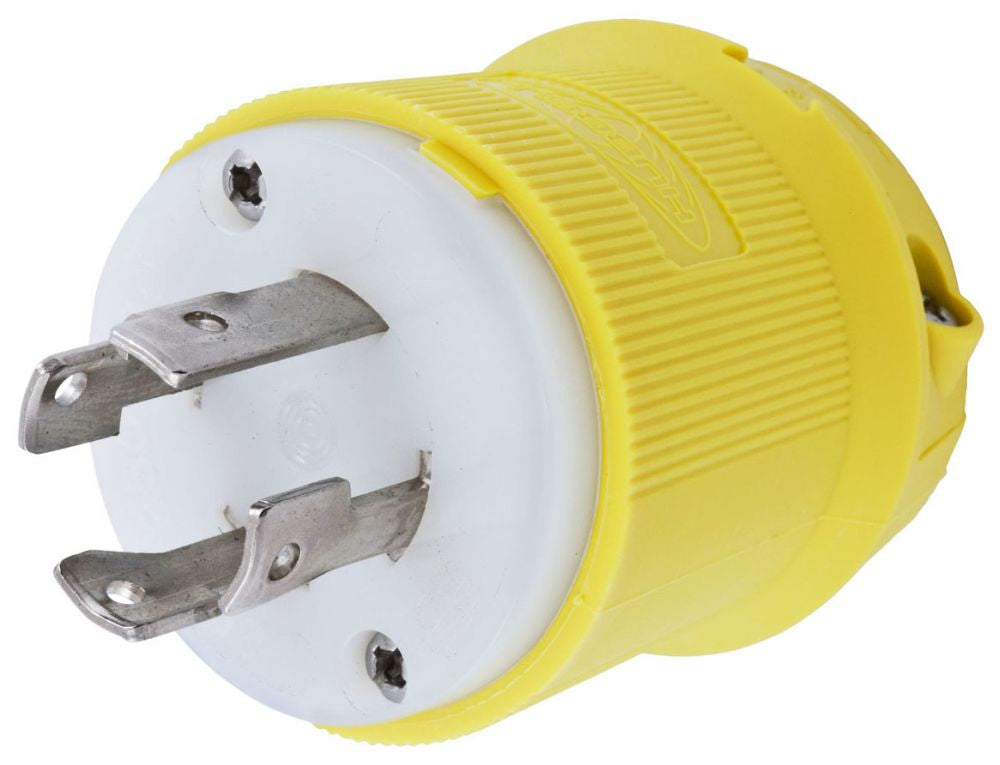

HBL27CM21 is a Twist-Lock marine grade locking plug designed for corrosion-resistant industrial and marine applications requiring reliable power distribution. This male plug features nickel-plated blades and stainless steel screws that provide maximum corrosion resistance, combined with a ribbed nylon Insulgrip housing for secure grip and impact and chemical resistance. The integral dust shield protects the wiring chamber from dust and contaminants, while the superior cord grip design protects terminations from excess strain. Key Specifications
- Amperage Rating: 30A
- Voltage: 3-Phase 250V AC
- Configuration: 3-Pole, 4-Wire Grounding
- NEMA Rating: L15-30P
- Housing Material: Yellow Nylon
- Blade Material: Nickel Plated Brass
- Terminal Screws: #10-32 Bronze (Phillips/Slotted/Robertson)
- Wire Accommodation: #16 AWG to #8 AWG Stranded Copper
- Dielectric Voltage: Withstands 2,000V Minimum
- Operating Temperature: -40°C to 75°C Maximum Continuous
- Certifications: UL 498, CSA C22.2 No.42, Fed. Spec. W-C-596
- Cord Diameter Range: 0.350 to 1.150 inches
Specifications
- Part Number: HBL27CM21
- Manufacturer : Hubbell
- Brand : Hubbell
Product Data
- UPC : 78358503957
- GTIN : 00783585039572
- Weight : 0.4
