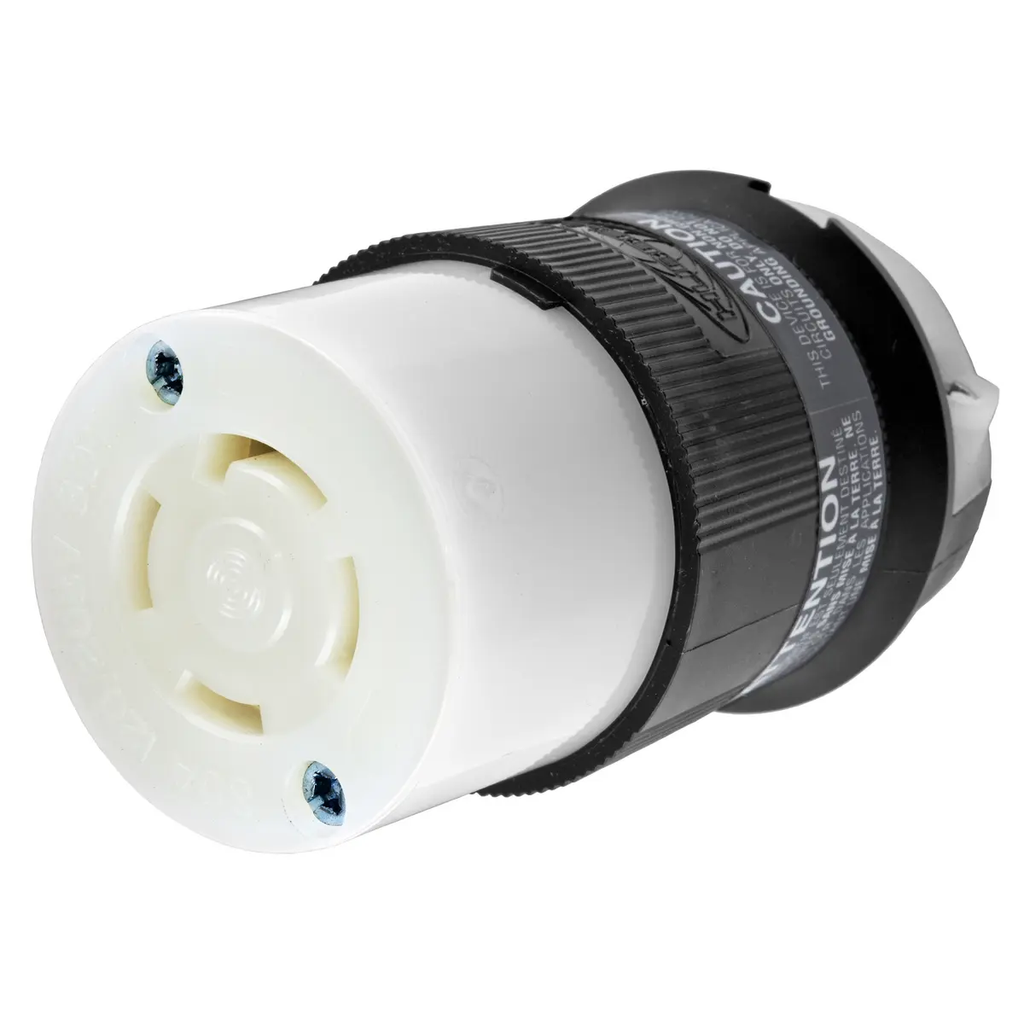

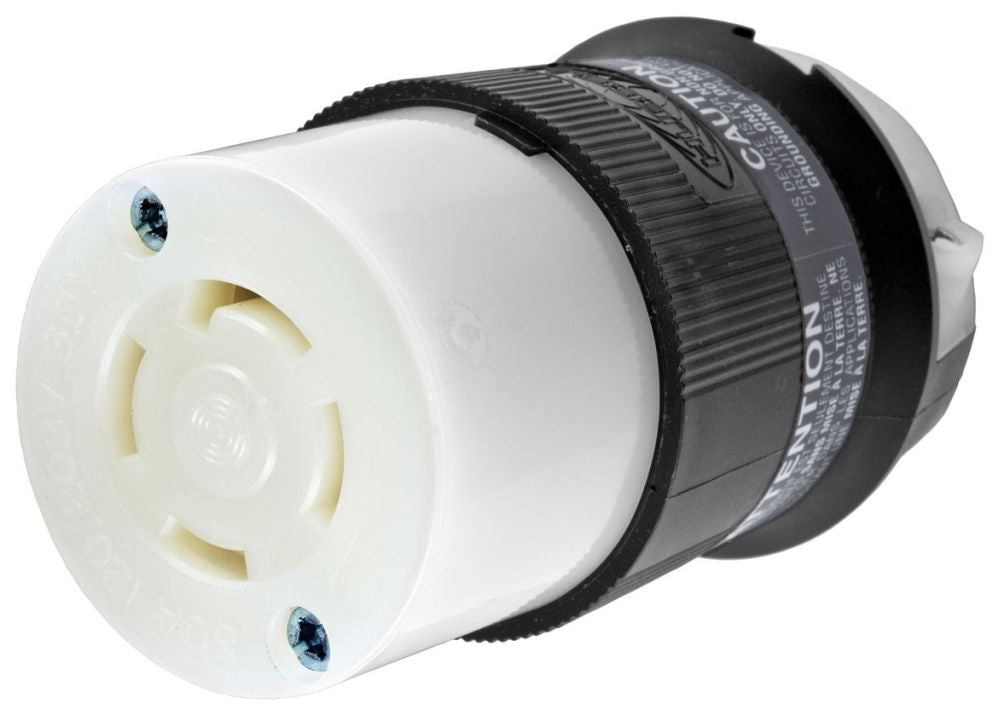

HBL2753 - Hubbell 30A 120/208V 4-Pole 4-Wire Non-Grounding Twist-Lock Female Connector

HBL2753

HBL2753 is a 30 amp, 120/208V 3-phase WYE, 4-pole, 4-wire non-grounding female twist-lock connector from Hubbell.This heavy-duty industrial connector features a ribbed nylon Insulgrip® housing for secure grip, impact and chemical resistance, and a superior cord grip design that protects terminations from strain. It is rated for indoor dry environments and withstands continuous temperatures from -40°C to 75°C. The connector uses pressure terminal screws for wiring and meets UL 498, CSA C22.2 No. 42, and Federal Specification W-C-596 standards. It is designed for cable diameters from 0.350 to 1.150 inches and wire sizes #16 AWG to #8 AWG. The connector is rated for dielectric strength of 2,000V minimum and is RoHS compliant.

Key Specifications
• Amperage: 30 A
• Voltage: 120/208 VAC, 3-Phase WYE
• Poles: 4
• Wires: 4
• Mounting Type: Cord Mounted
• Material: Ribbed Nylon Insulgrip® Housing
• Terminal Type: Pressure Terminal Screws
• Environmental Rating: Indoor Dry
• Temperature Range: -40°C to 75°C
• Standards: UL 498, CSA C22.2 No. 42, Fed Spec W-C-596, RoHS Compliant
• NEMA Rating: L18-30R
• Cable Range: 0.350" to 1.150" diameter

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HBL2753
• Manufacturer : Hubbell
• Brand : Hubbell
• Category : Conduit & Fittings
• Item Subcategory : Twist-Lock
• Voltage : 120Y/208

Product Data

• UPC : 783585039442
• GTIN : 00783585039442
• Dimensions : 2.33 x 2.33 x 3.86 2.33 x 2.33 x 3.86 in 3.86 in L x 2.21 in W x 2.33 in H
• Weight : 0.4
