Product Info
- Manufacturer:Hubbell
- Sub-Category:Twist-Lock
Description
HBL2750

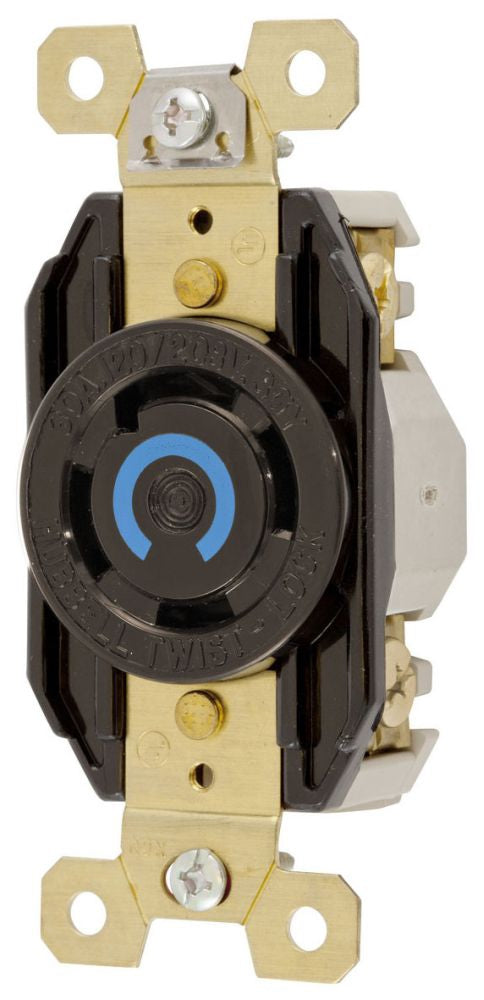

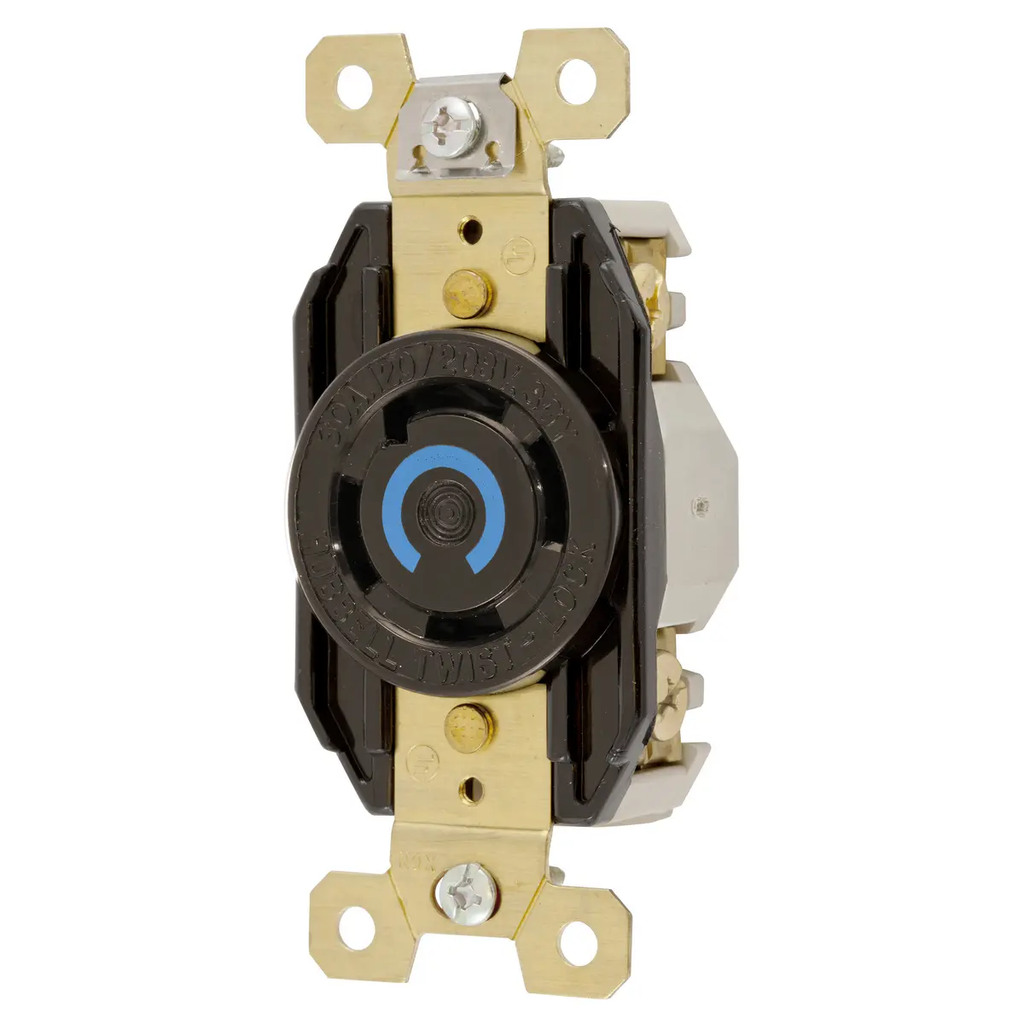

HBL2750 is a Hubbell 30 Amp, 120/208 Volt, 4-Pole 4-Wire Twist-Lock Receptacle designed for industrial electrical connections.HBL2750 features a NEMA L18-30R configuration with a black nylon housing and brass contacts. It is rated for 30 amps at 120/208 volts AC in a 3-phase wye system. The device is non-grounding with screw terminal connections and is certified for current interrupting at full rated current. It withstands dielectric voltage of 2,000 volts minimum, ensuring durability and safety in demanding environments.
- Key Specifications
- Amperage: 30 A
- Voltage: 120/208 V AC
- Poles: 4-Pole
- Wires: 4-Wire
- Configuration: NEMA L18-30R
- Housing Material: Black Nylon
- Contacts: Brass
- Mounting Type: Flush Receptacle
- Termination: Screw Terminal
- Certifications: UL Listed, CSA Approved
- Current Interrupting Certified
- Dielectric Voltage Withstand: 2,000 V minimum
Specifications
- Part Number: HBL2750
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Twist-Lock
- Voltage : 120/208Y
Product Data
- UPC : 783585236193
- GTIN : 783585236193
- Dimensions : 3.28 in H x 1.7 in W x 1.23 in D 3.28 x 1.7 x 1.31 in
- Weight : 0.3
